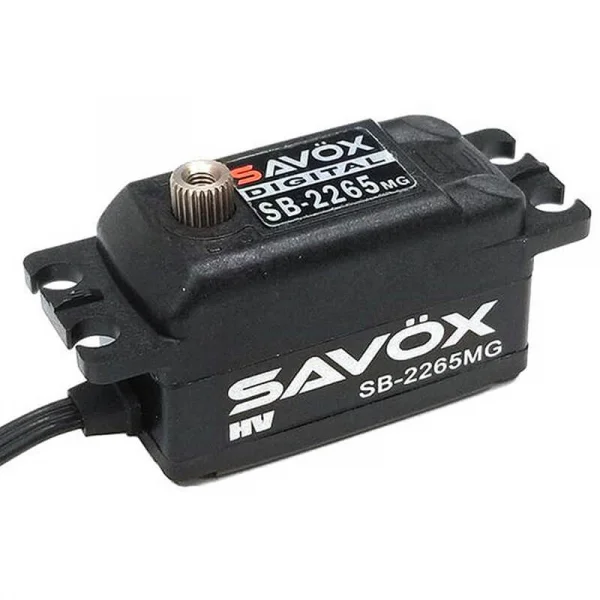

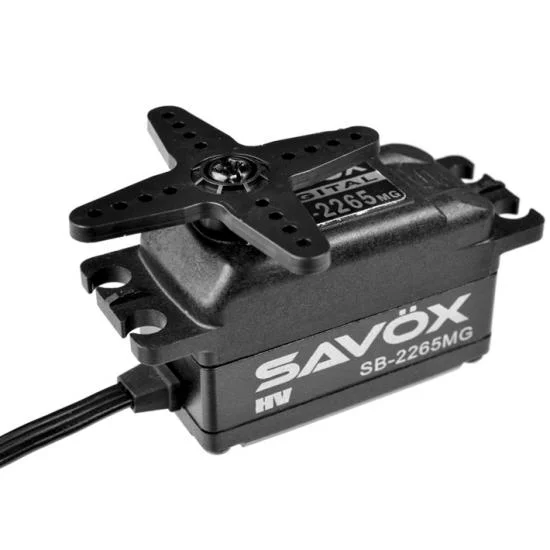

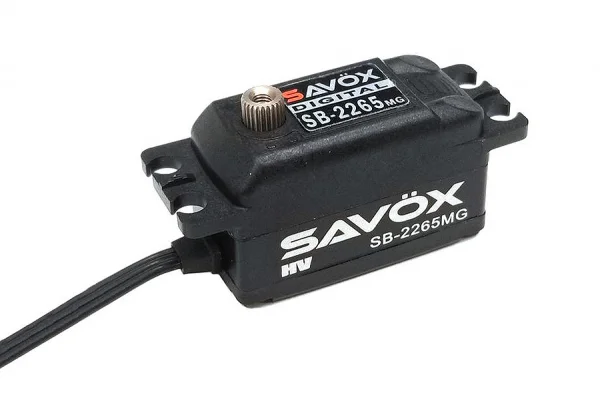

Savox SB2265MG Low Profile Brushless HV Servo 12kg 0.08s

Brand: Savox

Part No: SAV-SB2265MG


THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.

PLEASE SEE ITEM #SAV-SB2265MG+ AS A REPLACEMENT

Frequently Bought With

Other items customers often buy with the Savox Low Profile Brushless HV MG Servo - 12Kg - 0.08S - Black

Schumacher Mezzo Rear 1:10 Buggy Tyres - Yellow - Pre-Glued (2) Schumacher Mezzo Rear 1:10 Buggy Tyres - Yellow - Pre-Glued (2)
£18.52
Centro 2S 5000mAh 7.4V 100C Hard Case Shorty LiPo Centro 2S 5000mAh 7.4V 100C Hard Case Shorty LiPo
£42.74
Futaba R304SB 4 Channel S-BUS Receiver (Integrated Antenna) Futaba R304SB 4 Channel S-BUS Receiver (Integrated Antenna)
£42.75
Team Associated RC10B6.4 Front Bulkhead [0] - Blue Aluminium Team Associated RC10B6.4 Front Bulkhead [0] - Blue Aluminium
£29.44
Fastrax Side Cutting Snip Pliers Fastrax Side Cutting Snip Pliers
£3.09
Fastrax Needle Nose Pliers Fastrax Needle Nose Pliers
£3.09
Corally 16 Piece Car Tool Set With Carry Bag Corally 16 Piece Car Tool Set With Carry Bag
£71.24
GT Power X4 Charger 4 x 100W Quad Charger GT Power X4 Charger 4 x 100W Quad Charger
£176.69
Hobbywing Xerun V10 10.5T Black G3 Motor Hobbywing Xerun V10 10.5T Black G3 Motor
£94.49
Hobbywing Xerun V10 7.5T Black G3 Motor Hobbywing Xerun V10 7.5T Black G3 Motor
£94.49
Futaba 4GRS Transmitter With R304SB Receiver Futaba 4GRS Transmitter With R304SB Receiver
£259.00
Tamiya Lexan Spray Paint - PS-49 Anodised Blue Tamiya Lexan Spray Paint - PS-49 Anodised Blue
£11.39

Description

The Savox Low Profile Brushless HV MG Servo – Black (SAV-SB2265MG) delivers fast, precise performance for compact 1/10 platforms. Optimised for 7.4V operation, it offers 12.0kg torque and a rapid 0.08 sec/60° response. A robust steel metal gear train and low-profile case help it fit tight chassis layouts, with a 25T spline for horn compatibility.

Features

  • Metal gear train ensures durability under harsh situations.
  • Ideal for 1/10 on road cars requiring a high speed servo
  • Servo Type / Size: Low Profile
  • Application: 1/10 Cars
  • Motor Type: Brushless
  • Gear Material: Steel

Specifications

  • Input Voltage (V): 7.4v
  • Torque @ 7.4V: 12.0kg/166.6oz-in
  • Speed @ 7.4V: 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.
  • Weight: 57.0g

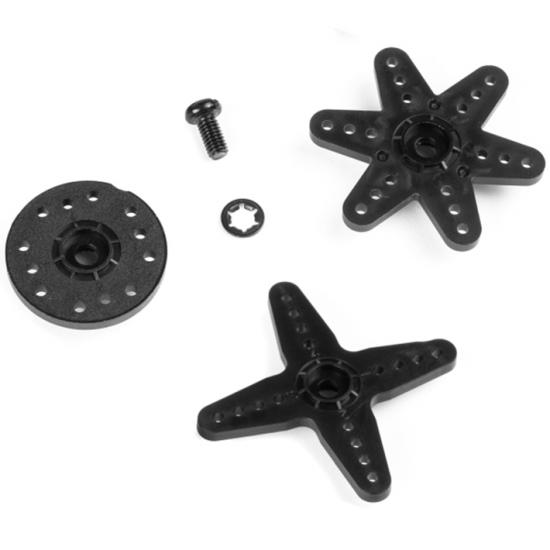

  • Servo Horn: 25 Tooth Spline

Suggested Compatibility

  • 1/10 on-road cars
  • 1/10 cars where a low-profile servo is required
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Savox Low Profile Brushless HV MG Servo - 12Kg - 0.08S - Black Manuals & Guides

Specifications

Features
  • Metal gear train ensures durability under harsh situations.
  • Ideal for 1/10 on road cars requiring a high speed servo
  • Servo Type / Size: Low Profile
  • Application: 1/10 Cars
  • Motor Type: Brushless
  • Gear Material: Steel
Specifications
  • Input Voltage (V): 7.4v
  • Torque @ 7.4V: 12.0kg/166.6oz-in
  • Speed @ 7.4V: 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.
  • Weight: 57.0g
  • Servo Horn: 25 Tooth Spline
Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

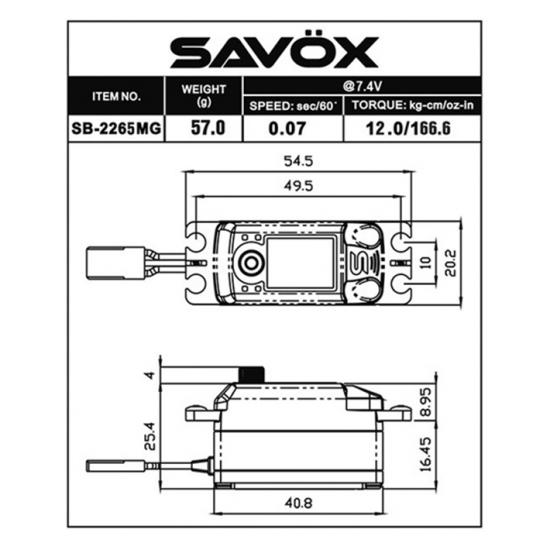

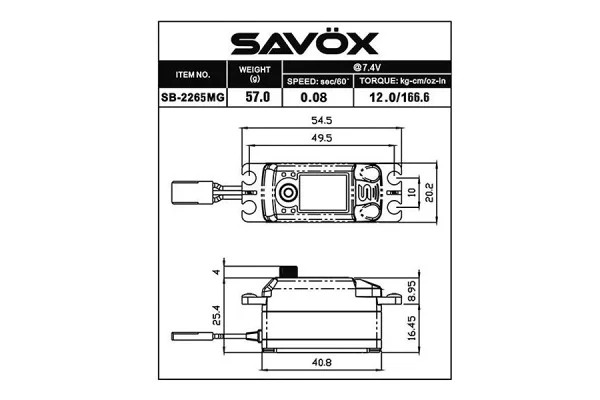

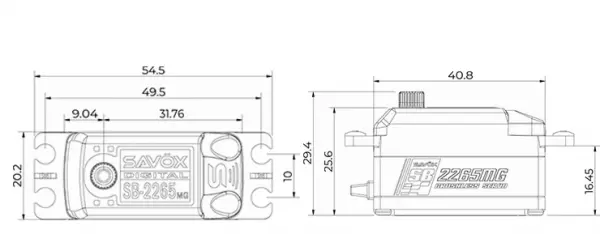

Dimensions


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.



Key Info:
  • Brand: Savox
  • Part No: SAV-SB2265MG
  • Barcode: 4710006993713
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
