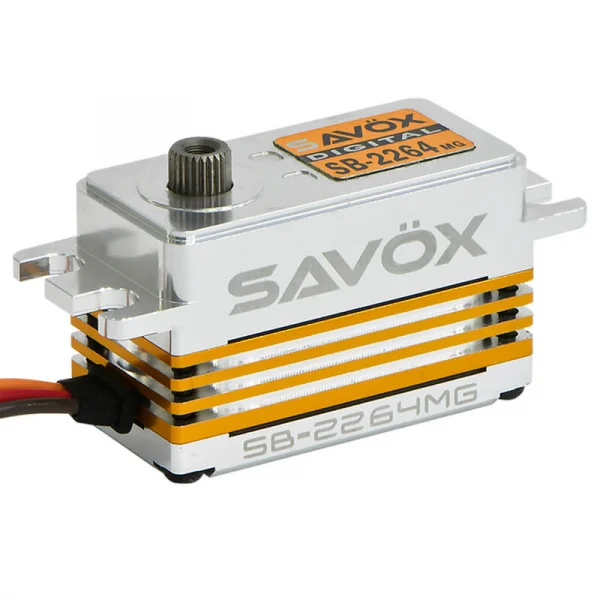

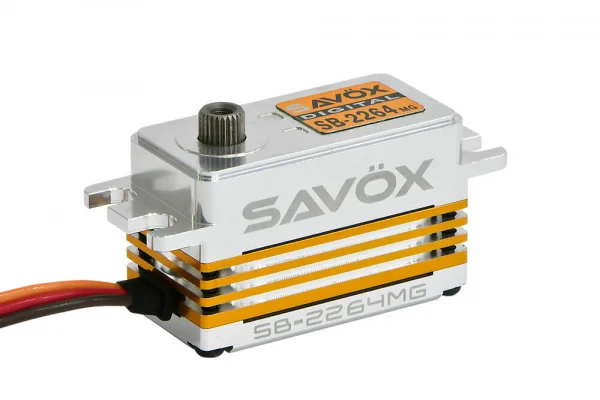

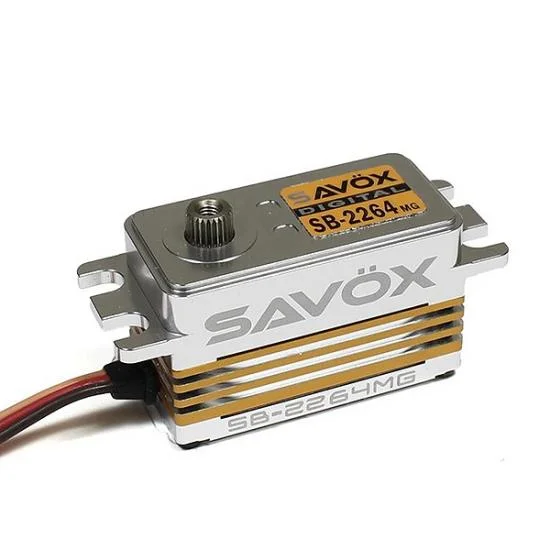

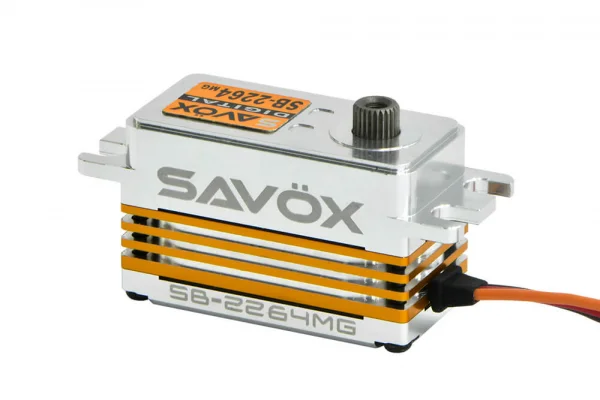

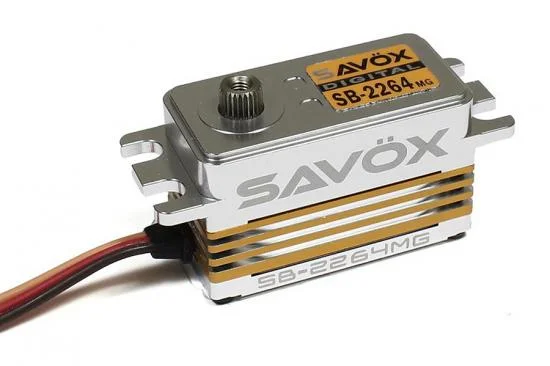

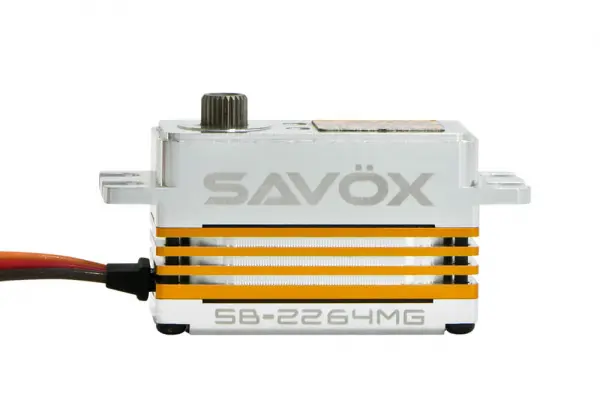

Savox SB2264MG Low Profile Brushless HV Servo 15kg

The Savox SB2264MG Low Profile Brushless HV MG Servo (part number SAV-SB2264MG) delivers fast, precise control with 15.0kg torque and a 0.085s transit speed at 7.4V. Combining a brushless motor, 12-bit (4096) resolution, a full aluminium case and unique steel gears, it is engineered for durability, efficiency and smooth response in compact installations.

Features

• Combines leading edge technology with super high 12 bit (4096) resolution.
• Ideal for 1/10 on road vehicles, 1/10 scale off road, and helis.
• Brushless motor provides longer life and cooler operating temps.
• Full aluminum case

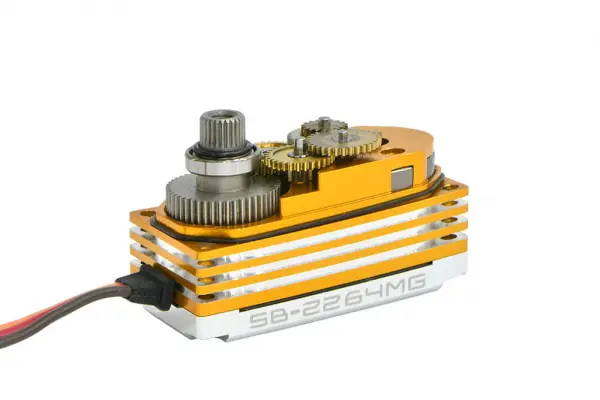

• Unique steel gears

Specifications

• Torque @ 6.0V: 12.0kg (166.8 oz-in)
• Torque @ 7.4V: 15.0kg (208.3 oz-in)
• Speed @ 6.0V: 0.11 sec/60°
• Speed @ 7.4V: 0.085 sec/60°

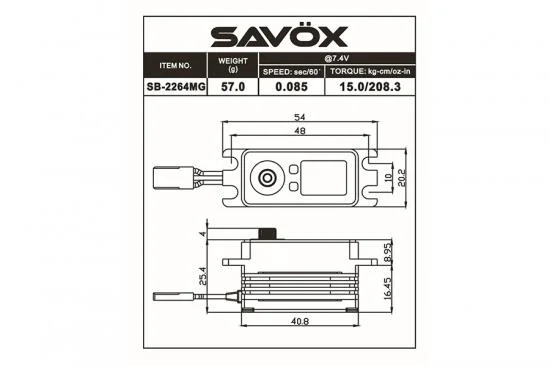

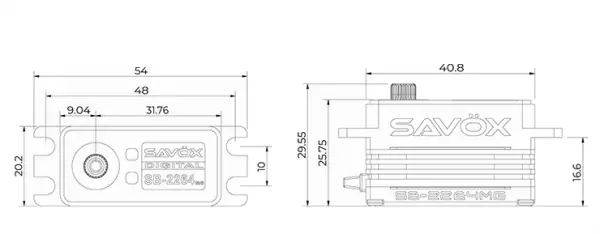

• Dimensions (L x W x H): 40.8 x 20.2 x 25.4 mm
• Weight: 57.0 g

Technical Details

• Operating temperature: 14°–122°F (-10°–50°C)
• Running current (no load): 180 mA @ 6.0V; 220 mA @ 7.4V
• Stall current (at locked): 2900 mA @ 6.0V; 3700 mA @ 7.4V
• Idle current: 5 mA @ 6.0V / 7.4V
• Wire length: 200 ± 5 mm
• Output gear spline: 25 tooth
• Bearings: 2BB
• Operating travel: 90° (1000 → 2000 µs)
• Neutral position: 1500 µs
• Pulse width range: 800 → 2200 µs
• Maximum travel: Approx. 130° (900 → 2100 µs)
• Refresh rate: 333 Hz
• Motor type: Brushless

Suggested Compatibility

• 1/10 on-road vehicles
• 1/10 scale off-road
• Helicopters
