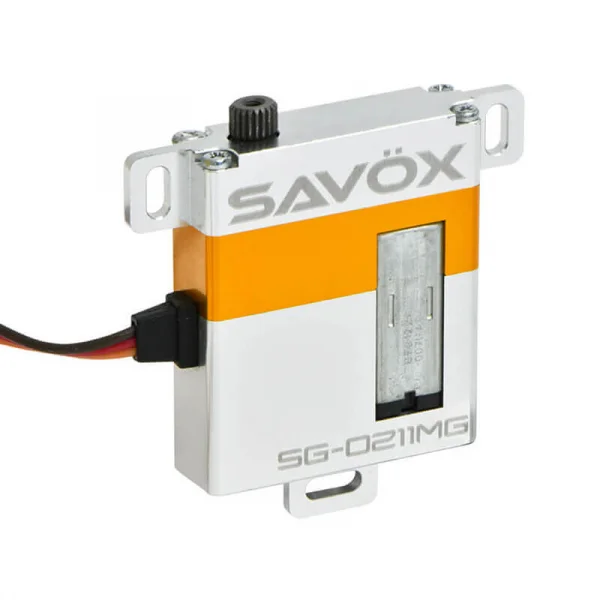

Savox Low Profile Digital Glider Servo - 8kg / 0.13s
Brand: Savox
Part No: SAV-SG0211MG
In Stock: Usually ships same day
The Savox SG0211MG Low Profile Digital Glider Servo (part number SAV-SG0211MG) is engineered for thin wings on speed models and gliders. At just 10mm deep with a full metal/aluminium case, it offers a compact fit, effective heat dissipation and excellent rigidity. Double ball bearings and metal gears support precise, consistent control, while a coreless motor delivers smooth response across a 4.8–6.0V operating range.
Key Features
- Ultra-slim 10mm profile for thin wings on speed models and gliders
- Full metal/aluminium case for strength and heat management
- Metal gears with double ball bearings for precision and durability
- Coreless motor and digital control for smooth, accurate movement
- Performance at 6.0V: 8.0kg torque, 0.13 sec/60°
- Operating voltage: 4.8–6.0V
Specifications
- Gears: Metal
- Case: Full metal
- Motor: Coreless
- Ball Bearings: 2
- Input Voltage: 4.8–6.0V
- Torque @ 6.0V: 8.0kg
- Speed @ 6.0V: 0.13 sec/60°
- Torque @ 4.8V: 6.0kg
- Speed @ 4.8V: 0.16 sec/60°
- Servo Horn Spline: 21 tooth (21T)

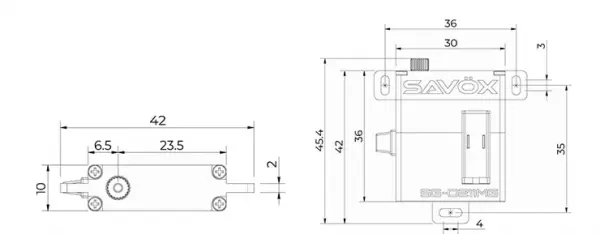

- Length: 30.0mm
- Width: 10.0mm
- Height: 36.0mm
- Weight: 29g
What’s Included
- Special servo arm for wing installations
- Solid mounting frame for easy installation
Secured by Stripe
The Savox SG0211MG servo is only 10mm deep and therefore ideal for the usage in thin wings of speed models and gliders. The full aluminium case makes it light and prevents over-heating. Highest precision for your model is guaranteed by backlash double ball bearing gears. Delivery includes a special servo arm for the use in wings and a solid frame for easy mounting.
Specifications- Gears: Metal
- Case: Full metal
- Length: 30.0mm
- Width: 10.0mm
- Height: 36.0mm
- Weight: 29g
- Input voltage: 4.8 - 6.0 Volt
- Torque at 6.0V: 8.0kg
- Speed at 6.0V: 0.13 sec/60°
- Torque at 4.8V: 6.0kg
- Speed at 4.8V: 0.16 sec/60°
- Motor: Coreless
- Ball bearings: 2
- Servo Horn: 21 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SG0211MG
- Barcode: 4710006993003
