Savox SA1258TG 12kg High Speed Titanium Gear Servo
Brand: Savox
Part No: SAV-SA1258TG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SA1258TG+ AS A REPLACEMENT
Description

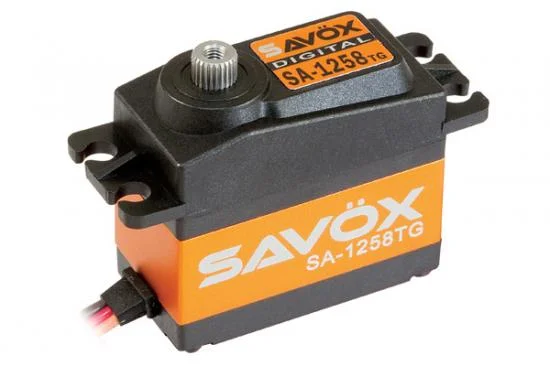

The Savox SA1258TG (part SAV-SA1258TG) is a standard-size digital servo that blends high-speed performance with 12kg-class torque. Using a coreless motor and a titanium/aluminium gear train, it delivers precise control with super high 12-bit (4096) resolution. With a rapid 0.08 sec/60° transit time and robust build, it’s a capable all-round option and particularly effective where minimal backlash is important.
Key Features
- Combines leading edge technology with super high 12-bit (4096) resolution and titanium/aluminium gears
- Super light-weight
- Coreless motor provides high speed, excellent efficiency, and low power consumption
- Extremely strong titanium gears ensure long life and durability
- Aluminium case aids cooler, smoother operating temperatures
- Environmentally friendly materials and production
- Ideal for plane applications where minimised backlash is needed
Specifications
- Dimensions (mm): 40.3 x 20.2 x 37.2
- Weight: 52.4 g
- Speed (@4.8V sec/60): .10
- Torque (@4.8V oz-in): 133.3
- Speed (@6.0V sec/60): .08
- Torque (@6.0V oz-in): 166.6
- Gears: Titanium & Aluminium
- Bearings: 2BB
- Case: Aluminium
- Spline: 25 tooth (25T)
Secured by Stripe
Savox SA1258TG High Torque Servo - 12kg Manuals & Guides
How-To Guides & Articles
Specifications
This is the Savox SA-1258TG Standard Digital "High Speed" Titanium Gear Servo. The SA-1258TG combines leading edge technology with super high 12-bit (4096) resolution and titanium and aluminum gears for one amazing servo! With titanium and aluminum gears, this servo is truly magical. Pushing 167 ounces of torque and a blistering .08 transit time, this servo is redefining what an all-around servo should be capable of. This is a great upgrade to most comparably priced servos. The minimized backlash on the SA-1258TG is helpful in plane wings for greater accuracy and less gear play.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears
- Super light-weight
- Coreless motor provides high speed, incredible efficiency, and low power consumption
- Extremely strong titanium gears ensure long-life and durability
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps
- Our servos are totally green – from materials to production, these servos are environmentally friendly
- Ideal for plane applications where a minimized backlash is needed
Specifications:
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 133.3
Speed(@6.0V sec/60): .08
Torque(@6.0V oz-in): 166.6
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Spline: 25 Tooth
Key Info:
- Brand: Savox
- Part No: SAV-SA1258TG
- Barcode: 4710006990644
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
