Savox SB2274SG High Voltage Servo - 25KG / 0.08s
Brand: Savox
Part No: SAV-SB2274SG
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
SAVOX HV DIGITAL BRUSHLESS SERVO 25KG/[email protected]

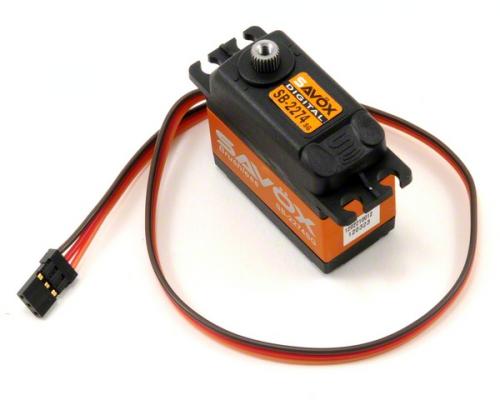

This is the Savox SB2274SG High Speed Brushless Unique Steel Gear Digital Servo.
SB2274SG Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green - from materials to production, these servos are environmentally friendly.
- Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.
Spec Check:
- Dimensions(mm): 40.3x20.2x38.5
- Weight(g): 69.0
- Speed(@6.0V sec/60): .105
- Torque(@6.0V oz-in): 277.7
- Speed(@7.4V sec/60): .08
- Torque(@7.4V oz-in): 347.2
- Gear: Unique Steel
- Bearing: 2BB
- Case: Full Aluminum
- 25 Tooth Spline
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Secure Payments
Secured by Stripe
- Brand: Savox
- Part No: SAV-SB2274SG
- Barcode: 4710006990057
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Hello I have a ARRMA typhon RTR TLR tuned 6s would this servo be a big improvement then the one it comes with. Spektrum S652 ? Thanks
Mark Hughes / 27th March 2023
This servo would work for you yes, but I would point out that its not waterproof like the original one.
Si @ Wheelspin Models
Hi there,
Would 2 of these be good as the throttle and steering servos for the MP10 powered by a 7.4v lipo receiver battery?
Andrew / 11th July 2020
Yes those would work very well
Ben @ Wheelspin Models
Would this work in a v4 typhon with sr6100at receiver?
Steve Hawkins / 28th April 2020
Yes should work fine
Ben @ Wheelspin Models
Would this be any good as a steering servo with a 7.4v lipo fitted to the hobao hyper mt
Andrew Robinson / 19th October 2018
Yes that would be an ideal steering servo in that setup.
Ben @ Wheelspin Models
