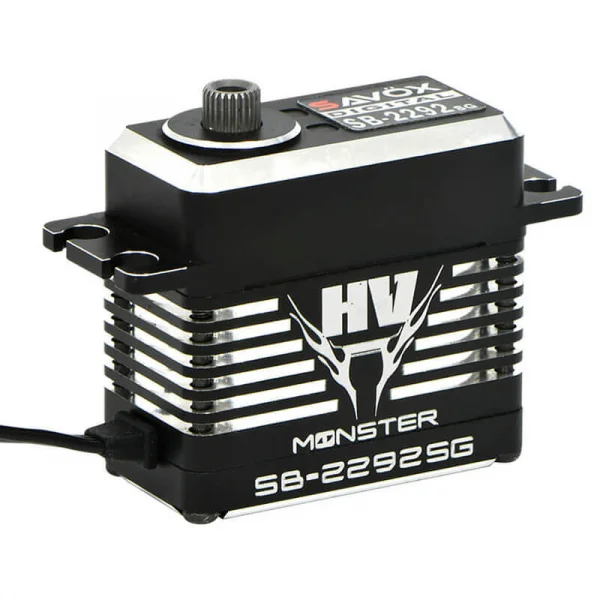

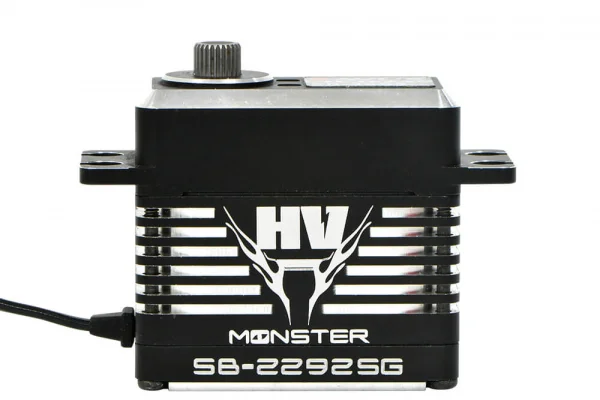

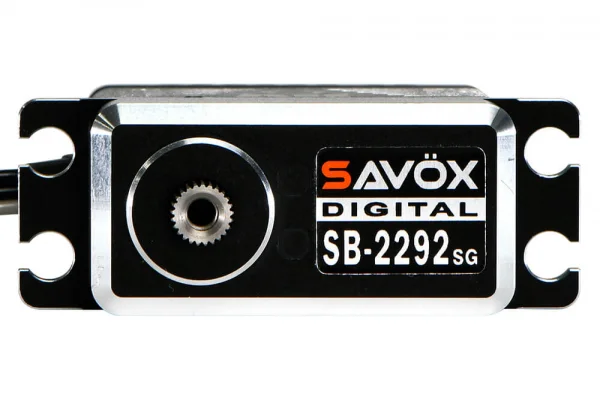

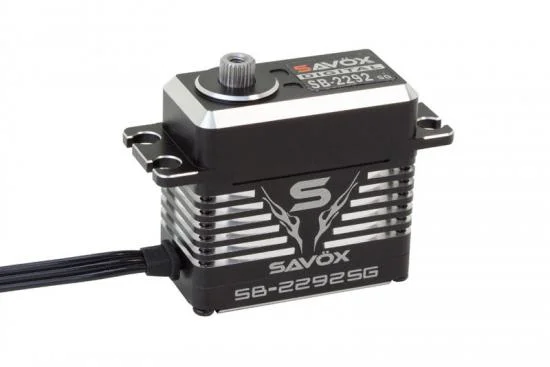

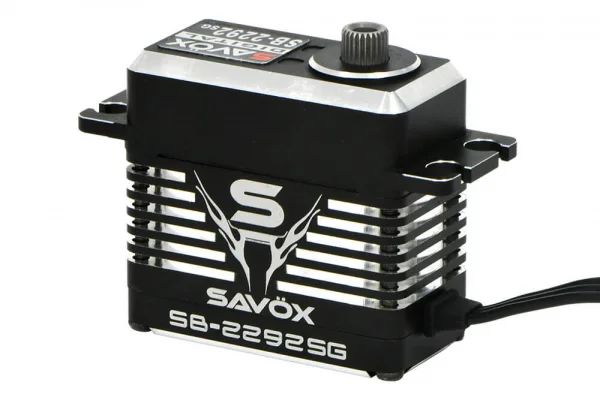

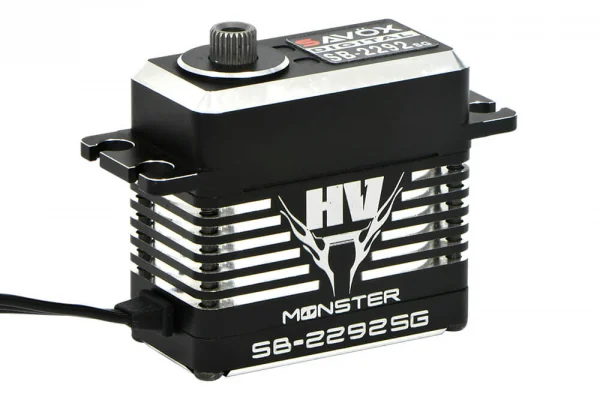

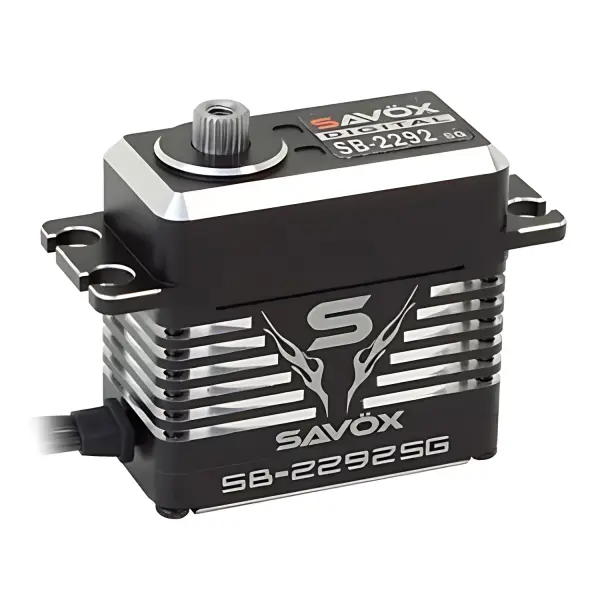

Savox SB2292SG Monster HV Servo - 31kg / 0.07s
Brand: Savox
Part No: SAV-SB2292SG
Shadow Stock: Usually ships within 2 days
The powerful "Monster" performance series from Savox utilize an all aluminium case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features- Full Aluminum Case
- 3 Precision Ball Bearings.

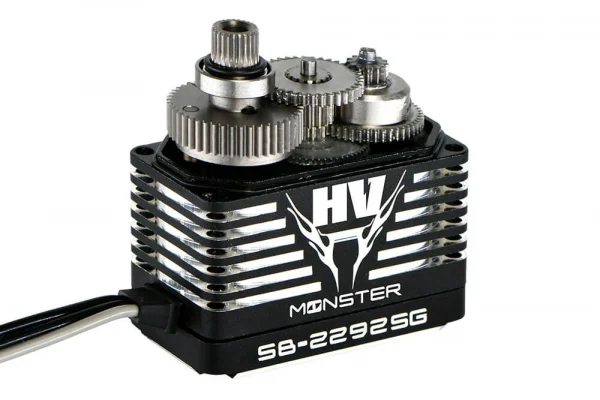

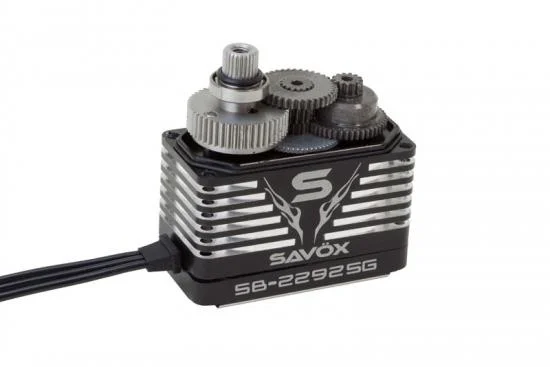

- Unique Steel Gears
Torque @ 6v: 22.0kg/305.5oz-in
Torque @ 7.4v: 31.0kg/430.5oz-in
Torque @ 8.4v: 45.0kg/624.9-in
Speed @ 6v: 0.085 sec/60 deg
Speed @ 7.4v: 0.07sec/60 deg
Speed @ 8.4v: 0.055sec/60 deg

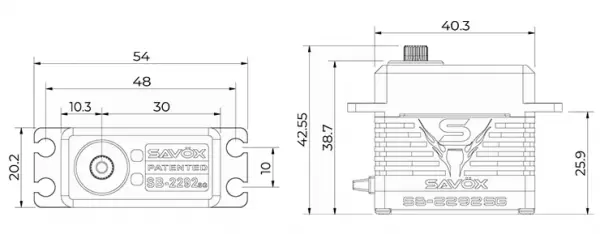

Dimensions: L x W x H mm: 40.3 x 20.2 x 38.7
Weight: 81g
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Secured by Stripe
- Brand: Savox
- Part No: SAV-SB2292SG
- Barcode: 4710006993409
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No, as this is not a waterproof servo, You would need something like this SAV-SW2290SG
Yes as long as it is a 25t horn.
Yes these are standard size so would suit the steering on the TRX-4.
For something to replace the micro servos take a look at HD-TR-4
