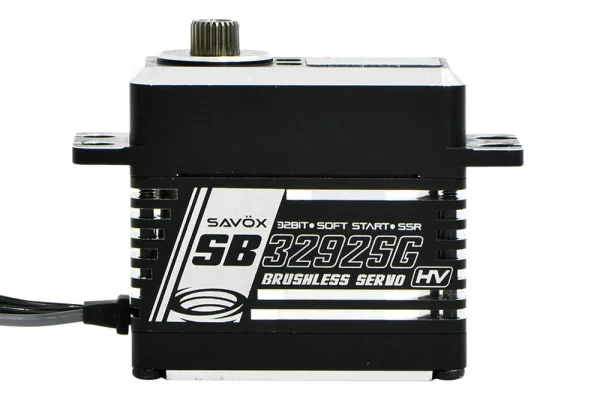

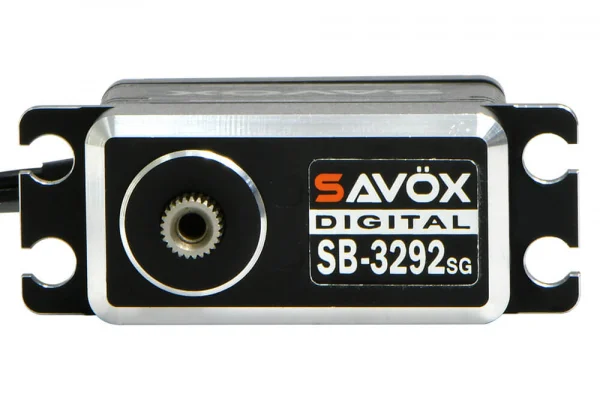

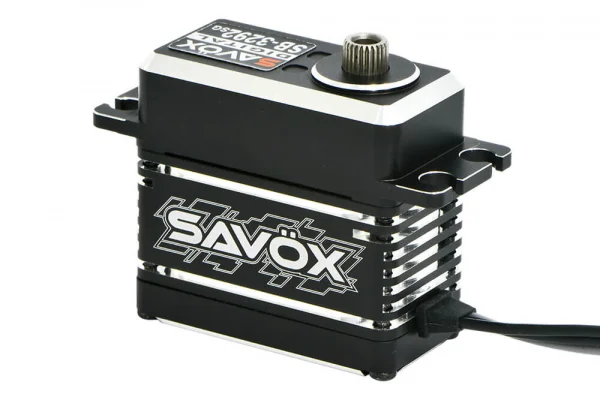

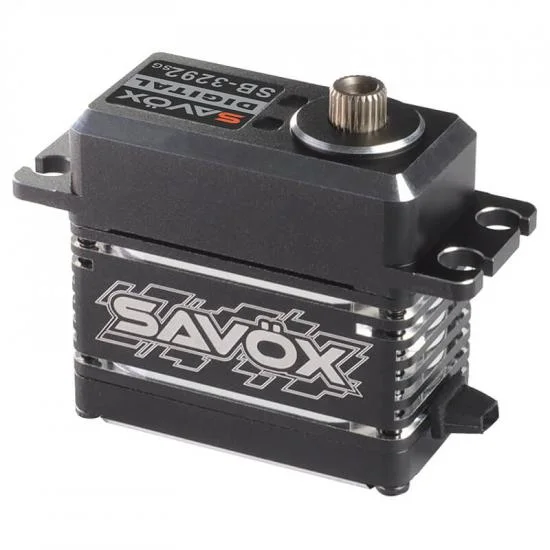

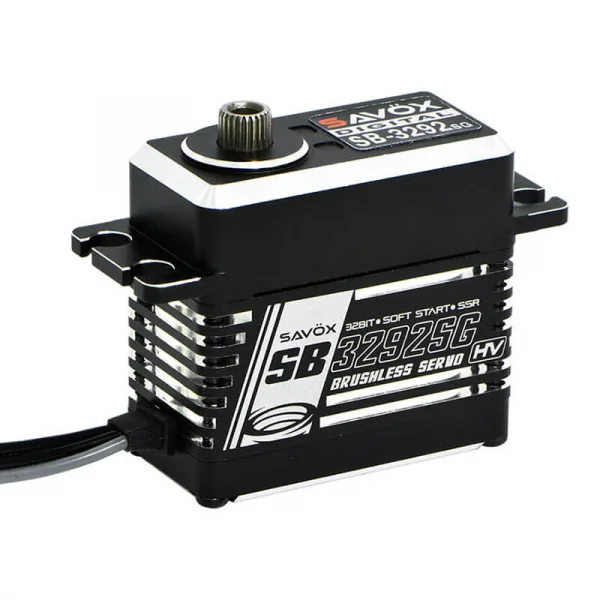

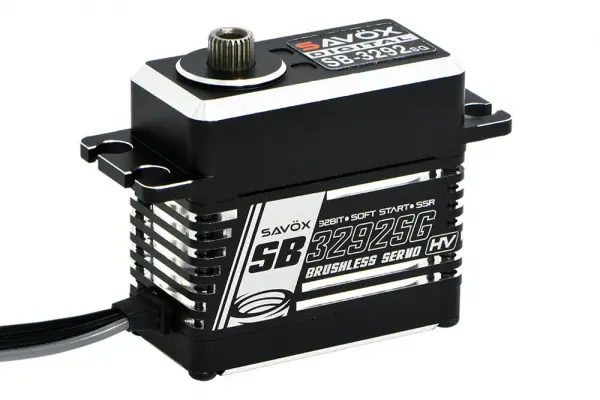

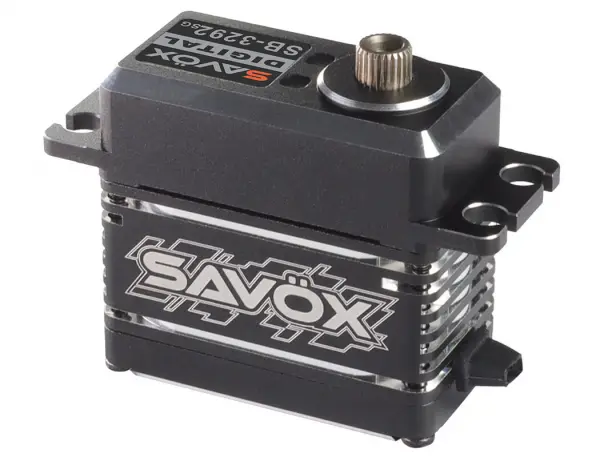

Savox SB3292SG HV Brushless CNC Servo - 40kg 0.07s

The Savox SB3292SG is a high-voltage brushless CNC servo engineered for power, precision and durability. Delivering 40 kg-cm at 7.4V with a swift 0.07 sec/60 response, and up to 55 kg-cm with 0.055 sec/60 at 8.4V, it offers a strong balance of torque and speed. A full aluminium case enhances rigidity and heat dissipation, while unique steel gears and triple ball bearings help ensure long-term reliability. This model uses a 25T spline horn and is identified by part number SAV-SB3292SG.

Key Specifications

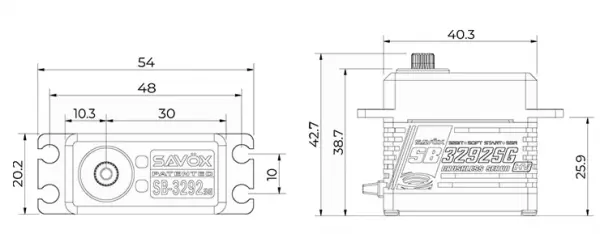

• Dimensions (mm): 40.3 x 20.2 x 37.6
• Weight (g): 72.0
• Speed (@7.4V sec/60): 0.07
• Torque (@7.4V kg-cm): 40
• Speed (@8.4V sec/60): 0.055
• Torque (@8.4V kg-cm): 55
• Gear: Unique Steel
• Bearing: 3BB
• Case: Full Aluminium
• Servo Horn: 25 Tooth Spline

Design Highlights

• Brushless motor performance with high-voltage operation
• Full aluminium CNC case for strength and thermal stability

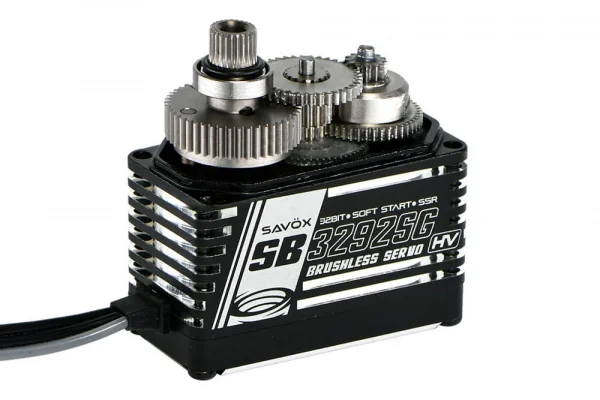

• Unique steel gear train for durability under load
• Triple ball bearings for smooth, consistent movement
• Standard 25T output spline for wide horn choice

Performance Radar

Compare RC servo performance at a glance with the intuitive Performance Radar, which visualises key metrics such as speed, torque and precision to support confident selection.

Notes

New Savox and Plus "+" models feature a Soft Start Mode and Sanwa SSR compatibility.
