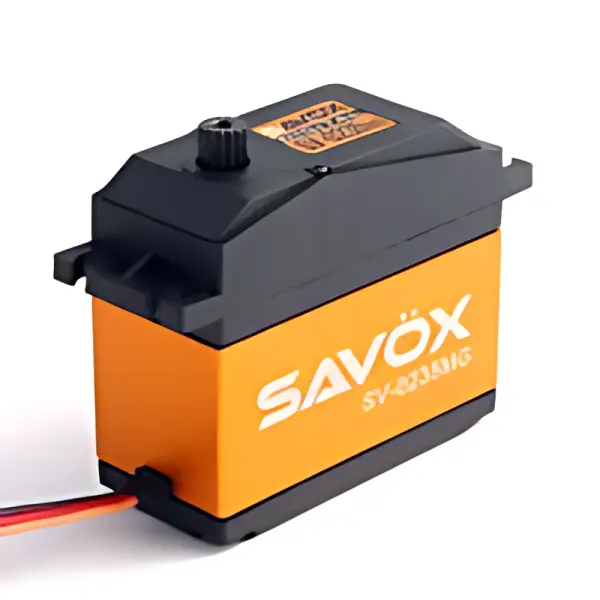

Savox SV0235MG Jumbo Metal Geared Servo - 35Kg/cm
Brand: Savox
Part No: SAV-SV0235MG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SV0235MG+ AS A REPLACEMENT
The Savox SV0235MG Jumbo Metal Geared Servo - 35Kg/cm delivers rapid response and serious holding power in a robust 1/5-scale format. Combining 12-bit (4096) resolution with hardened steel gears and a full aluminium case, this digital servo is engineered for smooth, cool operation and long-term durability. Part number SAV-SV0235MG.
Key Features
- 12-bit (4096) resolution with unique steel gears for precise control
- Super light-weight design with high speed, efficiency and low power consumption
- Extremely strong steel gears for long-life durability
- Full aluminium case helps maintain cooler, smoother operating temperatures
- Environmentally friendly materials and production
- Suggested compatibility: 1/5 scale vehicles
Specifications
- Speed:
- @6.0V: .16 sec/60
- @7.4V: .13 sec/60
- Torque:
- @6.0V: 388.8 oz-in
- @7.4V: 486.1 oz-in
- Dimensions: 65.8 x 30 x 57.4 mm
- Weight: 200 g
- Gear: Metal
- Bearing: 2BB
Note on Power Supply
Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
Secured by Stripe
This is the Savox SV-0235MG "Super Speed" Steel Gear Digital 1/5 Scale Servo.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
- Super light-weight.
- High speed, incredible efficiency, and low power consumption.
- Extremely strong metal steel gears ensure long-life and durability.
- The full aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for 5th scale vehicles
*NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.
Specifications:
- Speed:
- @6.0V: .16 sec/60
- @7.4V: .13 sec/60
- Torque:
- @6.0V: 388.8 oz-in
- @7.4V: 486.1 oz-in
- Dimensions: 65.8x30x57.4mm
- Weight: 200g
- Gear: Metal
- Bearing: 2BB
Key Info:
- Brand: Savox
- Part No: SAV-SV0235MG
- Barcode: 4710006990347
- Max Voltage: 7.4v
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No - it's a large scale servo. The Talion takes a standard size steering servo. Something like SAV-SW1210SG would be an ideal upgrade (and waterproof!)
Yes this is a straight swap for the HPI SFL-10 / 11 servos
Yes, it's the correct size for the Losi DBXL
