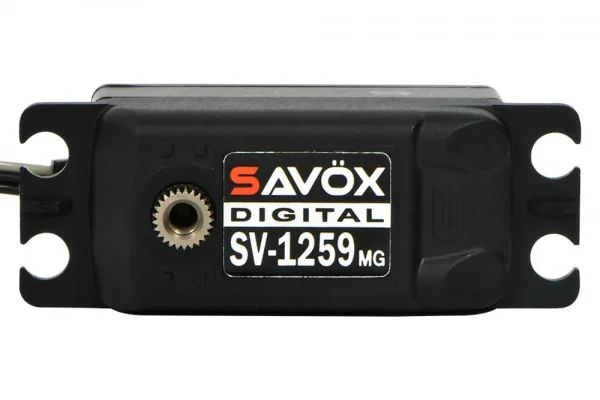

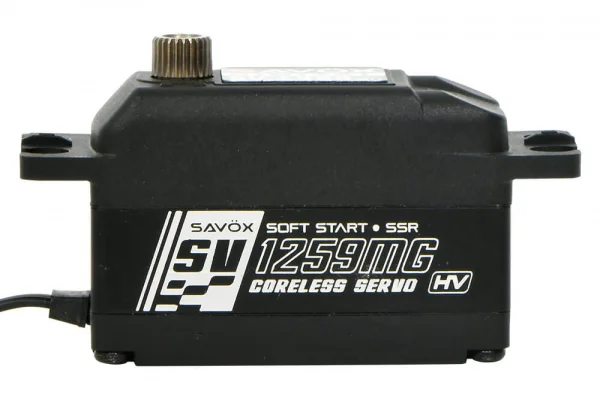

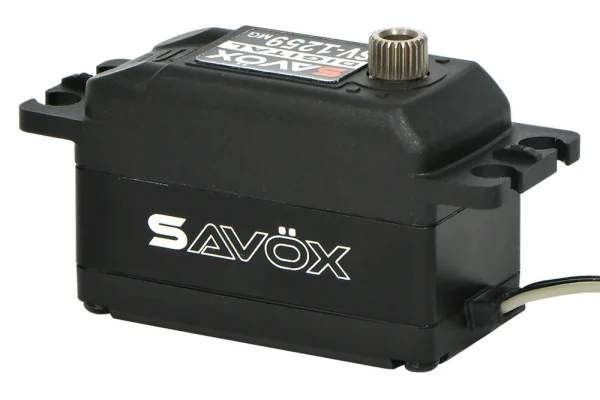

Savox SV1259MG HV Low Profile Digital Servo - 22Kg 0.075s
Brand: Savox
Part No: SAV-SV1259MG
In Stock: Usually ships same day

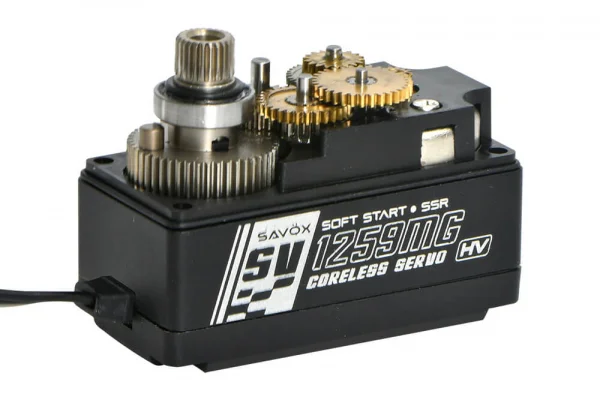

The Savox SV1259MG HV Low Profile Digital Servo is engineered for performance where space is at a premium. Combining a robust coreless motor with hardened metal gears, it delivers crisp, responsive control with an excellent balance of torque and speed. This makes it a strong choice for cars and other applications that demand a compact footprint without compromising performance. For SEO and identification, this is Savox part number SAV-SV1259MG.
Designed to run on high-voltage setups, the SV1259MG offers faster transit times and higher torque as voltage increases. The part‑aluminium case aids heat dissipation, while dual ball bearings support smooth, precise movement. A 25‑tooth (25T) spline provides widespread servo horn compatibility.
Specifications

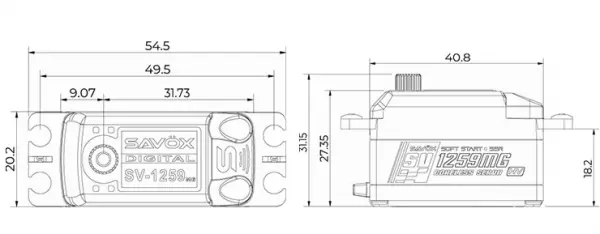

- Dimensions (mm): 40.8 x 20.2 x 27.4
- Weight: 49 g
- Speed @ 6.0V (sec/60°): 0.10
- Torque @ 6.0V (kg-cm): 15
- Speed @ 7.4V (sec/60°): 0.085
- Torque @ 7.4V (kg-cm): 19
- Speed @ 8.4V (sec/60°): 0.075
- Torque @ 8.4V (kg-cm): 22
- Gears: Metal
- Bearings: 2BB
- Case: Part aluminium
- Output Spline: 25 tooth (25T)
Secured by Stripe
The SV1259MG is a high-voltage, low-profile digital servo engineered for performance in tight spaces. With a robust coreless motor and hardened metal gearing, it delivers crisp, responsive control which is ideal for cars or other applications demanding both torque and speed.
Specifications- Dimension(mm): 40.8 x 20.2 x 27.4
- Weight(g): 49
- Speed @6.0V (sec/60): 0.10
- Torque @6.0V (kg-cm): 15
- Speed @7.4V (sec/60): 0.085
- Torque @7.4V (kg-cm): 19
- Speed @8.4V (sec/60): 0.075
- Torque @8.4V (kg-cm): 22
- Gears: Metal
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SV1259MG
- Barcode: 4710006995069
