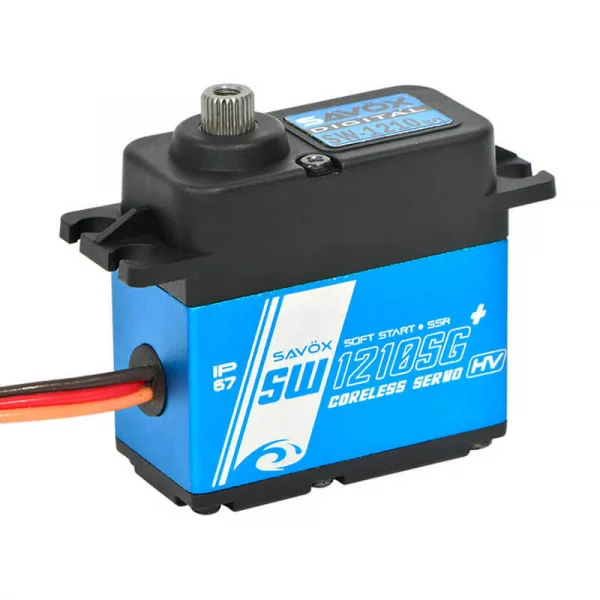

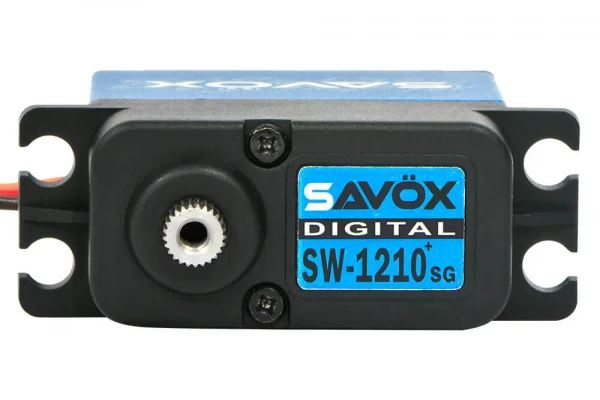

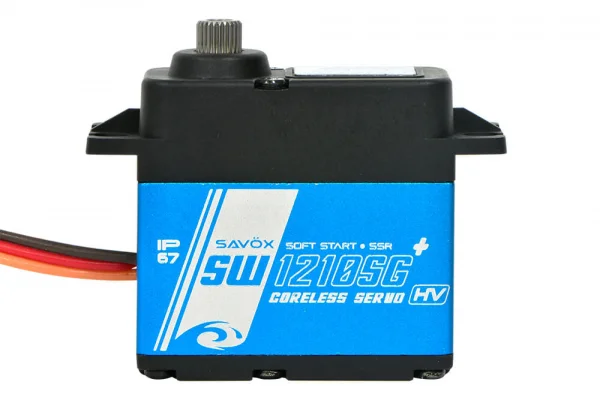

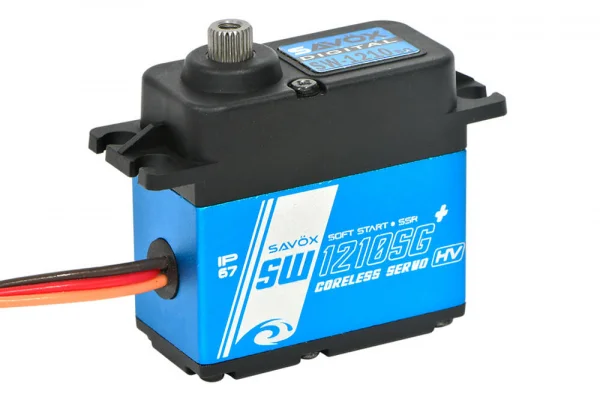

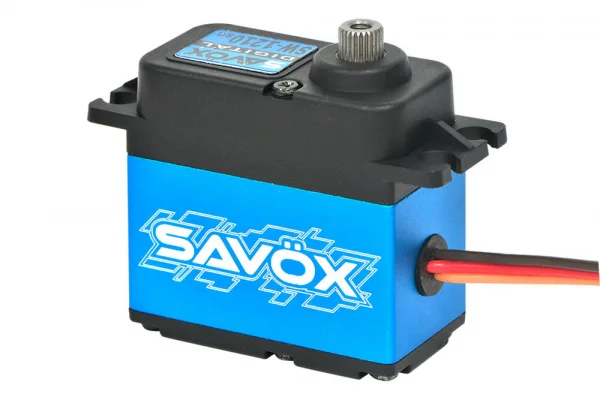

Savox SW1210SG+ Waterproof Metal Gear Digital Servo - 32kg - 0.13s
Brand: Savox
Part No: SAV-SW1210SG+
In Stock: Usually ships same day
The Savox SW1210SG+ (part number SAV-SW1210SG+) is a high-performance waterproof digital servo designed for precision and durability. A coreless motor, steel gear train and high-resolution control deliver smooth, consistent response in all weather. It produces 20 kg-cm and 0.15 s/60° at 6.0V, steps up to 32 kg-cm and 0.13 s at 7.4V, and reaches 37 kg-cm and 0.12 s at 8.4V. A part aluminium case helps manage heat for reliable running over long sessions.
With dual ball bearings, a 25-tooth spline and low power consumption, the SW1210SG+ balances speed, strength and efficiency for demanding RC use. The “+” variant adds Soft Start Mode and Sanwa SSR compatibility.
Features
- Leading-edge technology with super high 12-bit (4096) resolution and steel gears.
- Fully waterproof construction.
- Coreless motor for high speed, excellent efficiency and low power consumption.

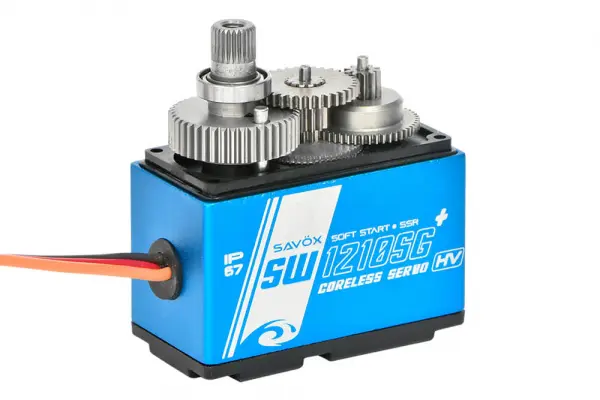

- Extremely strong steel gears for long life and durability.
- Case design promotes cooler, smoother operating temperatures.
- Environmentally friendly materials and production.
- Soft Start Mode and Sanwa SSR compatibility on “+” models.
Specifications

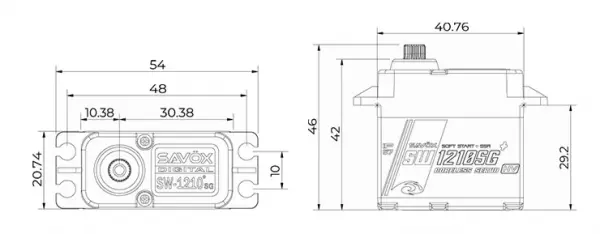

- Dimensions (mm): 40.6 x 20.7 x 42.0
- Weight: 71 g
- Speed @ 6.0V (sec/60): 0.15
- Torque @ 6.0V (kg-cm): 20
- Speed @ 7.4V (sec/60): 0.13
- Torque @ 7.4V (kg-cm): 32
- Speed @ 8.4V (sec/60): 0.12
- Torque @ 8.4V (kg-cm): 37
- Gears: Steel
- Bearings: 2BB
- Case: Part aluminium
- Servo horn spline: 25-tooth
Suggested Compatibility
- RC cars
- RC trucks
- RC buggies
- RC boats
Secured by Stripe
The SW1210SG+ is the premier waterproof digital servo in the Savox Line-up. This coreless servo boasts 20 kg-cm of torque and a speed of .15 at 6.0V and is now High Voltage capable with an impressive 37 kg-cm of torque and a speed of .12 at 8.4V.
It combines leading edge technology with super high 12-bit (4096) resolution and steel gears for one versatile and waterproof servo!
This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
- Combines leading edge technology with super high 12 bit (4096) resolution and steel gears.
- Waterproof.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Extremely strong steel gears ensure long-life and durability.
- The case design not only looks good but also allows for cooler and smoother operating temps.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for RC cars, trucks, buggies, and boats.
- Dimensions(mm): 40.6 x 20.7 x 42.0
- Weight(g): 71
- Speed @6.0V (sec/60): .15
- Torque @6.0V (kg-cm): 20
- Speed @7.4V (sec/60): .13
- Torque @7.4V (kg-cm): 32
- Speed @8.4V (sec/60): .12
- Torque @8.4V (kg-cm): 37
- Gear: Unique Steel
- Bearing: 2BB
- Case: Part Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SW1210SG+
- Barcode: 4710006994512
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes this would be a nice upgrade.
This will work for you and be a good upgrade, we find that the lead may be tight on length so advise getting a servo extension lead like this ET0732
Yes this would work with that car but you would need a 25t servo horn, as the car has a 23 on it.
It is recommended for such a high torque servo but we do know people run without but this may cause esc or receiver problems with time.
