Description
The Savox SW2290SGB HV CNC Monster Brushless Black Servo is a high-voltage RC servo with 55kg-cm of torque and a 0.13-second operating speed at 7.4V. It is designed for specific applications where substantial servo torque is required, with a black finish for clean builds and custom chassis.
The servo uses Savox brushless motor technology and three precision ball bearings for controlled operation. Its output is supported by unique steel gears, while the aluminium case provides the stated housing material. The servo is supplied with a 25-tooth spline specification and offers different speed and torque figures depending on the applied voltage.
Specifications

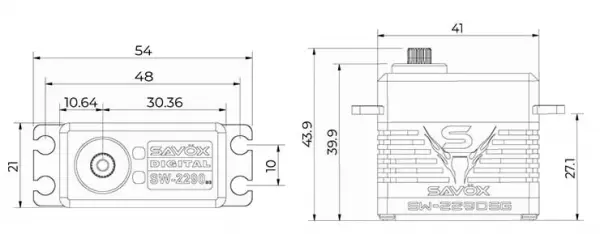

- Dimensions: 41 x 21 x 39.9 mm
- Weight: 88 g
- Speed at 6.0V: 0.16 sec/60°
- Torque at 6.0V: 45 kg-cm
- Speed at 7.4V: 0.13 sec/60°
- Torque at 7.4V: 55 kg-cm
- Speed at 8.4V: 0.11 sec/60°
- Torque at 8.4V: 70 kg-cm

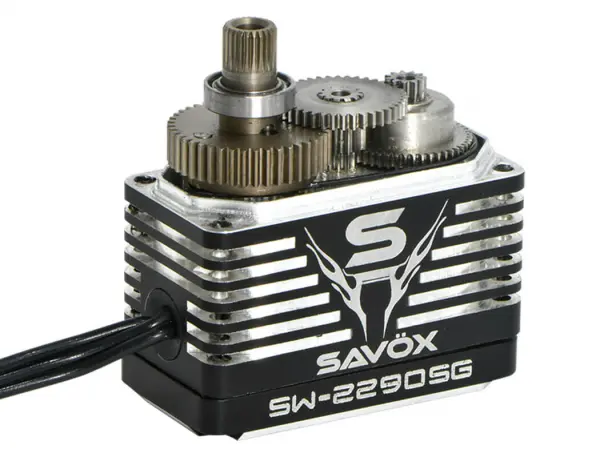

The Savox SW2290SGB uses three ball bearings and a steel gear train within its CNC aluminium case. Its voltage-dependent figures allow the servo to be assessed against the power requirements of an RC build, while the black finish suits models where a darker component appearance is preferred.
Secured by Stripe
Specifications
This Savox Monster Series servo delivers an insane amount of torque for specific applications where monster torque is needed.
Features Savox's patented brushless servo motor technology that provides up to 35% more power than motors in competing brands, while smoothness and reliability are optimized through the use of three precision ball bearings.
Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.
Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.
- Dimension(mm): 41 x 21 x 39.9
- Weight(g): 88
- Speed @6.0V (sec/60): .16
- Torque @6.0V (kg-cm): 45
- Speed @7.4V (sec/60): .13
- Torque @7.4V (kg-cm): 55
- Speed @8.4V (sec/60): .11
- Torque @8.4V (kg-cm): 70
- Gears: Unique Steel
- Bearing: 3BB
- Case: Aluminium
- Servo Horn: 25 Tooth Spline
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you're prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
New Savox and Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SW2290SGB
- Barcode: 4710006993973
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
