SC AP09 Hornet 2-Stroke Glow Engine

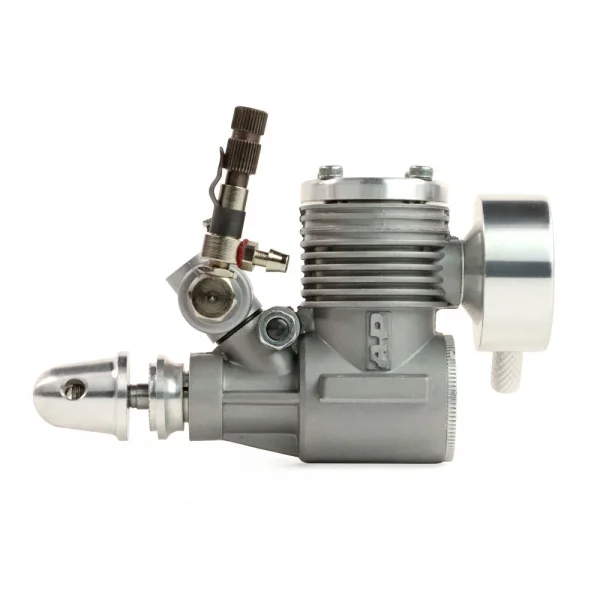

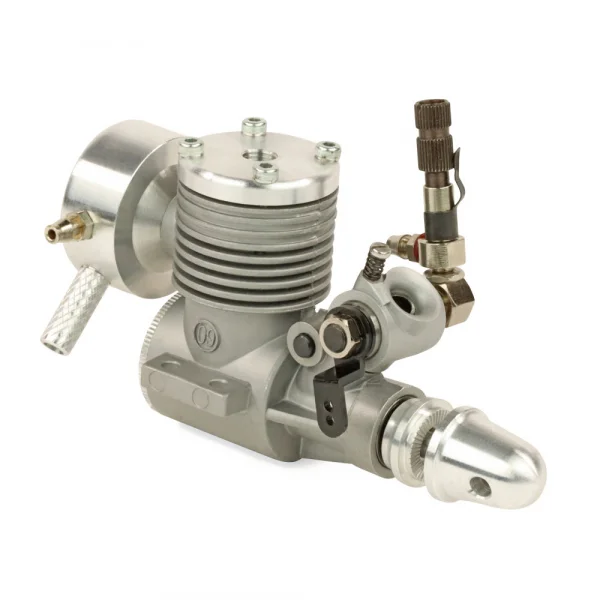

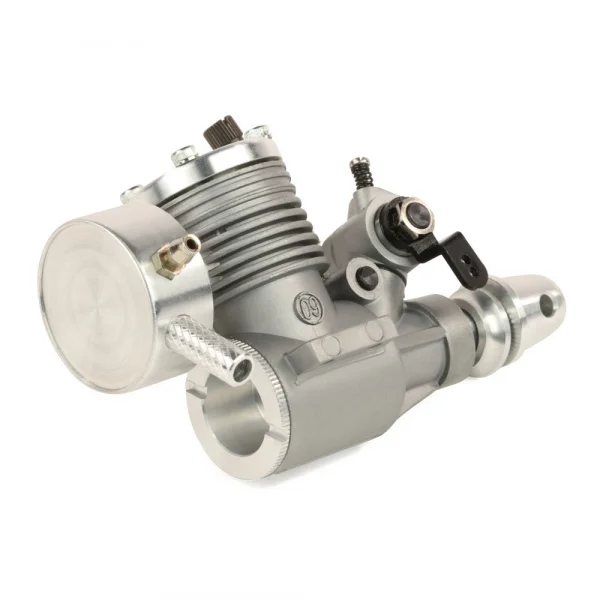

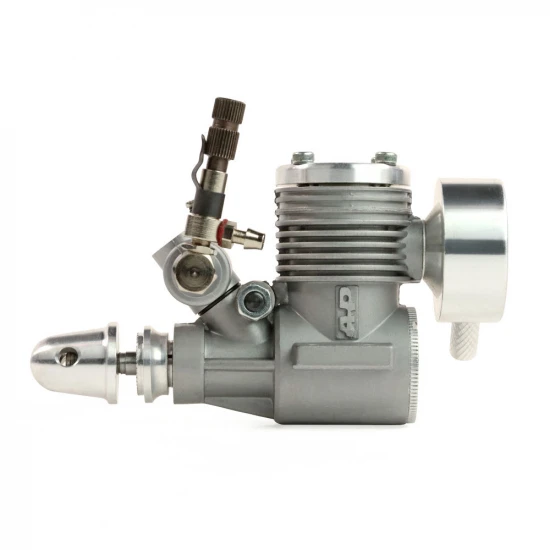

The SC AP09 Hornet 2-stroke Glow Aero Engine (SCEA09147) is a compact 0.09 cu in powerplant engineered for reliable performance. Built around an ABC aluminium piston and chrome-plated brass liner, and supported by a twin bearing crankshaft, it features a compact rear exhaust layout for clean installation and smooth running. Thoughtfully detailed touches such as an easy-to-operate single-needle carburettor and rearward slanted main needle make setup straightforward, while full spares availability supports long-term ownership.

Designed to start easily and run smoothly, the AP09 Hornet suits a variety of small model aircraft applications, with an included control-line/free-flight venturi for discipline-specific setups. A tough, rigid single-billet crankshaft and adjustable throttle stop round out a robust specification, complemented by the supplied silencer and clear operating instructions.

Key Features

• Rearward slanted main needle.
• Twin bearing crankshaft.
• ABC piston and liner.
• Easy to operate single needle carburettor.
• Compact rear exhaust design.
• Tough & rigid single billet crankshaft.
• Includes control-line / free-flight venturi.
• Adjustable throttle stop.
• Easy starting and smooth running.
• Full spares availability.

What’s Included

• 1x SC AP09 two-stroke aero engine.
• 1x Standard dustbin silencer.

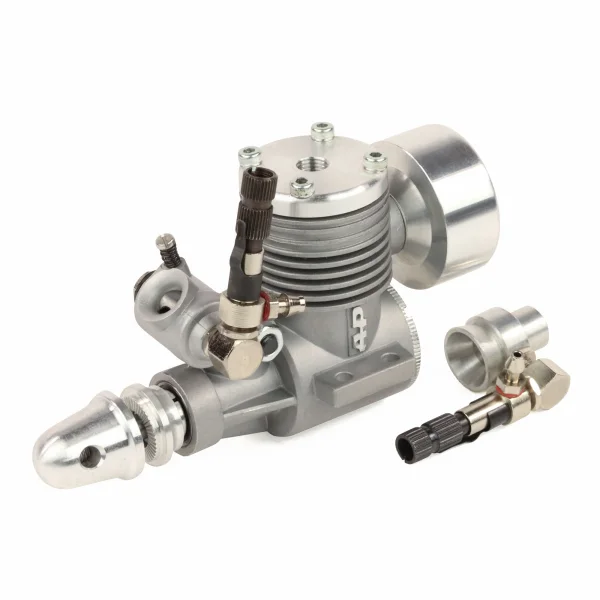

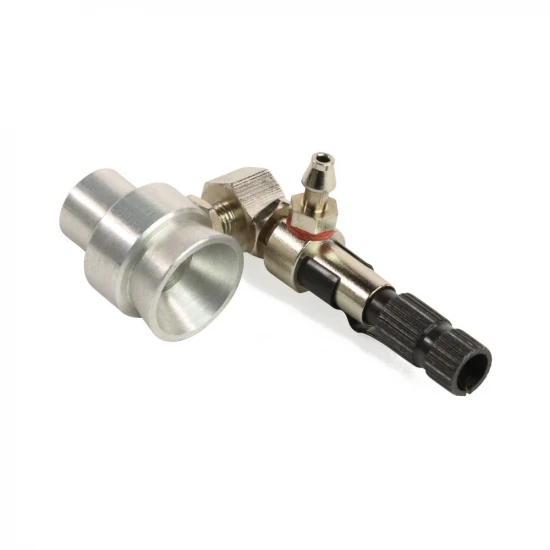

• 1x Control-line venturi.
• 1x Exploded parts diagram.
• 1x Instruction manual / operating sheet.

Required to Complete

• 1x Medium glow plug.
• 1x 7x3 to 7x5 propeller.

Technical Specifications

• Weight: 152g / 5.36oz
• Shipping Weight: 0.32kg / 0.70lbs
• Engine Size: 0.09 cu. in.
• Displacement: 1.47mm3
• Cylinder Bore: 12.5mm
• Cylinder Stroke: 12mm
• Recommended Usage Environment: Outdoors
• Colour: Silver
• Material: Aluminium
