Description

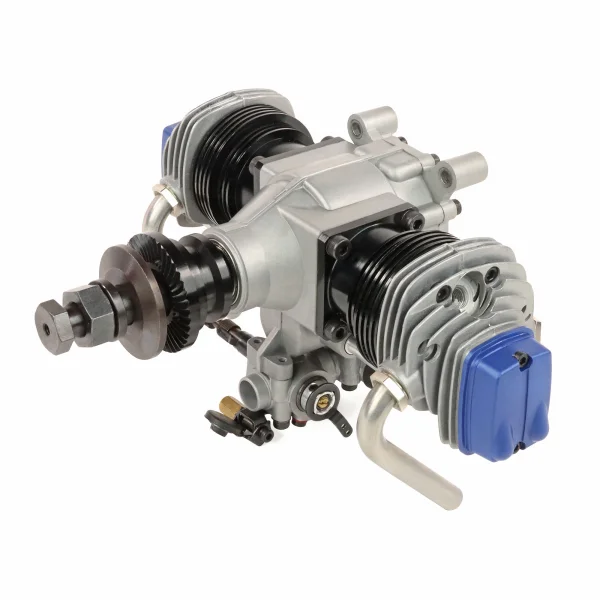

The SC SC160AR Flat Twin 4-Stroke Glow R/C Aero Engine, part number SCEAF1602622, is a 26cc (1.6 cu. in.) twin-cylinder four-stroke glow engine for radio-controlled model aeroplanes.
The flat twin layout gives the scale look and scale sound that many sport-scale and vintage-style builders want. As a four-stroke, it produces more torque and can swing larger propellers, and the manufacturer describes smooth throttling, the ability to turn a 20x6 inch prop and a tickover of around 2000 rpm. Suggested uses include 26cc-class models such as a Piper J3 Cub, Druine Turbulent, RV-8 or Tipsy Nipper.

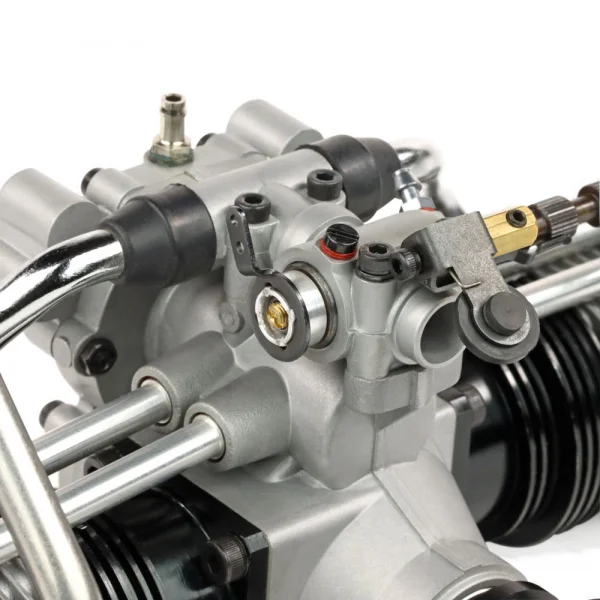

Tuning is handled by an easy-tune twin needle carburettor, and a remote choke lever helps with starting. The engine has a single billet crankshaft running on twin phenolic bearings, blue anodised rocker covers and a twin locking propeller nut. It comes in a wooden storage case, and spares are available.
What's Included
- Twin-cylinder four-stroke aero engine
- Engine mounting bolt set
- Allen key set
- 2 remote glow plug clips
- Instruction manual
Required to Complete
- 2 medium or hot glow plugs
- 1 propeller, 16x8 to 20x6 inch
Specifications
- Engine size: 1.6 cu. in.
- Cylinder bore: 26.5 mm
- Cylinder stroke: 23.2 mm
- Weight: 1265 g
- Material: Aluminium
- Colour: Silver
- Age recommendation: 14+, for outdoor use
Secured by Stripe
SC SC160AR Flat Twin 4-Stroke Glow R/C Aero Engine Manuals & Guides
Manuals & Guides
Exploded Diagrams & Parts
Specifications
Get yourself a 26cc Piper J3 Cub, Druine Turbulent, RV-8 or even a Tipsy Nipper and this beautifully engineered, sweet-sounding flat twin will bring it to life in a way that few other engines can. Of course the possibilities for this sweet-sounding four-stroke far exceed the options above and one thing??s for certain, no matter what you put it in, the pleasure and satisfaction of owning and running this piece of precision fuel burning craftsmanship will be all the reward you need. With smooth throttling, the ability to turn a mighty 20x6" prop and a burbling 2000 rpm tickover this is undoubtedly the finest, affordable 26cc twin you??ll find.
SC SC160AR Flat Twin 4-Stroke Glow R/C Aero Engine Key Features:
- Easy tune twin needle carburettor.
- Twin bearing (phenolic) crankshaft.
- Blue anodised rocker covers.
- Four-strokes yield more torque and swing larger propellers.
- Extra safe twin locking propeller nut design.
- Tough & rigid single billet crankshaft.
- Remote choke lever.
- Scale look and scale sound.
- Sturdy wooden storage case.
- Full spares availability.
What's in the Box:
- 1x SC 160FS twin cylinder four-stroke aero engine.

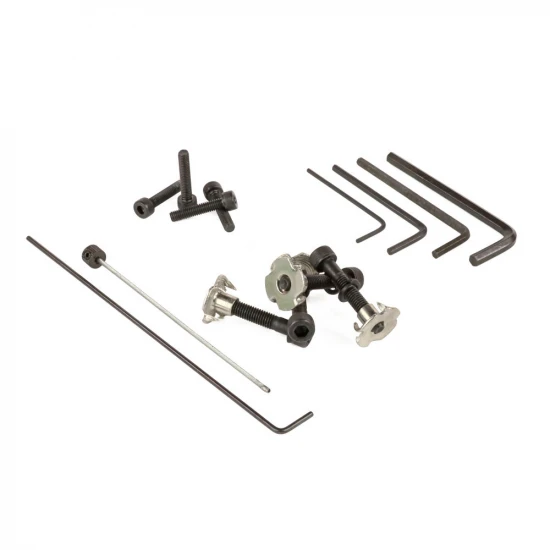

- Engine mounting bolt set.
- Allen key set.
- 2x Remote glow plug clip.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 2x Medium / hot glow plugs.
- 1x 16x8 to 20x6" propeller.
SC SC160AR Flat Twin 4-Stroke Glow R/C Aero Engine Tech Specs:
- Weight: 1265g / 44.62oz
- Shipping Weight: 3.00kg / 6.62lbs
- Engine Size: 1.6 cu. in.
- Displacement: 26.22mm3
- Cylinder Bore: 26.5mm
- Cylinder Stroke: 23.2mm
- Age Recommendation: 14+
- Recommended Usage Environment: Outdoors
- Colour: Silver
- Material: Aluminium
Key Info:
- Brand: SC
- Part No: SCEAF1602622
- Barcode: 5051121274646
- Format: Nitro 4 Stroke
