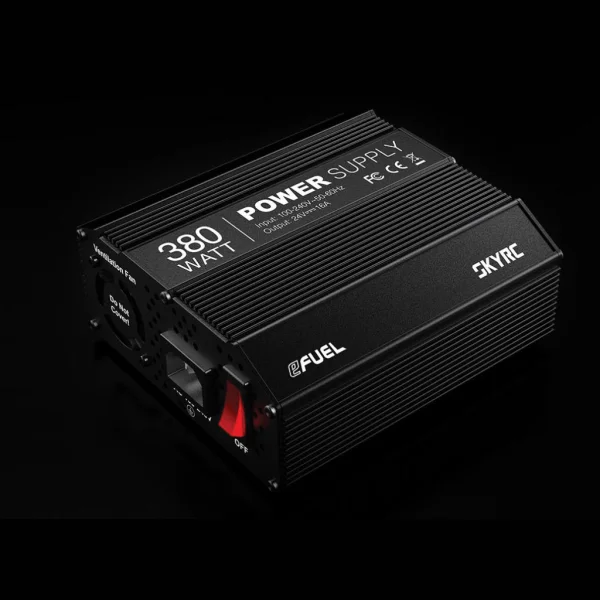

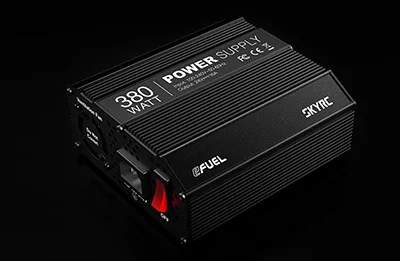

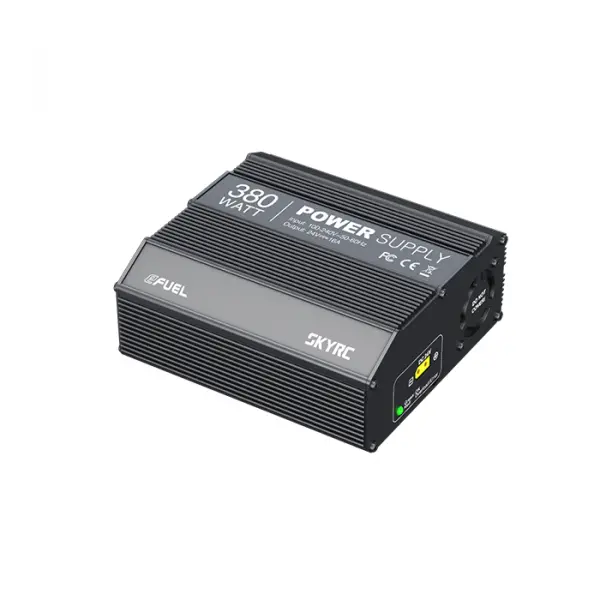

SKY RC 380W 24v Power Supply
Brand: SkyRC
Part No: SCH-SK-200023
Shadow Stock: Usually ships within 2 days
The SkyRC 380W 24V Power Supply (SCH-SK-200023) delivers regulated 24V DC at up to 16A continuous output, converting standard 100–240V AC household power for reliable bench and field charging. Built for demanding pocket chargers, this compact, high-efficiency unit offers stable performance for RC charging needs.
Key Features
- Input: 100–240V AC; Output: 24V DC up to 16A (380W continuous)
- Active PFC for improved power utilisation and efficiency
- Intelligent air cooling with automatic fan activation at 50°C
- Comprehensive protection suite: short-circuit (output), over-current, over-temperature, overload and over-voltage
- Overload/error indication with red LED; output may shut down to protect circuitry
- Designed, tested and approved to meet worldwide safety and EMC standards when used as intended
- Each unit undergoes rigorous testing beyond typical industry standards
Suggested Compatibility
- SkyRC SK-100134 B6 Nano Charger (suggested compatibility)
Combining robust protections with Active PFC and smart cooling, the SkyRC 380W/16A regulated PSU offers dependable power delivery for RC chargers and bench use, with the quality and assurance associated with SkyRC.
Secured by Stripe
Built for most demanding pocket charger the SK-100134 B6 Nano Charger
Converts standard household power 100-240V AC to 24V DC power and supply up to 16 amperes of continuous power.
Short-circuit - protection on output
Over Current - Protection
Over Temperature - Protection
Over Load - Protection
Over Voltage - Protection
Active PFC
Active PFC is the use of power electronics to change the waveform of current drawn by a load to improve the power factor, thus achieving the purpose of higher efficiency.
Active PFC, which is integrated into SkyRC 380W/16A regulated power supply, can provide higher power utilization.
Intelligent Air Cooling System
Adopting the cooling system, the fan will be initiated automatically when operating temperature reaches 50 degree.
Overload/Error Indication
The LED indicator turn red whenever equipment connected to the Power Supply is drawing more power than it can provide. The Power Supply may shut down turning off its output in order to protect its circuitry from damage.
We are Certified,We are Qualified!
SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.
Rigorous testing, derived from the pursuit of quality
Each 380W powr supply must experience dozens of more than the industry standard of critical testing. Each rigorous testing and every detailing are the reflections of SkyRC's concentration on products.
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-200023
- Barcode: 5051294141769
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
That is an AC charger so does not need a power supply.
Yes this should work that charger, you would need the correct lead to link the 2 together.
