Gens Ace iMars Mini USB-C 60W Fast Charger
Brand: Gens Ace
Part No: O-GAC60MINI
In Stock: Usually ships same day

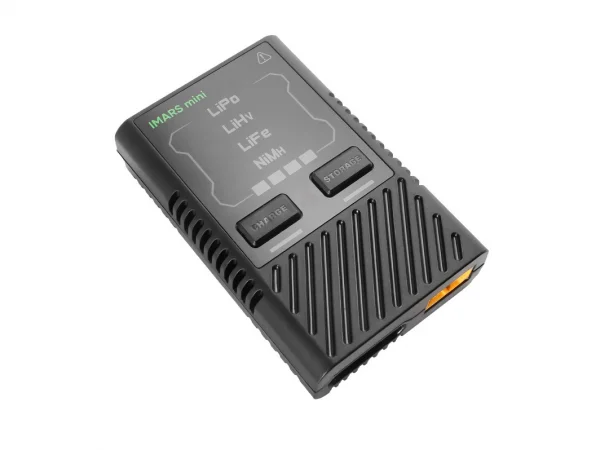

The Gens Ace iMars Mini USB-C 60W Fast Charger (O-GAC60MINI) is a compact, intelligent charger designed for Gens Ace G‑Tech smart batteries and also works with conventional packs. When used with a G‑Tech battery, it detects chemistry, cell count, voltage and the recommended charge current via the smart balance connector, then begins charging automatically after a short 5‑second check. For non-smart batteries, simply select the chemistry and mode; the charger will adjust current intelligently as charging progresses.
Powered via USB‑C with QC/PD support, the iMars Mini is highly portable at just 85 x 55 x 21 mm and around 64 g. It features an automatic storage function, a refreshed interface and a more durable balance connector for everyday RC charging tasks.
Features
- Charges 2–4S LiPo, LiHV, LiFe and 2–12S NiMH batteries
- Recognises G‑Tech smart battery information via IC for safe, easy charging
- Automatic storage function in a small, lightweight design
- New interface and increased balance connector durability
Specifications
- Max charge power: 60W
- Charge current: 1–5A (auto adjustment, max 5A)
- Max storage power: 3W discharge, 60W charge
- Input voltage: 5–20V
- Max input current: DC 3A
- Balance current: 0.4A/cell × 2
- Input port: QC/PD/BC1.2/USB‑C V1.4/SDP/CDP/DCP/Apple 5V/2.4A (does not support 5V/1A adapter input)
- Abnormal battery voltage alarm: Yes
- Supported battery types: LiPo/LiHV/LiFe (2–4S), NiMH (2–12S)
- Dimensions: 85 x 55 x 21 mm
- Net weight: approx. 64 g

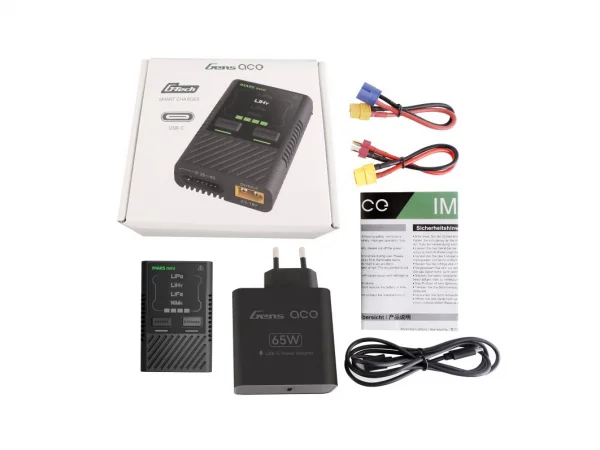

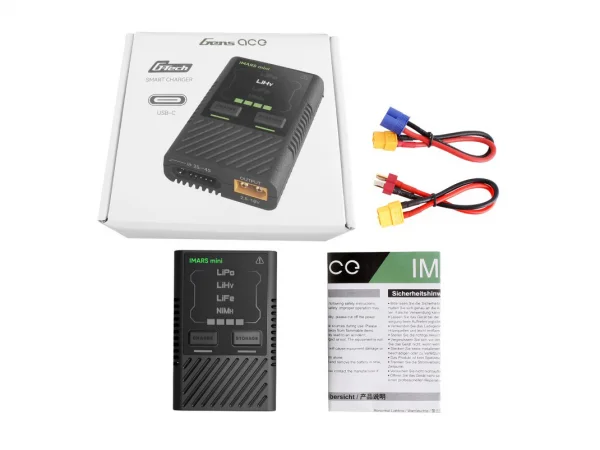

What’s In The Box
- Imars Mini 60W Smart Charger
- XT60 female to EC3 male adapter
- XT60 female to Deans male adapter
- Product manual
Required To Complete
- 65W power supply
Secured by Stripe
The Gens ace Imars Mini Charger is an Intelligent Charger designed for the Gens ace G-Tech smart battery, which is also compatible with non-smart batteries.
It is the first member of the Gens ace G-Tech Smart Eco, when the Gens ace G-Tech battery is connected to the Imars Mini charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. The charger will start charging in 5 seconds automatically after G-Tech smart battery is connected.
For non-smart batteries, it's necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently adjust the charging current according to the charging voltage flow of the battery.
Product Features:
- Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
- Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
- Automatic storage function, it's the smallest charger with auto storage.
- New interface design and increased balance connector durability.
- Small & lightweight, portable design.
Specification:
- Max. Charge Power: 60W
- Charge Current: 1-5A, Max. 5A(Auto Adjustment)
- Max. Storage Power: 3W discharge, 60W charge
- Input Voltage: 5-20V
- Max. Input Current: DC 3A
- Balance Current: 0.4A/Cell X 2
- Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A (Does not support 5V/1A adapter input)
- Abnormal Battery Voltage Alarm: Yes
- Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)
- Dimension: 85 x 55 x 21mm
- Net Weight: Approx. 64g
What's in the box:
- (1) Imars Mini 60W Smart Charger
- (1) XT60 female to EC3 male adapter
- (1) XT60 female to Deans male adapter
- (1) Product Manual
Required to complete
- 65W Power Supply
Key Info:
- Brand: Gens Ace
- Part No: O-GAC60MINI
- Barcode: 6928493308356
- Input Voltage:
• 240V (UK mains)
• USB - Included Connectors:
• Deans
• EC3
• XT60 - Chemistry:
• LiPo
• NiMh / NiCd - Fitment: Option Part
