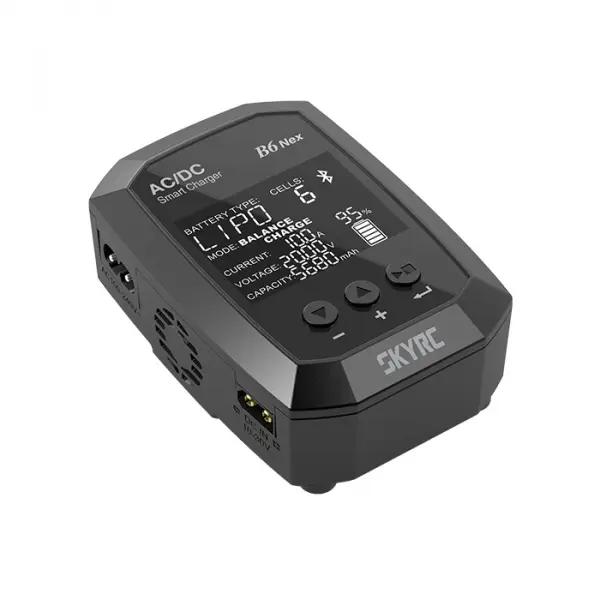

SKY RC B6 Nex AC/DC 10A Charger
Brand: SkyRC
Part No: SCH-SK-100174
Out Of Stock
Request Stock NotificationThe SkyRC B6 Nex is a compact, high-performance AC/DC balance charger for RC hobby batteries, building on the heritage of the iMax B6. With up to 10A charge current and power delivery of 200W on DC or 50W on AC, it offers fast, flexible charging across popular chemistries. Built-in Bluetooth 5.0 connects to the SkyRC app for convenient notifications and firmware updates, making day-to-day charging simpler and more informed.
Key Features
- AC/DC dual power input: AC 100–240V (50–60Hz) and DC 10–30V
- Max charge current up to 10A; power up to 200W (DC) / 50W (AC)
- Multi-chemistry support: LiPo, LiIon, LiFe, LiHV, NiMH, NiCd, and Pb (lead acid)
- Battery ranges: LiPo/LiIon/LiFe/LiHV 1–6 cells; NiMH/NiCd 1–15 cells; Pb 1–10S (2–20V)
- Bluetooth 5.0 with smartphone app notifications and firmware upgrade support
- Balance charging for 1–6 cells with 1000mA/cell balance current
- Charge methods: CC/CV for lithium and Pb; delta-peak sensitivity for NiMH/NiCd
- Discharge up to 2A (10W) with adjustable cut-off parameters
- Max safety timer adjustable from 1–720 minutes or off
Charge and Discharge Parameters
- Charge current: 0.1–10.0A; Discharge current: 0.1–2.0A
- Charge voltage per cell: LiPo 4.18–4.25V; LiIon 4.08–4.2V; LiFe 3.58–3.7V; LiHV 4.25–4.35V; Pb 2.4V
- Discharge cut-off per cell: LiPo 3.0–3.3V; LiIon 2.9–3.2V; LiFe 2.6–2.9V; LiHV 3.1–3.4V; Pb 1.8V; NiMH/NiCd 0.1–1.1V
Engineered for versatility and convenience, the SkyRC B6 Nex AC/DC 10A Charger (SCH-SK-100174) is a practical choice for hobbyists who need reliable, app-enabled charging for a wide range of RC battery types.
Secured by Stripe
From SKY RC is this small, fantastic looking B6 Nex AC/DC charger.
Building on the success of the iconic legendary iMax B6, the SkyRC B6 Nex, is a high-performance solution designed for hobbyists.
With the dual power AC/DC input, the B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A. The built-in Bluetooth 5.0 enables B6 Nex's connectivity with smartphones. The app can push notifications reminding users that charge or discharge is completed or there is a firmware upgrade. With the B6 Nex, charging becomes a faster and more convenient experience!
AC/DC Dual Power Input
B6 Nex comes with both AC and DC power input, which is useful in different circumstances.
Multi-purpose for Most Battery Chemistries
The charger comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid).
Specifications
Power
DC Input : 10-30V
Charge: 200W
Discharge: 10W
AC Input: 100-240V(50-60HZ)
Charge: 50W
Discharge: 10W
Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 1-10S(2-20V)
Battery Capacity Range:
NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
Pb: 2.4V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
Pb: 1.8V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-10.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 1-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method:CC/CV for lithium types and lead(Pb) batteries. Delta-peak Sensitivity for NiMH/NiCd.
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-100174
- Barcode: 5051294172176
- Input Voltage:
• 12V
• 240V (UK mains) - Chemistry:
• LiPo
• NiMh / NiCd
• Sealed Lead Acid - Included Connectors:
• XH LiPo Balancers
• XT60
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes, it does have a cycle charge/discharge feature of 1 to 5 cycles
