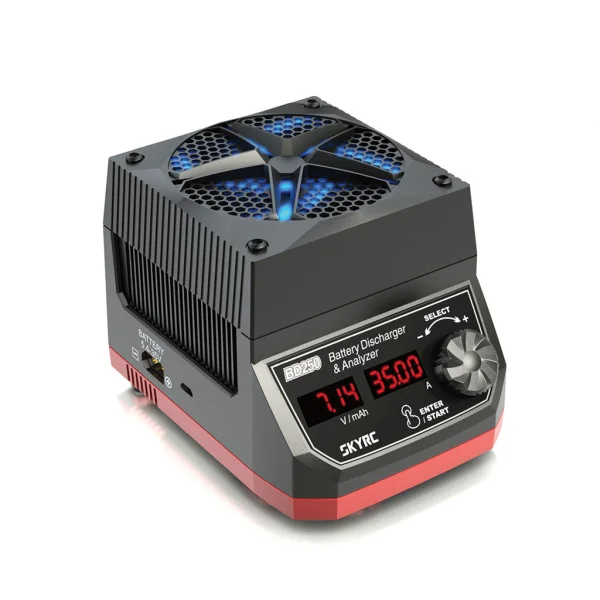

SKY RC BD250 Discharger And Analyzer

Brand: SkyRC

Part No: SCH-SK-600133-01

(1 rating)

£83.69 ~~RRP £89.99~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The SkyRC BD250 Discharger & Analyser (part number SCH-SK-600133-01) delivers up to 250W and 35A in a compact, stand-alone unit. Building on the BD200, it adds robust hardware and precise measurement to help evaluate pack health, manage storage discharges and optimise performance.

Key Features

Upgraded from BD200 for improved performance and durability
Stand-alone battery discharger and analyser with real-time readouts
Up to 250W continuous power and 0.01–35.00A discharge current
Displays voltage, discharged capacity and discharge current
High-performance cooling for sustained high-load discharging
Quality IXYS MOSFETs for reliable, continuous 250W operation
Helpful for capacity testing, preparing packs for storage and competition use

Specifications

Accepted voltage range: 5.40–35.00V (not suitable for 1S LiPo)
Low voltage alert: <5.2V
High voltage alert: >35V
Max discharge power: 250W
Discharge current range: 0.01–35.00A
Dimensions: 136.6 × 104.8 × 107mm
Weight: 879g

What’s Included

BD250 discharger
Discharging cable with XT60 connector
Spare fuse
Instructions

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Introducing the SKY RC BD250 Discharger. Giving upto 250W / 35A of discharging power in a stand alone unit. SIMPLE, ROBUST, AND POWERFUL Upgraded from BD200, BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity. It takes the guesswork out of

Introducing the SKY RC BD250 Discharger.
Giving upto 250W / 35A of discharging power in a stand alone unit.
SIMPLE, ROBUST, AND POWERFUL
Upgraded from BD200, BD250 is not only a powerful discharging device but also a precise measurement tool for battery capacity. It takes the guesswork out of choosing the good-performance battery for your application. BD250 offers a maximum of 250 Watts/35 Amps to discharge your battery and will test virtually any battery type or size, any chemistry cells. It's stylish but small with a high-performance cooling system and uses MOSFETS from the well-known IXYS, to make sure it can discharge at 250 watts continuously.

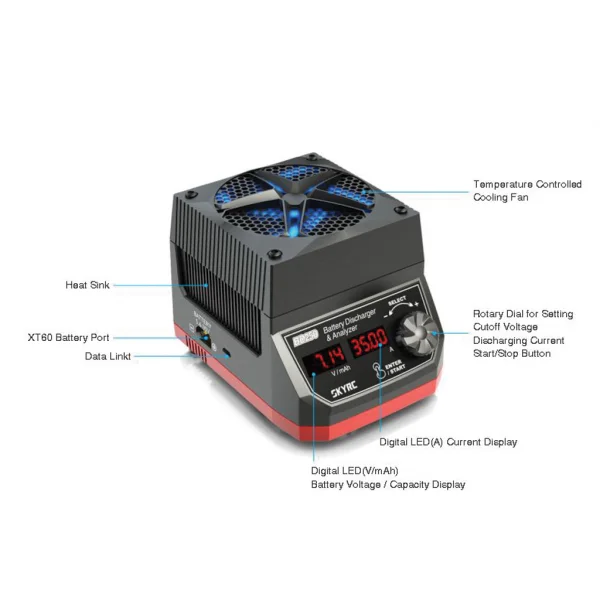

Battery Discharger & Analyzer
It displays real-time battery voltage, discharged capacity and discharge current.
It can test battery capacity that helps select batteries with the desired capacity.
It saves time when users wish to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.

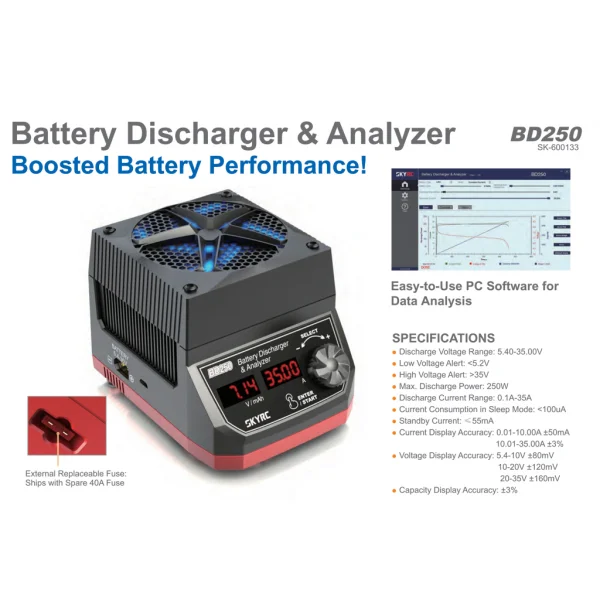

Specifications
Size and Weight
Dimension: 136.6x104.8x107mm
Weight: 879g
Power
Accepted Voltage Range: 5.40-35.00V (Not suitable for 1S LiPo's)
Low Voltage Alert: <5.2V
High Voltage Alert: >35V Max.
Discharge Power: 250W
Discharge
Discharge Current Range: 0.01A-35.00A
Discharge Power: 250W
Includes; discharger, discharging cable with XT60 connector, spare fuse and instructions.

Key Info:

Brand: SkyRC
Part No: SCH-SK-600133-01
Barcode: 5051294162122
Chemistry: LiPo
Included Connectors: XT60

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

5/5 (1 reviews)

Bearded RC

14th February 2023

Invalualbel tool. Use it every time I get a new pack while plugged into a pc to check the pack its healthy and gives its stated capacity. And the fastest way to get a full pack down to storage voltage.
