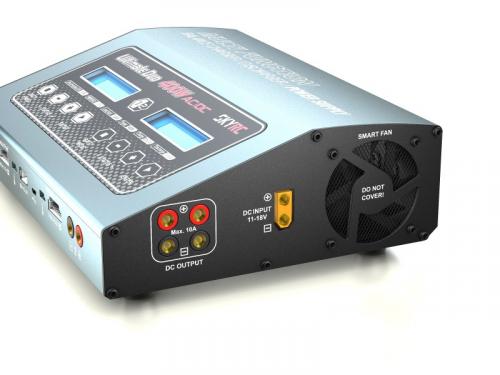

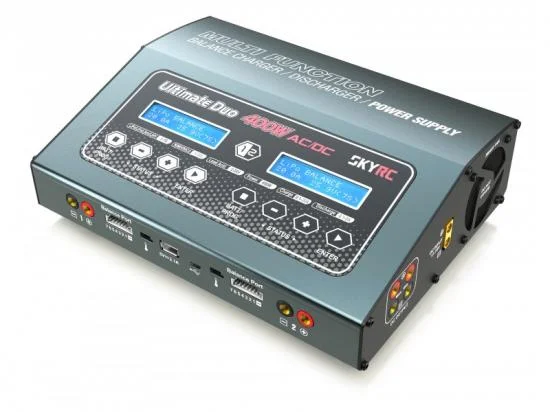

Sky RC D400 400 Watt 20A AC/DC Charger

The SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in AC/DC mode to get the maximum charging power to shorten charging time. The D400 can also supply 150W on DC which users can use it to power DC devices. A synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits.

The SKYRC D400 is compatible with PC and mobile applications to allow for easier monitoring and use.

• SkyCharger App: The Bluetooth 4.0 connectivity allows the user to control and monitor the D400 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, and the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. The D400 and your device will establish a Bluetooth connection automatically.

• Charge Master: The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from the "Charge Master" PC Software.

A unique feature of SKYRC chargers is the Scan To Go automatic charging system. Each battery requires its own dedicated charging process, and it is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident. Scan To Go provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery. Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code, all you need to do is press the Scan button, and the charge or discharge process will start automatically.

SPECIFICATIONS

• Input Voltage AC 100-240V DC 11-18V
• Charge Circuit Power 400W
• Discharge Circuit Power 36W
• Charger Current Range 0.1-20A
• Discharge Circuit Range 0.1-5A
• Current Drain for Balancing Port Max 500mA/cell
• Trickle Charging Current 50mA-300mA & OFF
• DC Power Supply Output 6-15V / Max. 10A
• LiPo/LiFe/LiIon/LiHV Battery Cell Count 1-7S
• NiMH/NiCd Battery Cell Count 1-18S
• Dimensions 258 x 194 x 83mm
• Net Weight 2510g

• Brand: Overlander
• Part No: OL-3202
• Barcode: 6930460003898
• Input Voltage:
  • 12V
  • 240V (UK mains)
• Included Connectors:
  • 4mm Banana Sockets
  • XH LiPo Balancers
• Chemistry:
  • LiPo
  • NiMh / NiCd
