SkyRC Magnetic Switch (SCH-SK-600155)
Brand: SkyRC
Part No: SCH-SK-600155
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the SKY RC Magnetic Switch
Description

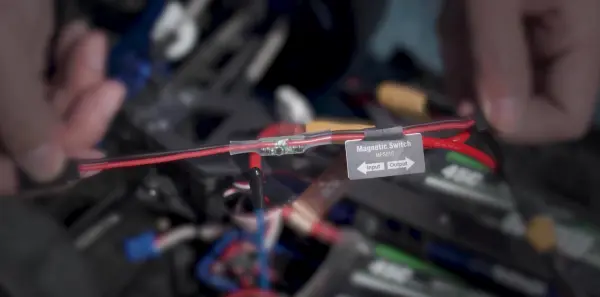

The SkyRC Magnetic Switch (SCH-SK-600155) delivers effortless on/off control for your model with a simple magnetic swipe—no buttons required. Using advanced magnetic sensor technology, it is compact, lightweight and designed to handle high currents. A clear LED faceplate shows ON/OFF status at a glance, while a built-in failsafe adds confidence in use.
Engineered for efficiency, the switch minimises battery drain with ultra‑low standby consumption (OFF: ≤ 5μA; ON: ≤ 3.5 mA). Its power-on state memory helps streamline operation: if power is restored within 10 seconds, it resumes the previous state; after 10 seconds, it resets. Reliable and practical, it suits a wide range of RC applications.
Tech Specs
- Input voltage: DC 3–13V
- Standby current (output OFF): ≤ 5 μA
- Standby current (output ON): ≤ 3.5 mA
- Continuous output current: 7 A
- Peak output current: 10 A
- Magnetic sensing distance: 1.0–1.5 cm
- Power-on state memory: Retains the previous state if powered back within 10 seconds; resets if over 10 seconds
- LED indicator: Green light ON when active; OFF when inactive
Suggested Compatibility
- Sailplanes
- RC cars
- RC boats
Secured by Stripe
SKY RC Magnetic Switch Manuals & Guides
Manuals & Guides
Specifications
Ultra-Low Standby:
Built to Last
In standby mode, the magnetic switch demonstrates exceptional energy efficiency.
Switch OFF: ≤5μA.
Switch ON: ≤3.5mA.
This energy-saving design minimizes battery drain, ensuring prolonged operation even with a small battery. Reliable, efficient, and always ready, the Magnetic Switch is the perfect companion for your RC needs.

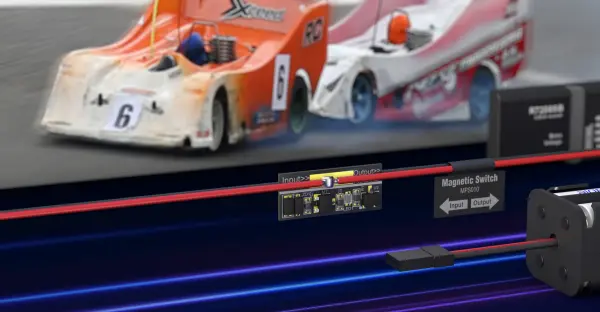

Versatile Applications, Effortless Control.
Built in failsafe
TechSpec;
Input Voltage: DC 3–13V
Standby Current:
Output OFF: ≤5uA
Output ON: ≤3.5mA
Continuous Output Current: 7A
Peak Output Current: 10A
Magnetic Sensing Distance: 1.0–1.5cm
Power-On State Memory: Retains the previous state if powered back within 10 seconds; resets if over 10 seconds.
LED Indicator: Green light ON when active, OFF when inactive.
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-600155
- Barcode: 5051294203962
