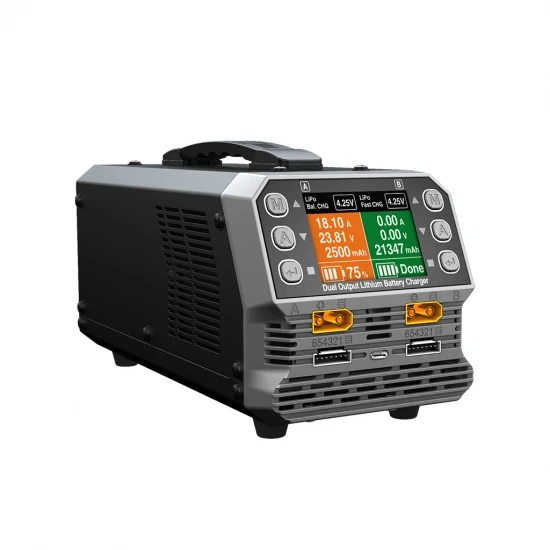

SKY RC PC1080neo AC Charger
Brand: SkyRC
Part No: SCH-SK-100220
€269.69
RRP €289.99
Shadow Stock: Usually ships within 2 days
The SkyRC PC1080neo AC Charger (SCH-SK-100220) is a dual-output, 1080W powerhouse engineered for high-demand lithium charging. Designed for professional UAV and RC applications, it delivers up to 540W per channel with precise control, efficient energy conversion and robust thermal management, helping you keep fleets mission-ready with confidence.
Powered by an ARM Cortex-M3 and featuring a vivid 2.8-inch 320×240 colour display angled at 65°, the PC1080neo makes setup and operation clear and intuitive. Active PFC, a universal 100–240V AC input and a durable cooling design combine performance with efficiency for dependable, everyday use.
Key Features
- 1080W total output (540W per channel) across two independent ports
- Supports 6S LiPo and LiHV packs with adjustable cut-off: LiPo 4.15–4.25V/cell; LiHV 4.25–4.50V/cell
- Charge current: 1.0–20.0A; balance current: 200–1800mA
- Fast Charge, Balance Charge and Storage working modes
- ARM Cortex‑M3 control with precision of ±20 mV/cell (Fast) and ±10 mV/cell (Balance)
- 2.8-inch colour display (320×240) with clear, user-friendly interface
- Active PFC and approximately 90% energy conversion efficiency
- Multilingual interface: English, Dutch, Chinese, French, Spanish and Japanese
- USB Type‑C port for firmware updates via Charger Master on Windows or macOS
- Efficient airflow with optimised intakes and wing-shaped fan blades; integrated carry handle
- Wide 100–240V AC input for worldwide operation
Specifications
- Size: 255 × 124.6 × 120 mm
- Weight: 2.43 kg
- AC input: 100–240V, 50/60Hz
- Charge power: 1080W (540W × 2)
- Battery types: 6S LiPo/LiHV
- Charge current: 1.0–20.0A
- Balance current: 200–1800mA
- Cut-off voltage: LiPo 4.15–4.25V/cell (default 4.20V); LiHV 4.25–4.50V/cell (default 4.35V)
- Storage voltage: 3.90V ±0.05V/cell
- Working temperature/humidity: 0–40°C; 5–75% RH (non‑condensing)
- Storage temperature/humidity: −10–70°C; 5–75% RH (non‑condensing)
Suggested Compatibility & Expansion
- Suggested compatibility with the SkyRC Charging Hub G630neo, which can expand each port to manage up to six batteries with smart detection and automatic switching.
Important Notes
- When using higher LiHV voltages (above 4.35V/cell), ensure your batteries explicitly support the selected range and follow the manufacturer’s guidance.
Secure Payments
Secured by Stripe
Dual Output Lithium Battery Charger Engineered for Power, Reinvented!
For over a decade, the SkyRC PC1080 Dual-Channel 6S LiPo Charger has fueled industries like agriculture, forestry, surveying, and public safety, keeping UAVs charged and mission-ready in the most demanding environments.
Now, meet the PC1080neo—where cutting-edge performance and unmatched efficiency redefine industry standards.
Charge with confidence. Deliver with precision.
Productivity Perfected Efficiency Delivered!
With a total output of 1080W and up to 540W per channel (±10%), this charger is designed to handle high-performance tasks effortlessly. Featuring a balancing current of up to 1800mA and an impressive energy conversion efficiency of 90%, it ensures peak productivity while maintaining reliable and efficient operation.

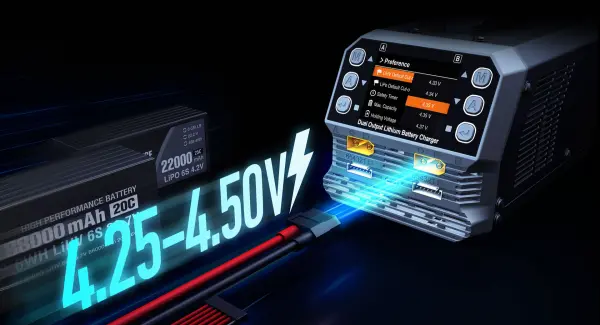

LiHV Ready Adjustable 4.25–4.50V*
This neo powerhouse is compatible with both LiPo and LiHV batteries, featuring an adjustable voltage range of 4.25V to 4.50V*. This flexibility caters to a variety of charging requirements while ensuring optimal safety and performance.
*Warning: Higher voltage settings increase the risk of damage or overheating. Ensure your batteries explicitly support the selected voltage range before charging. Always follow the manufacturer’s guidelines to prioritize safety.
Storage Mode Adaptable for Every Scenario
Fast Charge: Prioritizes charging speed for efficient completion.
Balance Charge: Ensures balanced cell charging for optimal performance.
Storage: Precisely adjusts voltage to prepare batteries for long-term storage.

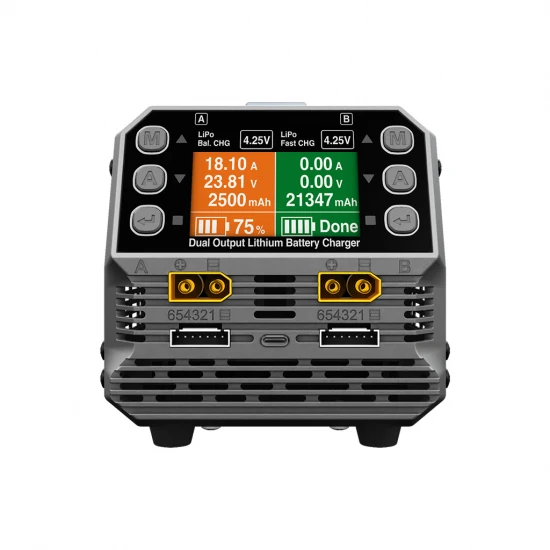

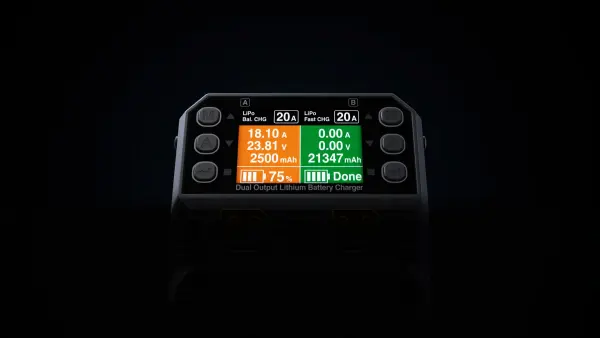

Vivid Display Intuitive Control
Featuring a 2.8-inch 320x240 color display with a 65º angled design, perfectly aligned with your line of sight. the clear and intuitive interface makes operation effortless. Simply select a mode, press the start button, and let the charging begin.
Simple, efficient, and hassle-free.
Cortex-M3 at the Core
- Precision Meets Power
- ±20 mV/Cell
- Fast Charge (Fast CHG)
- ±10 mV/Cell
- Balance Charge (Bal. Chg)
- Powered by the ARM Cortex-M3 processor, the PC1080neo delivers seamless performance, precise control, and unwavering stability.The result? A smarter, smoother charging experience every time.
Storage Mode Long Live Lithium
When your power packs take a break, PC1080neo steps in with Storage Mode, adjusting the battery to its ideal voltage. This ensures your lithium cells stay healthy and ready for action, even during downtime.
A Winning Duo Co-Piloted by Charging Hub
The Charging Hub (G630neo)* expands each port to support 6 batteries, with dual ports handling up to 12. It smartly detects battery levels, prioritizes charging, and switches automatically when full. Paired with the PC1080neo, it delivers efficient, flexible solutions for high-capacity and precise charging.
Active PFC Stable and Efficient
Active PFC automatically corrects AC input voltage for enhanced stability and reduced grid interference. With wide AC input support and industrial-grade design, it achieves 90% conversion efficiency, combining performance with energy savings.
Perfection in Every Detail
Front Panel Aesthetics Meet Cooling
Carefully arranged air intakes blend industrial design with functional elegance, achieving a perfect balance of sleek looks and efficient heat dissipation.
Fan Efficient Cooling
Wing-shaped blades deliver powerful airflow, ensuring stable and reliable performance under any conditions.
Portability. Thoughtful
With a built-in handle, this charger is designed for effortless mobility, making it easy to carry wherever you go.
Universal Voltage Worldwide Charging
PC1080neo works effortlessly within a 100V to 240V range, adapting to power standards worldwide. Wherever you go, it’s ready to keep your drone powered up.
Charge in Your Language
Easily localized and user-friendly, the charger interface is available in English, Dutch, Chinese, French, Spanish and Japanese. Change the language with a few simple clicks for a comfortable charging experience.
Engineered for Safety
Multiple safety protections ensure the secure operation.
Better Over Time:
Upgrade Firmware Hassle-Free
Easily upgrade your charger with the free Charger Master app on Windows or macOS via the Type-C port. Receive real-time update notifications, improve compatibility, and enhance performance—ensuring your charger operates smoother than ever!
SPECIFICATIONS
Size and Weight
Size: 255x124.6x120mm
Weight: 2.43kg
Power
AC Input: 100V ~ 240V 50/60Hz
Charge Power: 1080W (540W x 2)
Battery
LiPo/LiHV: 6S
Charge/Discharge
Charge Current: 1.0A ~ 20.0A
Balance Current: 200mA ~ 1800mA
Working Mode: Fast Charge, Balance Charge, Storage
Cut-off Voltage:
LiPo: 4.15V ~ 4.25V/Cell (Default: 4.20V)
LiHV: 4.25V ~ 4.50V/Cell (Default: 4.35V)
Storage Voltage: LiPo/LiHV: 3.90V ±0.05V/Cell
Working and Storage
Working Temperature: 0℃ ~ 40℃
Working Humidity: 5% ~ 75% RH (Non-condensing)
Storage Temperature: -10℃ ~ 70℃
Storage Humidity: 5% ~ 75% RH (Non-condensing)
Key Info:
For over a decade, the SkyRC PC1080 Dual-Channel 6S LiPo Charger has fueled industries like agriculture, forestry, surveying, and public safety, keeping UAVs charged and mission-ready in the most demanding environments.
Now, meet the PC1080neo—where cutting-edge performance and unmatched efficiency redefine industry standards.
Charge with confidence. Deliver with precision.
Productivity Perfected Efficiency Delivered!
With a total output of 1080W and up to 540W per channel (±10%), this charger is designed to handle high-performance tasks effortlessly. Featuring a balancing current of up to 1800mA and an impressive energy conversion efficiency of 90%, it ensures peak productivity while maintaining reliable and efficient operation.
LiHV Ready Adjustable 4.25–4.50V*
This neo powerhouse is compatible with both LiPo and LiHV batteries, featuring an adjustable voltage range of 4.25V to 4.50V*. This flexibility caters to a variety of charging requirements while ensuring optimal safety and performance.
*Warning: Higher voltage settings increase the risk of damage or overheating. Ensure your batteries explicitly support the selected voltage range before charging. Always follow the manufacturer’s guidelines to prioritize safety.
Storage Mode Adaptable for Every Scenario
Fast Charge: Prioritizes charging speed for efficient completion.
Balance Charge: Ensures balanced cell charging for optimal performance.
Storage: Precisely adjusts voltage to prepare batteries for long-term storage.
Vivid Display Intuitive Control
Featuring a 2.8-inch 320x240 color display with a 65º angled design, perfectly aligned with your line of sight. the clear and intuitive interface makes operation effortless. Simply select a mode, press the start button, and let the charging begin.
Simple, efficient, and hassle-free.
Cortex-M3 at the Core
- Precision Meets Power
- ±20 mV/Cell
- Fast Charge (Fast CHG)
- ±10 mV/Cell
- Balance Charge (Bal. Chg)
- Powered by the ARM Cortex-M3 processor, the PC1080neo delivers seamless performance, precise control, and unwavering stability.The result? A smarter, smoother charging experience every time.
Storage Mode Long Live Lithium
When your power packs take a break, PC1080neo steps in with Storage Mode, adjusting the battery to its ideal voltage. This ensures your lithium cells stay healthy and ready for action, even during downtime.
A Winning Duo Co-Piloted by Charging Hub
The Charging Hub (G630neo)* expands each port to support 6 batteries, with dual ports handling up to 12. It smartly detects battery levels, prioritizes charging, and switches automatically when full. Paired with the PC1080neo, it delivers efficient, flexible solutions for high-capacity and precise charging.
Active PFC Stable and Efficient
Active PFC automatically corrects AC input voltage for enhanced stability and reduced grid interference. With wide AC input support and industrial-grade design, it achieves 90% conversion efficiency, combining performance with energy savings.
Perfection in Every Detail
Front Panel Aesthetics Meet Cooling
Carefully arranged air intakes blend industrial design with functional elegance, achieving a perfect balance of sleek looks and efficient heat dissipation.
Fan Efficient Cooling
Wing-shaped blades deliver powerful airflow, ensuring stable and reliable performance under any conditions.
Portability. Thoughtful
With a built-in handle, this charger is designed for effortless mobility, making it easy to carry wherever you go.
Universal Voltage Worldwide Charging
PC1080neo works effortlessly within a 100V to 240V range, adapting to power standards worldwide. Wherever you go, it’s ready to keep your drone powered up.
Charge in Your Language
Easily localized and user-friendly, the charger interface is available in English, Dutch, Chinese, French, Spanish and Japanese. Change the language with a few simple clicks for a comfortable charging experience.
Engineered for Safety
Multiple safety protections ensure the secure operation.
Better Over Time:
Upgrade Firmware Hassle-Free
Easily upgrade your charger with the free Charger Master app on Windows or macOS via the Type-C port. Receive real-time update notifications, improve compatibility, and enhance performance—ensuring your charger operates smoother than ever!
SPECIFICATIONS
Size and Weight
Size: 255x124.6x120mm
Weight: 2.43kg
Power
AC Input: 100V ~ 240V 50/60Hz
Charge Power: 1080W (540W x 2)
Battery
LiPo/LiHV: 6S
Charge/Discharge
Charge Current: 1.0A ~ 20.0A
Balance Current: 200mA ~ 1800mA
Working Mode: Fast Charge, Balance Charge, Storage
Cut-off Voltage:
LiPo: 4.15V ~ 4.25V/Cell (Default: 4.20V)
LiHV: 4.25V ~ 4.50V/Cell (Default: 4.35V)
Storage Voltage: LiPo/LiHV: 3.90V ±0.05V/Cell
Working and Storage
Working Temperature: 0℃ ~ 40℃
Working Humidity: 5% ~ 75% RH (Non-condensing)
Storage Temperature: -10℃ ~ 70℃
Storage Humidity: 5% ~ 75% RH (Non-condensing)
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-100220
- Barcode: 5051294213336
- Input Voltage: 240V (UK mains)
- Chemistry:
• LiPo
• NiMh / NiCd - Included Connectors:
• XH LiPo Balancers
• XT60
