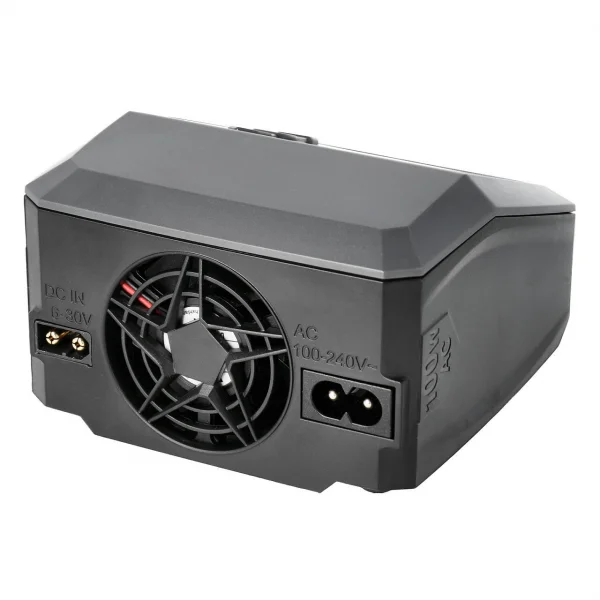

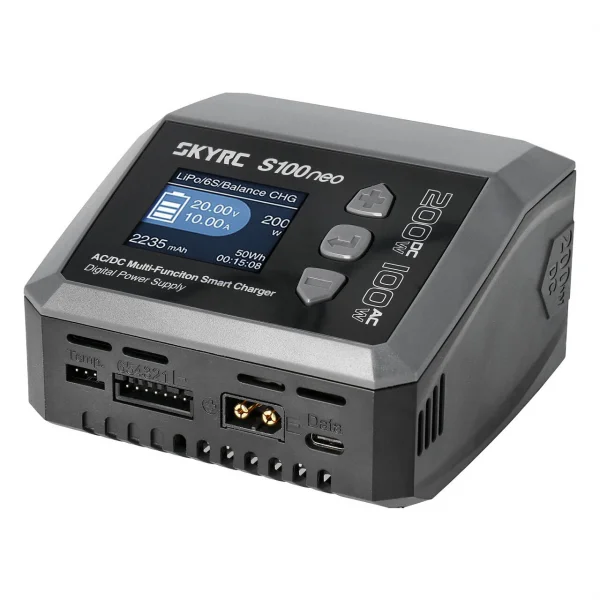

SKY RC S100neo AC/DC Charger

Brand: SkyRC

Part No: SCH-SK-100202

£46.49 ~~RRP £49.99~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The SkyRC S100neo (SCH-SK-100202) is a compact, power-packed AC/DC charger infused with SkyRC’s latest neo technology for enhanced efficiency. Ideal for pit tables or field use, it delivers up to 100W when powered from AC and up to 200W from a DC source via an XT60 input. A clear 1.77 inch TN colour display provides easy access to key settings and status.

Key Features

Dual power input: AC 100–240V; DC 10–30V (XT60)
Output power: up to 100W on AC; up to 200W on DC
Charge current: 0.1–12.0A
Discharge current: 0.1–2.0A
Max. discharge power: 20W based on 6S (4.2V/S)
Balance current (Li batteries): up to 1000mA
1.77 inch TN display, 128×160 resolution, 262K colours
Compact plastic case: 105×105×62mm; weight 340g

Supported Battery Types

LiPo/LiHV/LiFe/LiIon: 1–6 cells
NiMH/NiCd: 1–15 cells
Pb: 3S/6S/12S

Technical Specifications

AC input voltage: 100–240V, 50/60Hz
DC input voltage: 10–30V
Panel active area: 28.03×35.04mm

Operation Modes

LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge–discharge, Cycle discharge–charge, Repeat charge
P b: Normal, Standard charge, Low-temperature charge, AGM charge/discharge

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Infused with SKYs latest 'neo' technology for enhanced efficiency and power, S100neo is masterfully engineered to offer a highly focused and remarkably efficient charging experience, yet it remains power-packed.
With dual power input, S100neo effortlessly provides up to 100W from an AC source and excels with a potent 200W output on a de facto standard XT60 DC plug for RC hobbyists.
This versatility ensures that S100neo meets a wide range of charging demands, whether at your pit table or in the field.

Size and Weight
Case Material: Plastic
Case Size: 105*105*62mm
Weight: 340g

Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K

Power
DC Input Voltage: 10-30V
AC Input Voltage : 100-240V

Charger power:
DC Input Voltage: 6-30V
AC Input Voltage: 100-240V 50/60Hz

Discharge power:
Max. 20W based on 6S(4.2V/S)

Battery
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S/12S

Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-12.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

Balance current
LiPo/LiFe/LiIon/LiHV：Max. 1000mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low-temperature charge, AGM charge/discharge

Key Info:

Brand: SkyRC
Part No: SCH-SK-100202
Barcode: 5051294188986
Input Voltage:
• 12V
• 240V (UK mains)
Chemistry:
• LiPo
• NiMh / NiCd
• Sealed Lead Acid
Included Connectors:
• XH LiPo Balancers
• XT60
