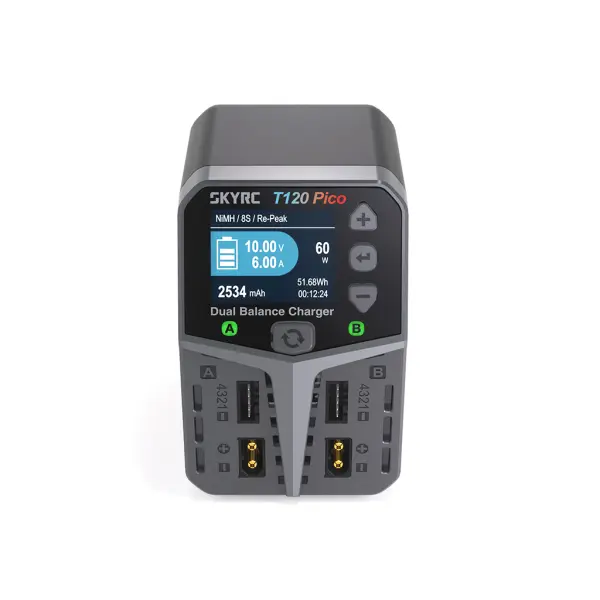

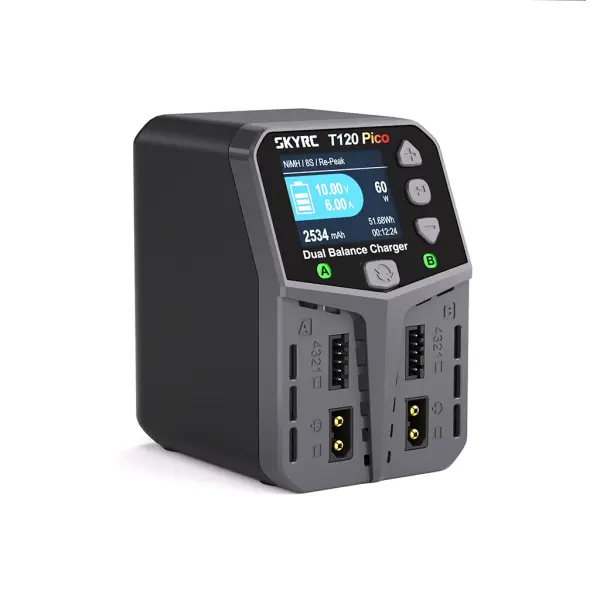

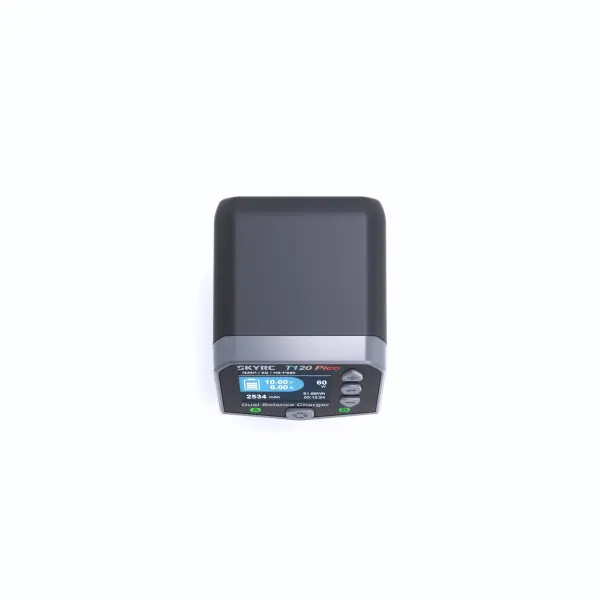

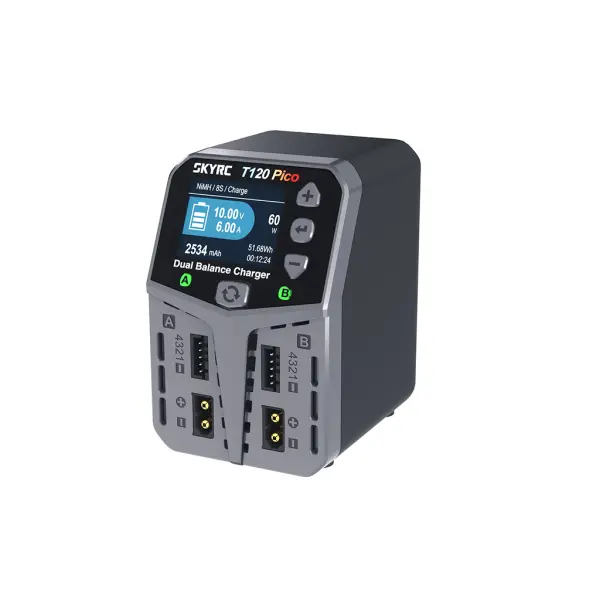

SkyRC T120 Pico AC/DC Charger SCH-SK-100236-01
Brand: SkyRC
Part No: SCH-SK-100236-01
Expected Thu 29 Oct
Request Stock NotificationCustomers Also Buy
Popular with customers who buy products like the SKY RC T120 Pico AC/DC Charger
Description
The SkyRC T120 Pico AC/DC Charger, part number SCH-SK-100236-01, is a compact dual-channel charger for a range of rechargeable battery chemistries. Its two independent outputs provide up to 120W of total AC power, with up to 60W available through each channel, allowing two batteries to be charged at the same time. Charging current is adjustable up to 6A.
The charger supports LiPo, LiFe, Li-ion, LiHV, Pb, NiMH and NiCd batteries. For lithium packs, the main output and balance port monitor individual cell voltage during charging, with balance charging, standard charging and storage modes available. NiMH and NiCd batteries can use charge or re-peak modes, while Pb batteries support normal, AGM and cold charging.
A built-in balance port also supports storage discharge at up to 9W, with a maximum discharge current of 500mA. The charger can measure internal resistance to provide information about battery condition and discharge performance. Its Arm Cortex-M3 processor controls the charging process, while an integrated temperature sensor adjusts the cooling fan according to load and temperature.
As well as charging batteries, the T120 Pico can operate as a DC power supply. Its adjustable output covers 6–17V with a current range of 0.5–6A. Protection functions include short-circuit, capacity, time-out, reverse-polarity, cut-off, over-voltage and overload protection, with a flame-retardant chassis also specified.
The ColorX interface uses a light cyan and green display design with responsive menus and clear icons. The interface supports English, Simplified Chinese, German, Spanish, French and Japanese, allowing the operating language to be changed through the charger menu.
Specifications
- Dimensions: 90 × 70 × 106 mm
- Weight: 355 g
- AC input: 100–240V, 50/60Hz
- AC output: 60W × 2, ±10%
- DC power output: 6–17V and 0.5–6A
- Supported batteries: LiHV, LiPo, Li-ion, LiFe, NiMH, NiCd and Pb
- Supported cell counts: 2–4-cell lithium, 6–8-cell NiMH/NiCd, and 3- or 6-cell Pb
- Balance and storage discharge current: up to 500mA
Secured by Stripe
SKY RC T120 Pico AC/DC Charger Manuals & Guides
Manuals & Guides
Specifications
Introducing the SKY RC T120 Pico AC/DC Charger.
PICO in Size. Powerful by Design.
At just 90 × 70 × 106 mm, it delivers performance far beyond its compact footprint. High-power output, intelligent charging, and broad battery compatibility—all without compromise.
Dual Outputs. Double the Productivity.
T120 Pico features two independent charging channels with up to 120W total AC output and 60W per channel. Charge two batteries simultaneously and get back to flying, driving, or racing sooner.
6A Fast. By Design.
With up to 6A charging current, T120 Pico replenishes your batteries quickly, so you spend less time waiting and more time flying, driving, or racing.
Balanced. Down to Every Cell.
Working together, the main output and balance port continuously monitor and balance the voltage of every cell throughout the charging process, delivering safer, more stable charging while helping extend battery life.
Do More With One Charger!
Multiple Chemistries Go.
With exceptional versatility, T120 Pico can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd. Unlock the full potential of your battery arsenal with T120 Pico – versatility multiplied capability.
Power, Precisely Controlled.
At the heart of T120 Pico is a high-performance Arm® Cortex®-M3 processor, delivering precise charging control and advanced algorithms. Even under high-power operation, it responds quickly and maintains stable, reliable performance.
So Pro So is Digital Power
From charging batteries to powering your equipment, T120 Pico does both. Adjustable 6–17V output and 0.5–6A current make it a capable DC power supply, complete with short-circuit, overload, and reverse-polarity protection.
Discharging Multiplied by Balance Port
The built-in balance port works alongside the main output to boost discharge power to 9W, making battery maintenance faster and more efficient.
Know the Resistance. Know Your Battery.
Instantly measure internal resistance to better understand battery health and discharge performance, so every charge starts with confidence.

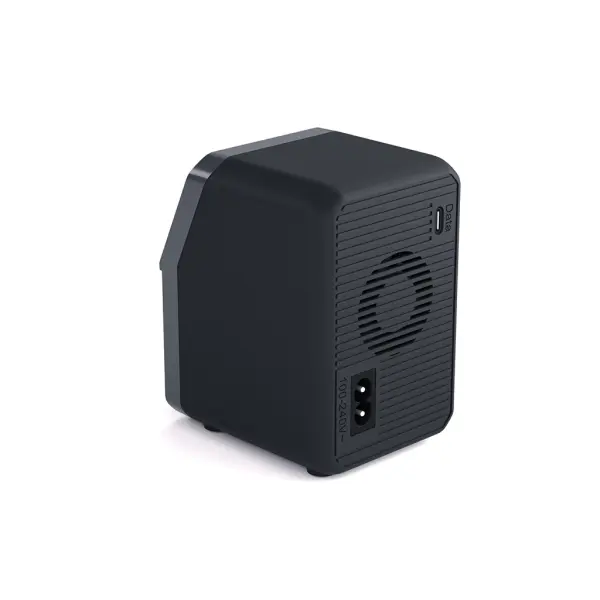

Smart Cooling. Quiet by Design.
An integrated temperature sensor dynamically adjusts fan speed based on load and temperature. It delivers efficient cooling during high-power charging and quiet operation under lighter loads, helping maintain stable 60W performance.
ColorX: Easy to charge, Easy on the eyes.
Discover a new ColorX interface introduced by T120 Pico based on simple and textured visuals! The purpose-designed light cyan and green color scheme is for RC charging. It helps you focus on the setting. The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones! Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI.
Charge in your language
ColorX is designed to be easily localized and comfortably engaged! The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
Engineered for Safety
Multiple safety protections ensure the secure operation:
- Short-circuit Protection
- Capacity Protection
- Time-out Protection
- Reverse Polarity Safeguard
- Cut-off Protection
- Over-voltage Protection
- Flame-retardant Chassis
- Overload Protection
Specifications
- Size and Weight
- Dimensions: 90x70x106mm
- Weight: 355g
- Power
- AC Input: 100V-240V~ 50/60Hz
- Output: 60W×2 (±10%)
- DC Power
- Voltage: 6~17V (±0.2V)
- Current: 0.5A~1A (±0.15A), 1.1~6A (±10%)
- Battery Types/Cells:
- NiMH/NiCd: 6 ~ 8 CELL
- Pb: 3 CELL / 6 CELL
- LiHV/LiPo/Li-ion/LiFe: 2 ~ 4 CELL
- Charge and Discharge
- Working mode:
- LiHV/LiPo/Li-ion/LiFe: Balance Charge / Charge / Storage
- NiMH/NiCd: Charge / Re-Peak
- Pb: Normal / AGM Charge / Cold Charge
- Charge Current
- LiHV/LiPo/Li-ion/LiFe/NiMH/NiCd: 0.1A-1A (±0.15A), 1.1A-6A (±10%)
- Pb: 0.8A-1A (±0.15A), 1.1A-6A (±10%)
- Balance Current: Max 500mA
- Storage Discharge Current: Max 500mA
- Other
- Language: English / 简体中文 / Deutsch / Español / Français / 日本語
- Working and Storage
- Operating temperature: 0℃ - 40℃
- Working humidity: 5% - 75%
- Storage temperature: -10℃ - 70℃
- Storage humidity: 5% - 75%
Key Info:
- Brand: SkyRC
- Part No: SCH-SK-100236-01
- Barcode: 5051294222079
- Input Voltage:
• 12V
• 240V (UK mains) - Chemistry:
• LiPo
• NiMh / NiCd - Included Connectors:
• XH LiPo Balancers
• XT60
