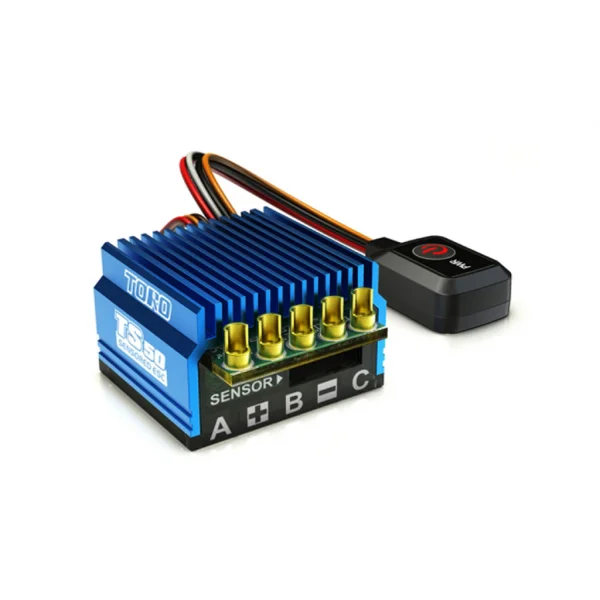

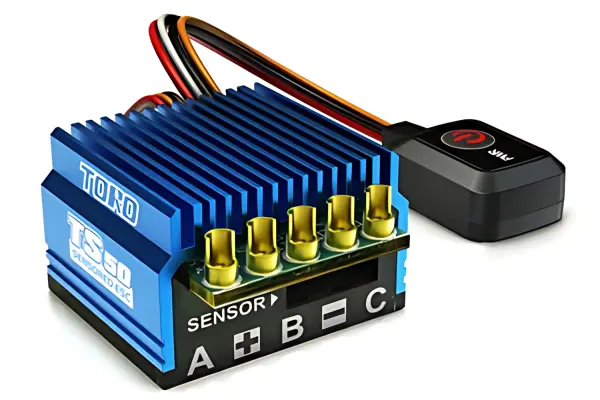

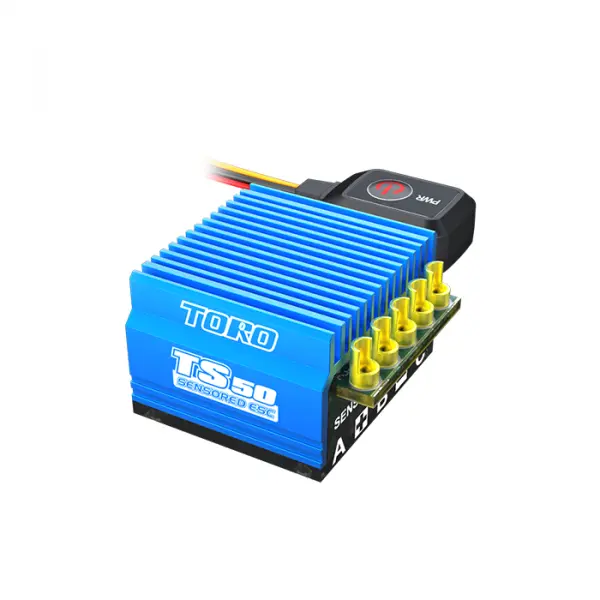

SKY RC Toro TS50A Sensored ESC

The SkyRC Toro TS50A Sensored ESC (SCH-SK-300060) is a compact, lightweight brushless controller designed with smooth throttle and brake control in mind. Supporting both sensored and sensorless motors, it features an electronic power switch, a robust 6V/2A BEC, and accepts 4–6S NiMH or 2S LiPo packs. Fine-tune punch and braking by point or customise the throttle/brake curves for the response you prefer. Firmware updates are supported, and settings can be adjusted via an optional program box or SkyLink on a PC. A cooling fan is supported as an optional part.

Key Features

• Brushless sensored and sensorless motor support
• Electronic power switch for clean installation
• Adjustable punch/brake rate by point
• Custom throttle and brake curves for tailored feel
• Firmware updatable; programmable via program box or SkyLink (PC)
• Optional cooling fan support

Specifications

• Constant/Burst Current: 50A / 300A
• Battery Cell Count: 4–6S NiMH or 2S LiPo
• BEC Output: 6V @ 2A
• Motor Limits (manufacturer quoted): 8.5T (1/10 touring), 11.5T (1/10 buggy)
• Resistance: 0.0006 Ω
• Weight: 60 g

Suggested Compatibility

• 1/10 buggy and touring car platforms
• Brushless motors within the quoted turn limits
