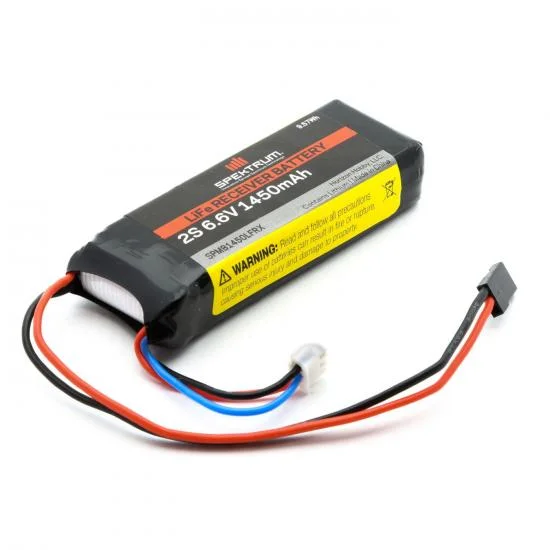

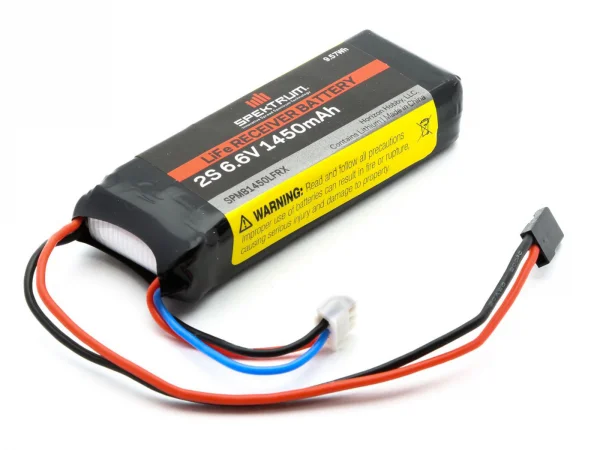

Spektrum LiFe Receiver Battery - 1450mAh 2S 6.6v

The Spektrum SPMB1450LFRX is a compact 2S 6.6V LiFe receiver battery designed for aircraft receiver and aircraft ignition applications. With a 1450mAh capacity and lightweight construction, it offers a practical power solution with straightforward wiring and connections.

This pack features a JR discharge connector on 150mm 20 AWG leads and a 50mm JST-XH balance lead. Charging guidance includes a maximum 1C (1450mA) rate and a standard 0.2C (290mA) rate. The pack delivers a continuous discharge capability rated at 20C/29A. Non-hardcase construction and precise dimensions make installation simple where space is limited.

Specifications

• Application: Aircraft Receiver, Aircraft Ignition
• Battery Type: LiFe (3.3V per cell)
• Battery Voltage: 6.6V
• Capacity: 1450mAh
• Cell Configuration: 2S1P
• Connector Type (Discharge): JR
• Discharge Lead Length: 150mm
• Balance Connector: JST-XH
• Balance Lead Length: 50mm
• Maximum Charge Current: 1450mA
• Maximum Charge Rate: 1C
• Normal/Standard Charge Current: 290mA
• Normal/Standard Charge Rate: 0.2C
• Maximum Continuous Discharge Current: 29A
• Maximum Continuous Discharge Rate: 20C
• Wire Gauge: 20 AWG
• Hard Case: No
• Charge Protection Circuitry: No
• Product Length: 86mm
• Product Width: 32mm
• Product Height: 18mm
• Product Weight: 84 g (2.9 oz)
• Watt Hours: 9.57Wh
