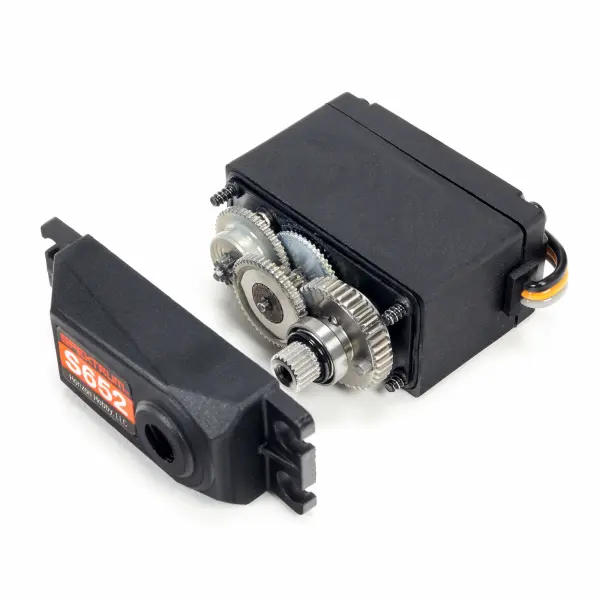

Spektrum S652 18Kg Servo - Steel Gear

The Spektrum S652 (SPMS652) is a high-torque HV servo featuring steel gears, a 23-tooth spline and a compact 40 x 20 x 39 mm footprint. Delivering up to 18.94 kg-cm (263 oz-in) at 7.2V and 16.49 kg-cm (229 oz-in) at 6.0V, it offers precise, reliable control for demanding RC applications.

Operating across 6.0–7.4V, this metal gear servo combines strength and responsiveness in a standard-size case. It’s a solid choice where durability and consistent torque are priorities.

Specifications

• Servo Operating Voltage: 6.0 - 7.4V (HV)
• Input Voltage: 6.0v-7.2v
• Part Type: Electronics
• Product Height: 1.55" (39 mm)
• Spline Count: 23 - Tooth
• Product Width: 0.79" (20 mm)
• Maximum Servo Torque: 229oz-in, 16.49kg-cm at 6v, 263oz-in, 18.94kg-cm at 7.2v
• Product Length: 1.58" (40 mm)
• Gear Type: Metal
