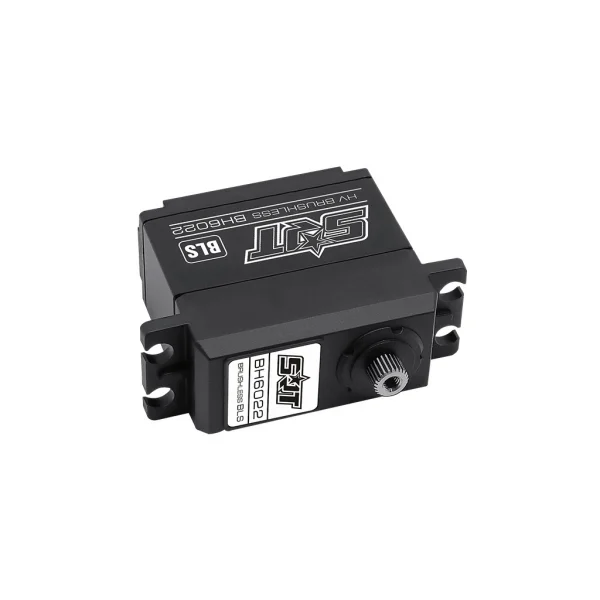

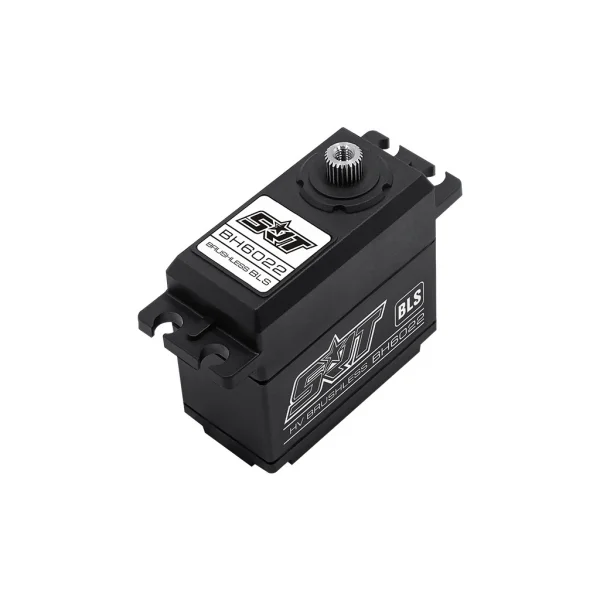

SRT 6022 HV Brushless Servo

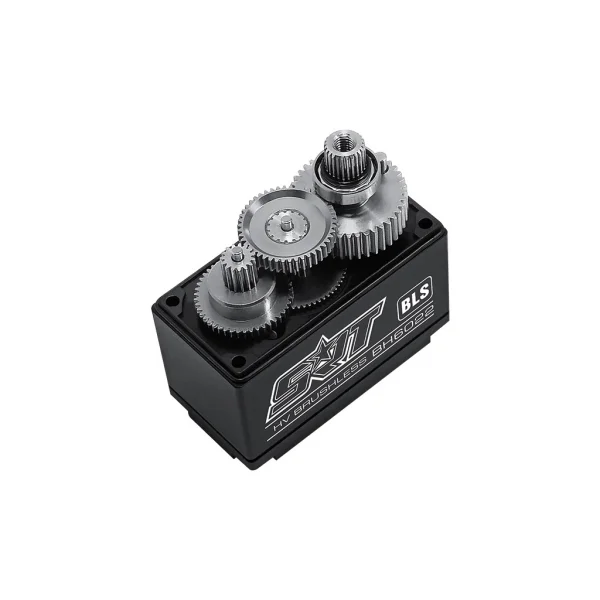

The SRT 6022 HV Brushless Servo (part number SCH-SRTBH6022) is a high-performance digital servo designed for speed, precision and durability. With a brushless motor, metal gear train using titanium and aluminium, and an aluminium case for efficient heat dissipation, it delivers fast response and strong torque across a wide 6.0–8.4V operating range.

Key Features

• Incredible efficiency and low power consumption
• Aluminium case for effective heat dissipation
• NMB dual main bearings
• 25T output shaft
• 1-year limited warranty

Performance Specifications

• Type: Digital, brushless motor; metal gears (titanium & aluminium)
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Operating voltage: DC 6.0–8.4V
• Operating speed (no load): 0.088s/60° @ 6.0V; 0.068s/60° @ 7.4V; 0.060s/60° @ 8.4V
• Stall torque: 17.0 kg.cm @ 6.0V; 19.0 kg.cm @ 7.4V; 22.0 kg.cm @ 8.4V
• Potentiometer drive: Direct drive
• Operating temperature range: -10 to +60 °C

Dimensions & Details

• Dimensions: 41.3 x 20.5 x 38.3 mm (1.63 x 0.80 x 1.51 in)
• Weight: 69.0 g (2.43 oz)
• Connector wire length: JR 300 mm

Suggested Compatibility

• 1/10 2WD Electric Buggy
• 1/10 4WD Electric Buggy
• 1/10 Nitro Touring
• 1/8 Nitro GP
• 1/8 Electric GP
