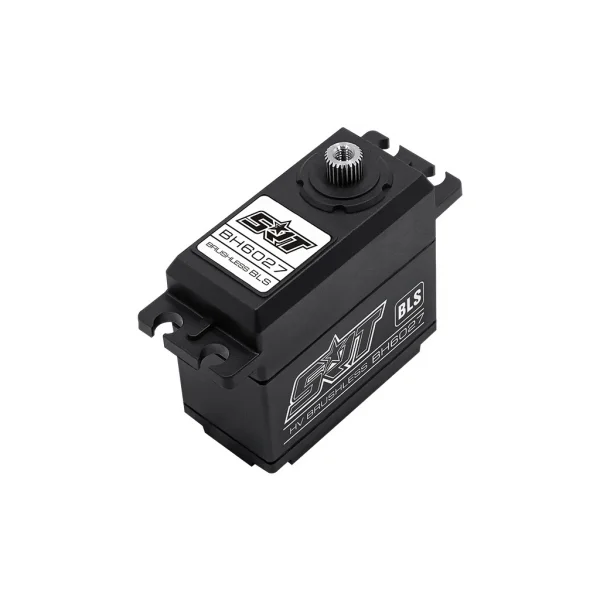

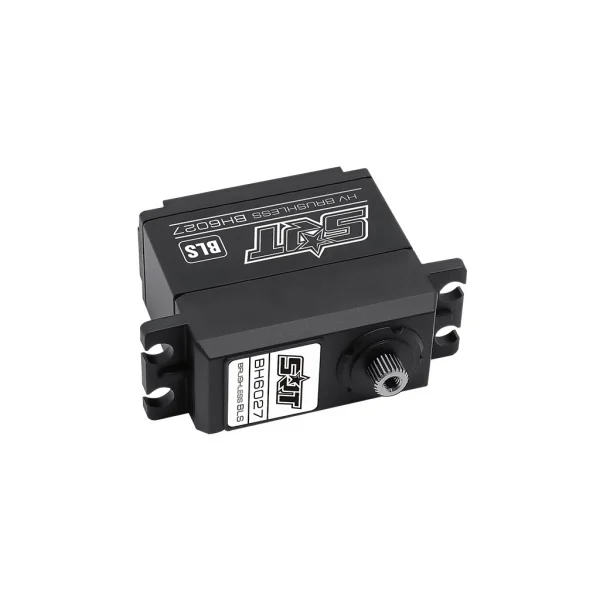

SRT 6027 HV Brushless Servo, 25T, 27kg, 0.075s

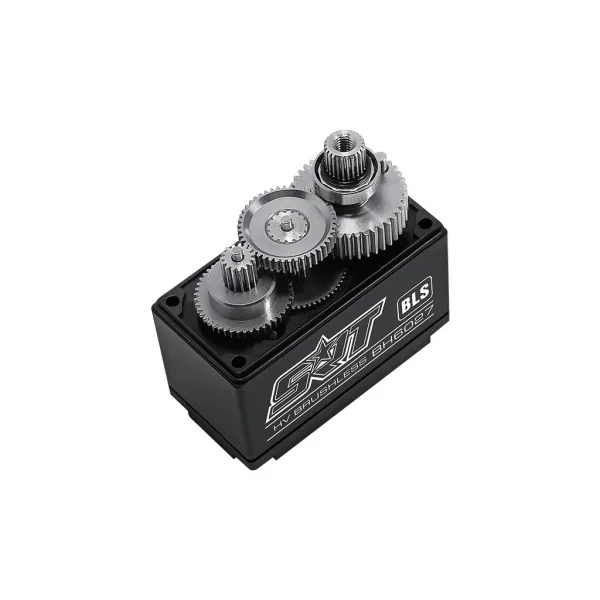

The SRT 6027 HV Brushless Servo (SCH-SRTBH6027) is a high-performance digital servo designed for demanding RC applications. Operating on a wide 6.0–8.4V range, it delivers fast transit speeds down to 0.075s/60° at 8.4V and strong stall torque up to 27.0kg.cm. A rigid aluminium case aids heat dissipation, while NMB dual main bearings and metal gearing with titanium and aluminium materials provide smooth, durable performance. With a standard 25T output shaft and a 300mm JR lead, it offers a robust, high-voltage solution for precision control.

Key Features

• Incredible efficiency and low power consumption
• Aluminium case for effective heat dissipation
• NMB dual main bearings
• 25T output shaft
• 1-Year Limited Warranty

Suggested Compatibility

• 1/8 Nitro Buggy
• 1/8 Electric Buggy

Specifications

• Type: Digital
• Motor Type: Brushless
• Gear Type: Metal; Material: Titanium & Aluminium
• Control System: Pulse width control
• Working Frequency: 1520μs / 330Hz
• Operating Voltage: DC 6.0–8.4V
• Operating Temperature Range: -10 to +60°C
• Speed (6.0V): 0.11s/60° (no load)
• Speed (7.4V): 0.08s/60° (no load)
• Speed (8.4V): 0.075s/60° (no load)
• Stall Torque (6.0V): 20.0kg.cm (277.7 oz/in)
• Stall Torque (7.4V): 25.0kg.cm (347.2 oz/in)
• Stall Torque (8.4V): 27.0kg.cm (375.0 oz/in)
• Potentiometer Drive: Direct drive
• Dimensions: 41.3 x 20.5 x 38.3mm (1.63 x 0.80 x 1.51 in)
• Weight: 69.0g (2.43 oz)
• Bearings: Dual (NMB)
• Output Spline: 25T
• Connector Wire Length: JR 300mm
