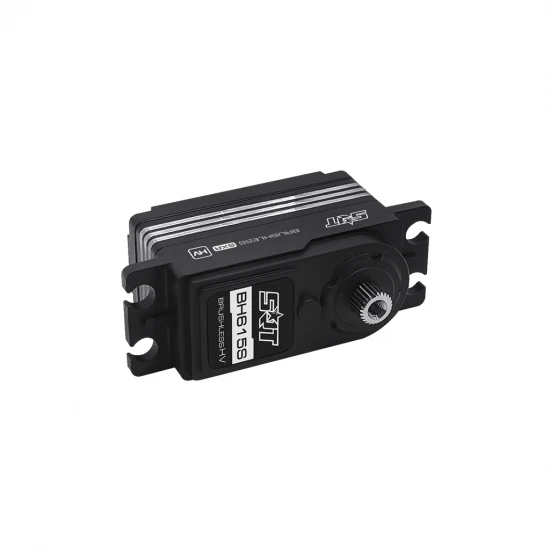

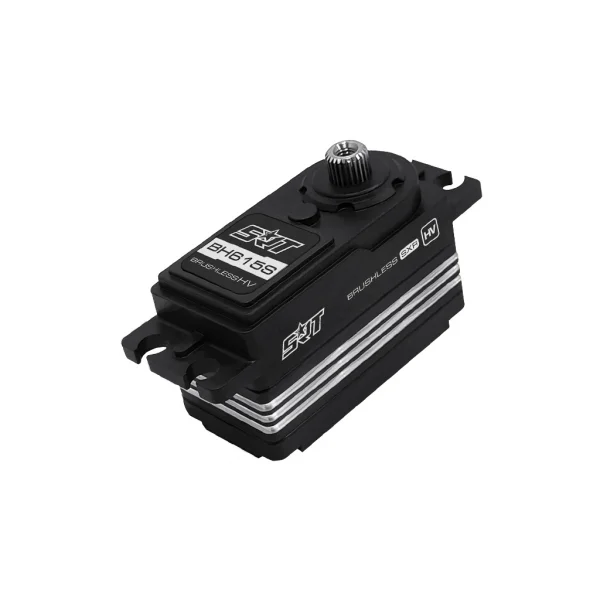

SRT 615S 1:10 Onroad HV Brushless Servo

The SRT 615S 1:10 Onroad HV Brushless Servo (SCH-SRTBH615S) pairs ultra-fast response with robust build quality for demanding on-road applications. A high-voltage brushless motor, aluminium case and NMB dual bearings deliver speed, torque and heat management in a compact 25T form factor.

Key Features

• Ideal for 1/10 on-road applications
• Incredible efficiency and low power consumption
• Aluminium case for good heat dissipation
• NMB dual main bearings
• Supports SR, SSR, SFR, SUR, SXR multiple ultra high-speed modes
• 25T output shaft
• 1-Year Limited Warranty

Specifications

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Material: Titanium & Aluminium
• Control System: Pulse width control
• Signal/Working Frequency: 1520μs / 330Hz
• Operating Voltage: DC 6.0–8.4V
• Operating Temperature Range: -10 to +60°C
• Operating Speed (6.0V): 0.062s/60° (no load)
• Operating Speed (7.4V): 0.052s/60° (no load)
• Operating Speed (8.4V): 0.045s/60° (no load)
• Stall Torque (6.0V): 10.0 kg.cm (138.8 oz/in)
• Stall Torque (7.4V): 13.0 kg.cm (180.5 oz/in)
• Stall Torque (8.4V): 15.0 kg.cm (208.3 oz/in)
• Potentiometer Drive: Direct drive
• Dimensions: 41.0 × 20.0 × 26.4 mm (1.61 × 0.79 × 1.04 in)
• Weight: 49.0 g (1.73 oz)
• Connector Wire Length: JR 180 mm

Suggested Compatibility

• 1/10 electric touring
• 1/10 2WD electric buggy
• Formula One
