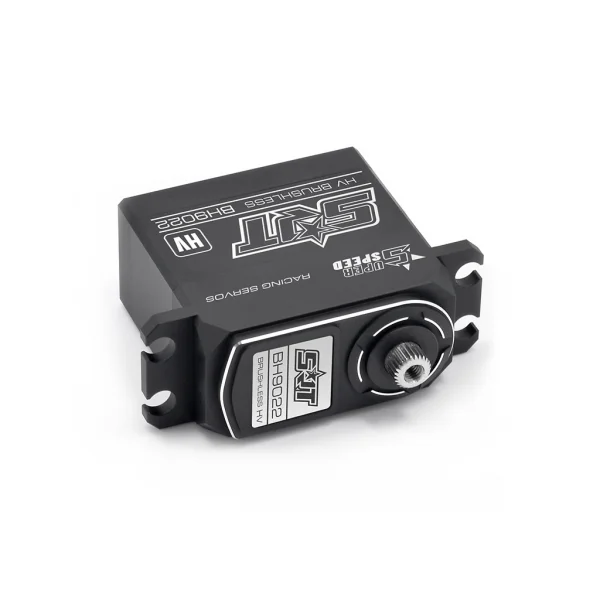

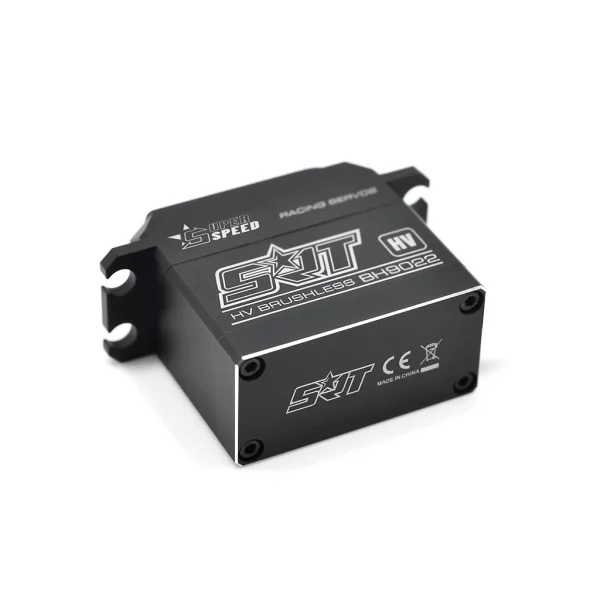

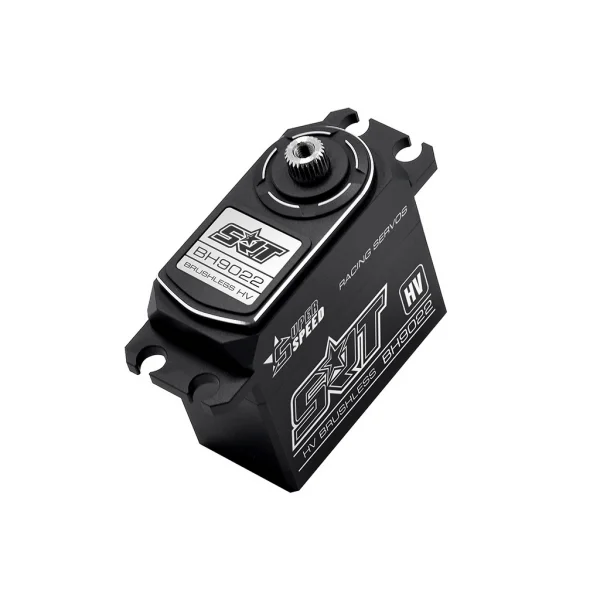

SRT 9022 HV Brushless Servo (25T, 22kg, 0.06s) SCH-SRTBH9022

The SRT 9022 HV Brushless Servo (SCH-SRTBH9022) is a high-voltage, digital standard-size servo combining rapid transit speeds with strong torque and efficient brushless performance. A CNC-machined aluminium case, NMB dual main bearings and titanium/steel gears deliver durability and precise control with HD 4096 resolution and a tight 2 μs dead band.

Key Features

• Superior Holding Speed
• Incredible efficiency and low power consumption
• Standard dimensions for versatile installs
• CNC machined aluminium case for exceptional cooling
• NMB dual main bearings
• 25T output shaft
• HD 4096 Resolution
• 2 μs Dead Band
• 1-Year Limited Warranty

Performance Specifications

• Operating voltage: DC 6.0–8.4 V
• Speed (no load): 0.085 s/60° @ 6.0 V; 0.065 s/60° @ 7.4 V; 0.060 s/60° @ 8.4 V
• Stall torque: 18.0 kg·cm @ 6.0 V; 20.0 kg·cm @ 7.4 V; 22.0 kg·cm @ 8.4 V
• Type: Digital; Motor: Brushless
• Gears: Metal (titanium & steel)
• Bearings: Dual
• Control system: Pulse width control
• Working frequency: 1520 μs / 330 Hz
• Operating temperature: -10 to +60 °C
• Potentiometer drive: Direct drive

Suggested Compatibility

• 1/10 2WD Electric Buggy
• 1/10 4WD Electric Buggy
• 1/8 Nitro GP
• 1/8 Electric GP

Dimensions & Details

• Dimensions: 40 × 20 × 38.0 mm (1.57 × 0.79 × 1.49 in)
• Weight: 79.0 g (2.79 oz)
• Output spline: 25T
• Connector/lead: JR, 300 mm
