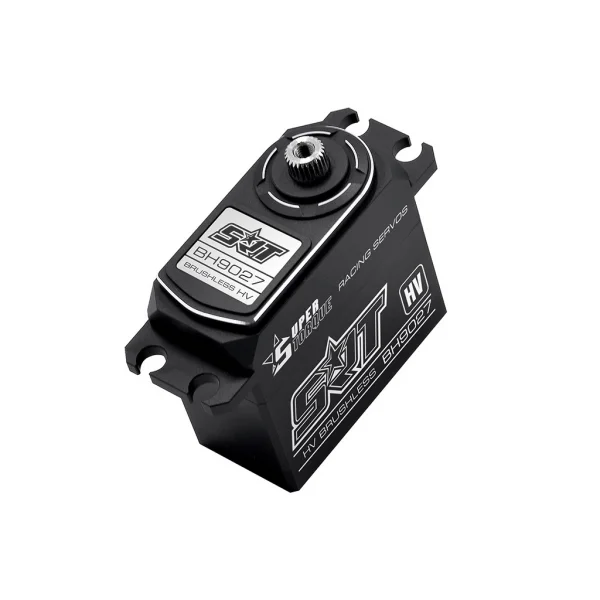

SRT 927S HV Brushless Servo – SCH-SRTBH927S

The SRT 927S HV Brushless Servo (part number SCH-SRTBH927S) is a high-performance digital servo engineered for precision, durability and efficiency. With a brushless motor, metal gear train using titanium and steel, and a CNC machined aluminium case, it delivers fast transit times, strong holding power and consistent thermal performance in demanding RC applications.

Key Features

• Superior holding torque with incredible efficiency and low power consumption
• Standard-size case (40 x 20 x 38 mm)

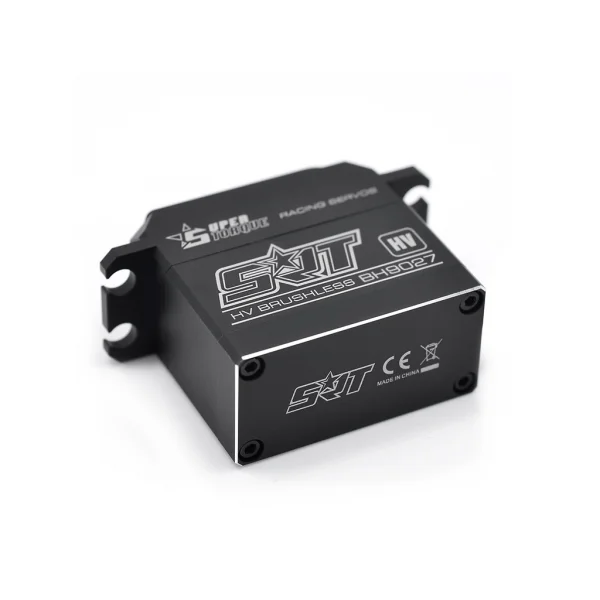

• CNC machined aluminium case for exceptional cooling
• NMB dual main bearings
• SSR mode compatible
• 25T output shaft
• HD 4096 resolution
• 2 μsec dead band
• 1-year limited warranty

Performance

• Operating voltage: DC 6.0–8.4 V
• Operating speed (6.0 V): 0.10 s/60° (no load)
• Operating speed (7.4 V): 0.075 s/60° (no load)
• Operating speed (8.4 V): 0.07 s/60° (no load)
• Stall torque (6.0 V): 21.0 kg.cm (291.6 oz/in)
• Stall torque (7.4 V): 23.0 kg.cm (319.4 oz/in)
• Stall torque (8.4 V): 27.0 kg.cm (374.9 oz/in)
• Working frequency: 1520 μs / 330 Hz
• Control system: Pulse width control
• Potentiometer drive: Direct drive

Construction

• Type: Digital
• Motor type: Brushless

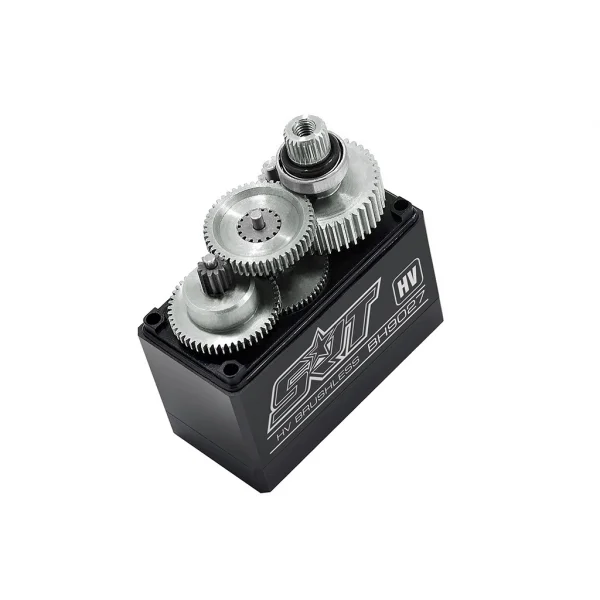

• Gear type: Metal (titanium & steel)
• Bearings: Dual (NMB)
• Dimensions: 40 x 20 x 38.0 mm
• Weight: 80.0 g
• Connector wire length: JR 300 mm

Operating Conditions

• Operating temperature range: -10 to +60 °C

Suggested Compatibility

• 1/8 Nitro Buggy
• 1/8 Electric Buggy
