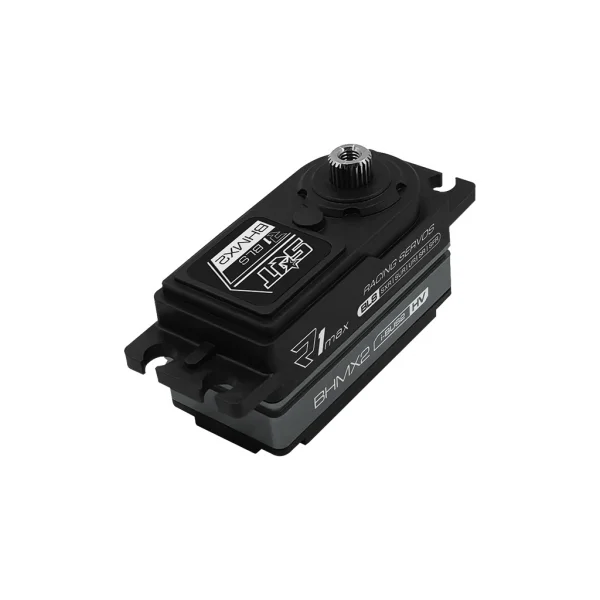

SRT BHMX2 1:10 Brushless Servo

The SRT BHMX2 1:10 Brushless Servo delivers fast transit times and strong holding power in a compact, high-voltage package. Built with titanium and 7075 materials and precise pulse width control, it offers smooth, consistent response for on-road and off-road applications. Suggested compatibility includes 1/10 electric touring, 1/10 E-buggy, 1/10 nitro touring and 1/8 nitro GP. Part number: SCH-SRTBHMX2.

Features

• Brushless motor for speed, efficiency and durability
• Metal gears with titanium + 7075 materials
• High-voltage operation from 6.0–8.4V
• Rapid response: down to 0.065 sec/60° (8.4V)
• Strong torque: up to 23.0 kg.cm (8.4V)
• Direct-drive potentiometer for precise centring

Key Specifications

• Control system: Pulse width control
• Working frequency: 1520μs / 330Hz
• Operating voltage: DC 6.0–8.4V
• Operating temperature range: -10 to +60 degrees
• Speed (6.0V): 0.080 sec/60° (no load)
• Speed (7.4V): 0.073 sec/60° (no load)
• Speed (8.4V): 0.065 sec/60° (no load)
• Stall torque (6.0V): 15.0 kg.cm (208.3 oz/in)
• Stall torque (7.4V): 18.0 kg.cm (250.0 oz/in)
• Stall torque (8.4V): 23.0 kg.cm (319.4 oz/in)
• Dimensions: 41.0 x 20.0 x 23.3 mm
• Weight: 42.0 g
• Connector: JR, wire length 180 mm
