SRT BHX2S HV Brushless RC Servo - 180mm Lead

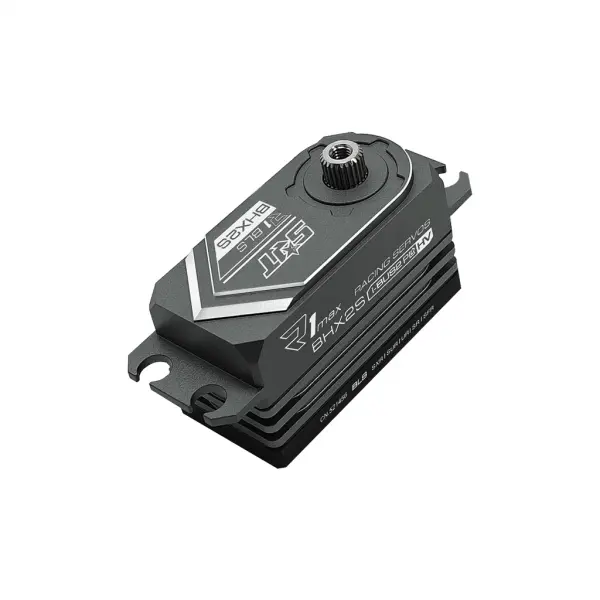

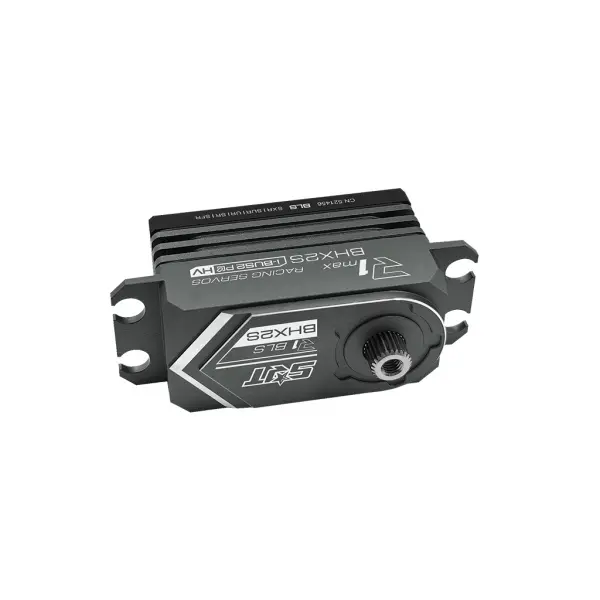

The SRT BHX2S HV Brushless Servo - 180mm Lead, part number SCH-SRTBHX2S-180MM, is a digital high-voltage steering servo for radio-controlled models. It uses a four-pole brushless motor with pulse-width control, providing a sensitive response and support for SXR, SUR, UR, SR and SFR ultra-high-speed modes. The servo has a low-profile design, dual NMB main bearings and metal gears made from TC4 pure titanium and steel.

Designed specifically for nitro car steering, this SRT servo is suggested for 1/10 electric touring cars, 1/10 2WD electric buggies, 1/10 nitro touring cars and 1/8 nitro touring cars. Its JR connector is fitted with a 180mm lead. The operating voltage range is 6.0 to 8.4V, with the fastest stated no-load speed available at 8.4V. Stall torque also increases with voltage, reaching 23.0 kg/cm at 8.4V.

Features

The direct-drive potentiometer and dual-bearing arrangement support the servo's response characteristics, while the compact housing measures 41.0 x 20.0 x 24.8mm and weighs 52.0g. Operating temperature is specified from -10 to +60 degrees Celsius. A one-year limited warranty is included by the manufacturer.

Specifications

• Servo type: Digital
• Motor: Four-pole brushless
• Gear material: TC4 pure titanium and steel
• Operating voltage: DC 6.0-8.4V
• Operating speed at 7.4V: 0.073 seconds/60 degrees at no load
• Stall torque at 7.4V: 18.0 kg/cm

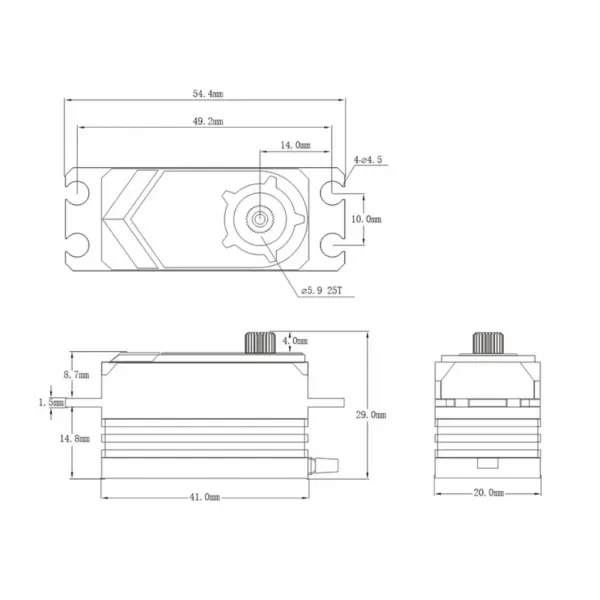

• Dimensions: 41.0 x 20.0 x 24.8mm
• Weight: 52.0g
