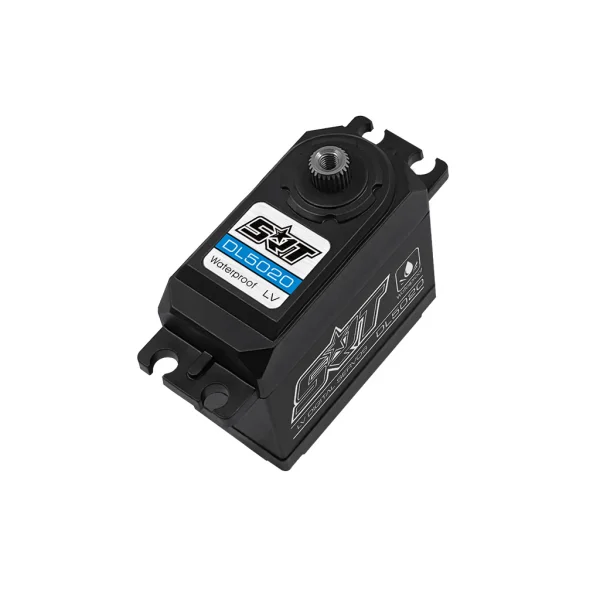

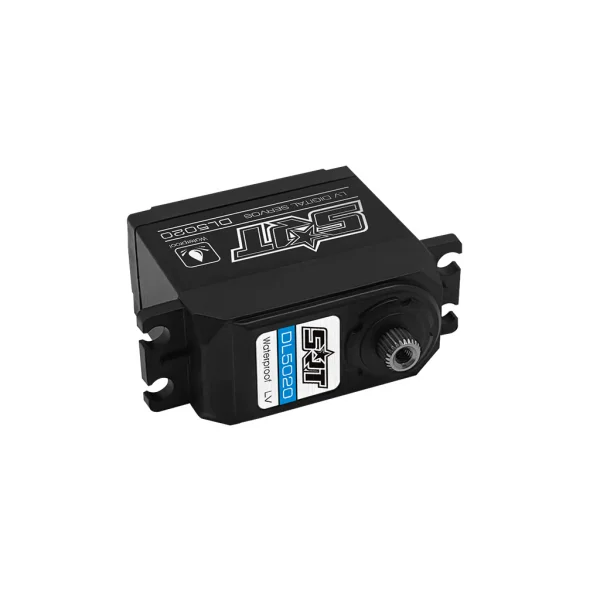

SRT DL5020 LV Digital Waterproof Servo

The SRT DL5020 LV Digital Waterproof Servo (SCH-SRTDL5020) delivers precise control and dependable torque for RC models operating on 4.8–6.0V. Built with an intermediate aluminium case, titanium and aluminium metal gears, and NMB dual main bearings, it is engineered to perform in demanding conditions. Suggested compatibility: 1/10 on-road and off-road models, including 1/10 crawlers.

Key Features

• Digital control with pulse width control
• Superior waterproof design
• Intermediate aluminium case
• NMB dual main bearings
• Titanium and aluminium metal gears
• 25T output shaft
• 1-year limited warranty

Performance

• Operating speed: 0.18 sec/60° (4.8V); 0.16 sec/60° (6.0V)
• Stall torque: 16.5 kg.cm (4.8V); 20.0 kg.cm (6.0V)
• Working frequency: 1520 μs / 330 Hz

Specifications

• Type: Digital
• Motor: DC
• Bearing: Dual (NMB)
• Gear type/material: Metal, titanium & aluminium
• Control system: Pulse width control
• Operating voltage: DC 4.8–6.0V
• Operating temperature: -10 to +60°C
• Potentiometer drive: Direct drive
• Dimensions: 40.7 x 20.5 x 39.5 mm
• Weight: 62.0 g
• Connector: JR, 300 mm lead
