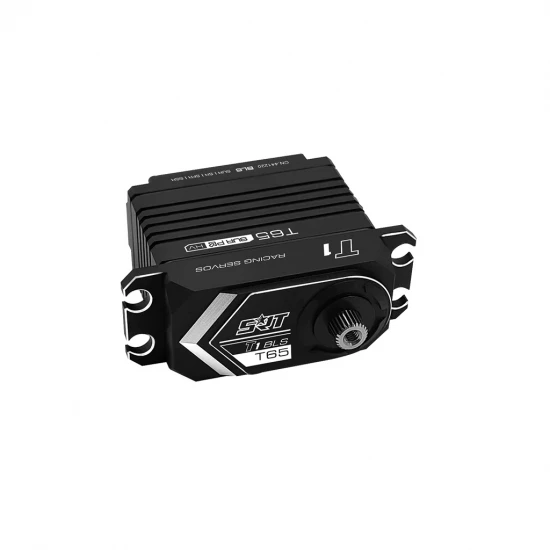

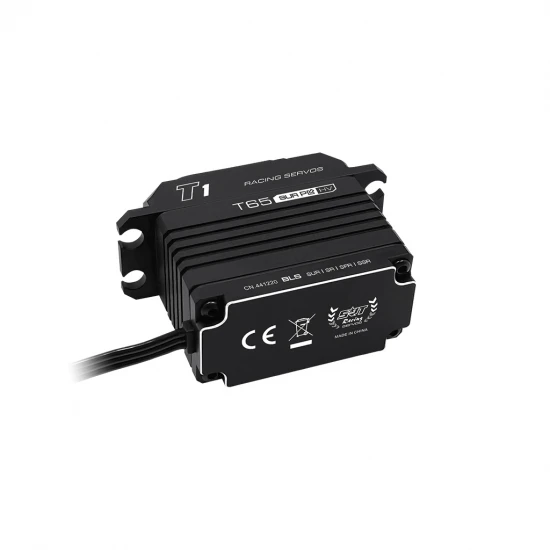

SRT T65 HV Brushless Servo

The SRT T65 HV Brushless Servo (part number SCH-SRTT65) delivers exceptional holding torque, fast response and high efficiency for demanding RC applications. Built around a brushless motor with dual bearings and steel gears inside a CNC‑machined aluminium case, it provides strong performance with low power consumption and excellent heat dissipation.

Operating from 6.0–8.4V, the T65 offers up to 55.0 kg.cm of stall torque and speeds as quick as 0.065 s/60° at 8.4V. A tight 2 μsec dead band enhances precision, while a standard-size footprint and 25T output spline make installation straightforward. The servo is programmable and supports SXR, SUR, SR and SFR ultra high speed modes for refined control feel.

Key Features

• Superior holding torque with efficient, low power draw
• CNC machined aluminium case for exceptional cooling
• Programmable high-torque brushless digital servo
• Supports SXR, SUR, SR and SFR ultra high speed modes
• Standard-size dimensions
• 25T output shaft
• 2 μsec dead band
• 1-year limited warranty

Specifications

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• Control System: Pulse width control
• Working Frequency: 1520 μs / 330 Hz
• Operating Voltage: DC 6.0–8.4V
• Operating Temperature Range: -10 to +60 °C
• Operating Speed (6.0V): 0.092 s/60° (no load)
• Operating Speed (7.4V): 0.074 s/60° (no load)
• Operating Speed (8.4V): 0.065 s/60° (no load)
• Stall Torque (6.0V): 39.0 kg.cm (541.6 oz-in)
• Stall Torque (7.4V): 45.0 kg.cm (625.0 oz-in)
• Stall Torque (8.4V): 55.0 kg.cm (763.8 oz-in)
• Potentiometer Drive: Direct drive
• Dimensions: 40.7 × 20.5 × 39.0 mm (1.60 × 0.81 × 1.54 in)
• Weight: 83.0 g (2.93 oz)
• Connector Wire Length: JR, 300 mm

Suggested Compatibility

• 1/10 crawlers
