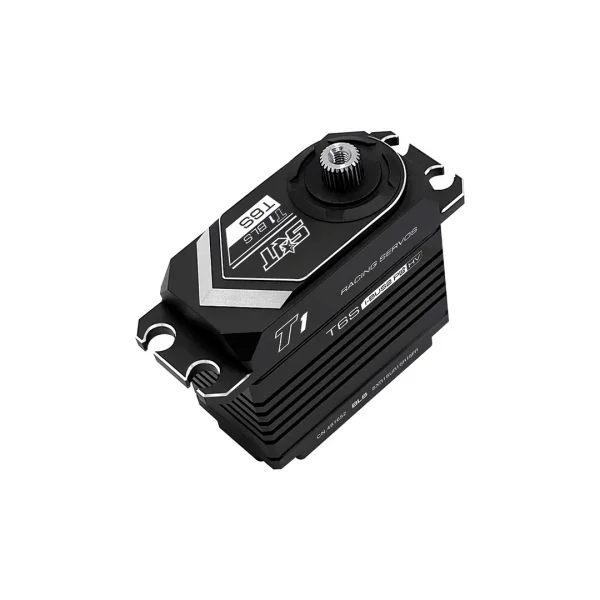

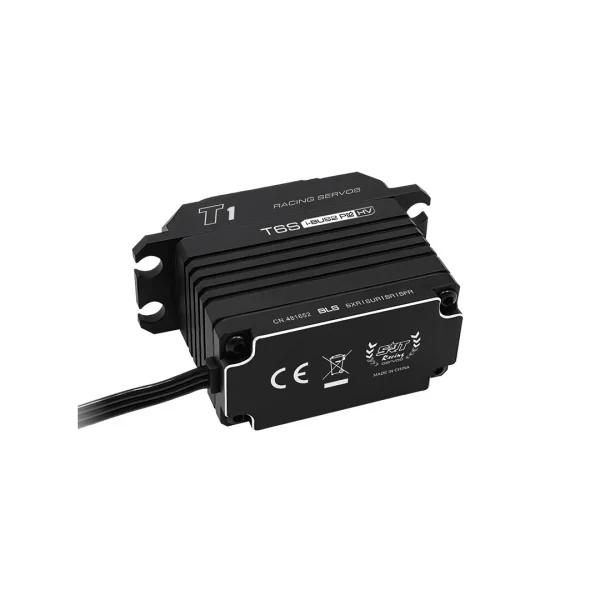

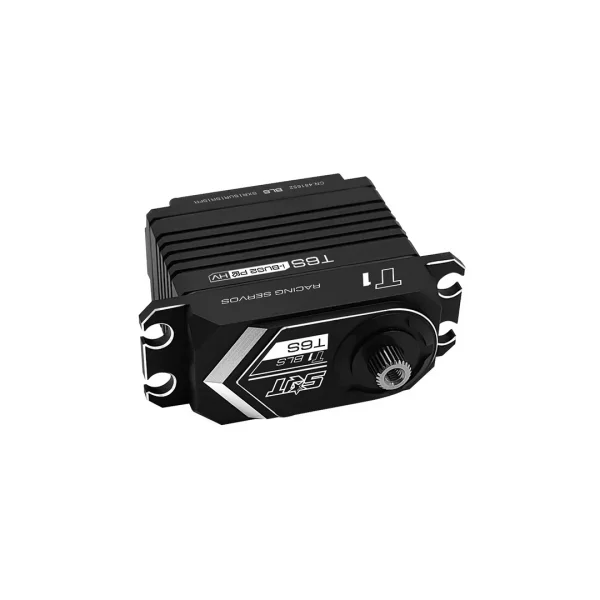

SRT T6S HV Brushless Servo - 58kg, 0.085s

The SRT T6S HV Brushless Servo (SCH-SRTT6S) is a programmable, high-torque digital servo engineered for precise, rapid control. A robust steel gear train, dual bearings and an efficient brushless motor deliver strong holding power and quick transit times across a wide 6.0–8.4V operating range. Its CNC‑machined aluminium case improves heat dissipation and rigidity, while the 25T output spline and standard dimensions support straightforward installation.

Key Features

• Superior holding torque with high-efficiency, low power consumption
• Standard dimensions for use in vehicles that can benefit from a high-quality servo
• CNC machined aluminium case for exceptional cooling
• Programmable, high-torque brushless digital servo
• Supports SXR, SUR, SR and SFR ultra high-speed modes
• 25T output shaft
• 2 μsec dead band
• 1-year limited warranty

Product Specifications

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type/Material: Metal, steel
• Control System: Pulse width control
• Signal/Working Frequency: 1520 μs / 330 Hz
• Operating Voltage: DC 6.0–8.4 V
• Operating Temperature Range: -10 to +60 °C
• Operating Speed (6.0 V): 0.092 s/60° (no load)
• Operating Speed (7.4 V): 0.090 s/60° (no load)
• Operating Speed (8.4 V): 0.085 s/60° (no load)
• Stall Torque (6.0 V): 39.0 kg·cm (541.6 oz·in)
• Stall Torque (7.4 V): 48.0 kg·cm (666.6 oz·in)
• Stall Torque (8.4 V): 58.0 kg·cm (805.5 oz·in)
• Potentiometer Drive: Direct drive
• Dimensions: 40.7 × 20.5 × 39.0 mm (1.60 × 0.81 × 1.54 in)
• Weight: 83.0 g (2.93 oz)
• Connector/Wire Length: JR, 300 mm
