Schumacher Steel Chassis Conversion E5 Eclipse 6 SCH-U9620
Brand: Schumacher
Part No: SCH-U9620
Usually ships within 2 days
Fits These Models (1)
Show all 1 models
Customers Also Buy
Popular with customers who buy products like the Steel Chassis Conversion - E5, Eclipse 6
Description
The Schumacher Steel Chassis Conversion - E5, Eclipse 6 (SCH-U9620) is a steel chassis upgrade set for refining handling in LMP12 racing. It uses a 1.1mm spring steel chassis to lower the centre of gravity, while the reduced chassis width and thinner construction lower chassis-mounted components by 0.9mm. The result is a chassis layout designed to provide smooth, predictable handling and easier driving in high-grip conditions.
Compared with the standard 2mm alloy chassis, this conversion is 7g heavier but offers increased mid-corner rotation and a wider setup window. The narrower chassis helps alter the handling balance, while the spring steel construction gives the car a smoother feel through corners. The U9620 upgrade set is suggested for Schumacher E5 and Eclipse 6 cars, and is also suggested as compatible with the Schumacher Eclipse 5.
Features
The set combines the steel chassis with carbon fibre topdecks, side links and dedicated mounting hardware. The mounting screws use a Torx T7 drive, so fitting requires a suitable T7 driver. The Takashima T7 driver and handle, part TKSM-185, are available separately.
What's Included
- Steel chassis
- Carbon fibre topdecks
- Side links
- Specially designed mounting hardware
Specifications
- Chassis thickness: 1.1mm spring steel
- Chassis width: 11.5mm narrower than the standard chassis
- Chassis-mounted components: positioned 0.9mm lower
- Chassis weight: 91.2g
Secured by Stripe
Specifications
Developed to deliver smooth, predictable handling and improved drivability, particularly in the high-grip conditions commonly found in LMP12 racing.
The specially developed 1.1mm spring steel chassis combines an ultra-low centre of gravity with a chassis width reduced by 11.5mm. Its reduced thickness lowers all chassis-mounted components by 0.9mm, helping to improve overall balance and handling.
Weighing 91.2g, 7g heavier than the standard 2mm alloy chassis, the steel chassis has been engineered to provide fast yet easy-to-drive characteristics, with increased mid-corner rotation, a smoother feel and a wider setup window.
Key Benefits
- Lower centre of gravity – all chassis-mounted components sit 0.9mm lower.
- 11.5mm narrower chassis for refined handling.
- Increased mid-corner rotation and a wider setup window.
- Specially developed spring steel for smooth, predictable performance.
- Ideal for the high-grip conditions typically encountered in LMP12 racing.

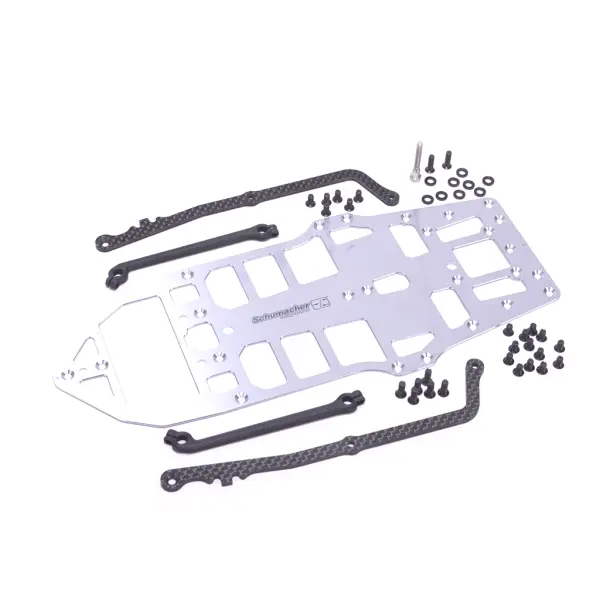

The U9620 set includes the steel chassis, carbon fibre topdecks, side links and specially designed mounting hardware.
The mounting screws require a Torx T7 driver. The Takashima T7 driver and handle (TKSM-185) are available separately.
The upgrade set is also compatible with the Schumacher Eclipse 5.
Spare Parts
TKSM-185 - Takashima D-13 T7 Torx Tool & Tool Tip
U9621 - Steel Chassis - E5, Eclipse 6
U9622 - Lower Screw Set 120deg (Steel Chassis) - E5, Eclipse 6
U9623 - Side Link (Steel Chassis) (pr) - E5, Eclipse 6
U9624 - C/F Topdecks (Steel Chassis) (pr) - E5,Eclipse 6
Key Info:
- Brand: Schumacher
- Part No: SCH-U9620
- Barcode: 5051294221393
