Stinger Engines 10cc Side Exhaust Petrol Engine RCGF10SE
Brand: Stinger Engines
Part No: RCGF10SE
Expected Mon 16 Nov
Request Stock NotificationCustomers Also Buy
Popular with customers who buy products like the Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine
Description

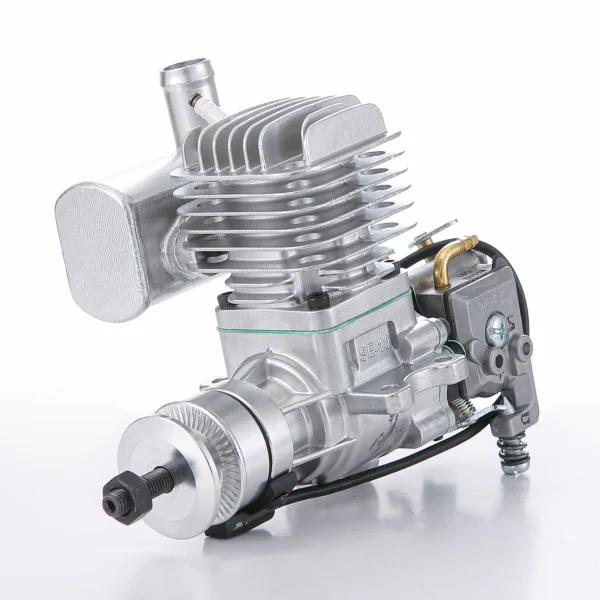

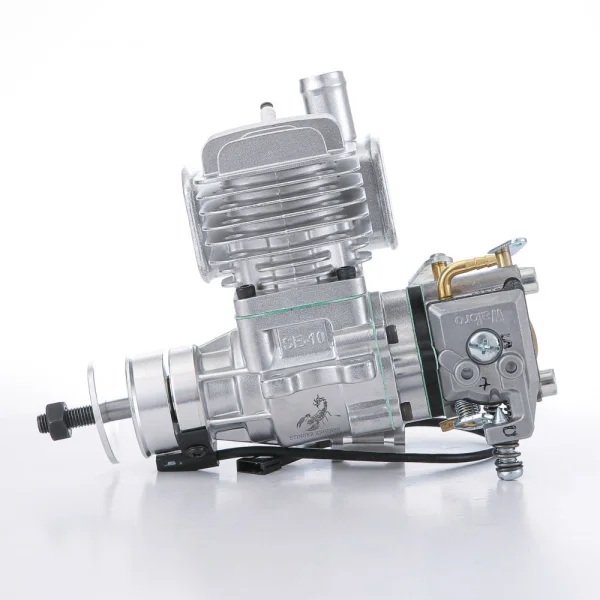

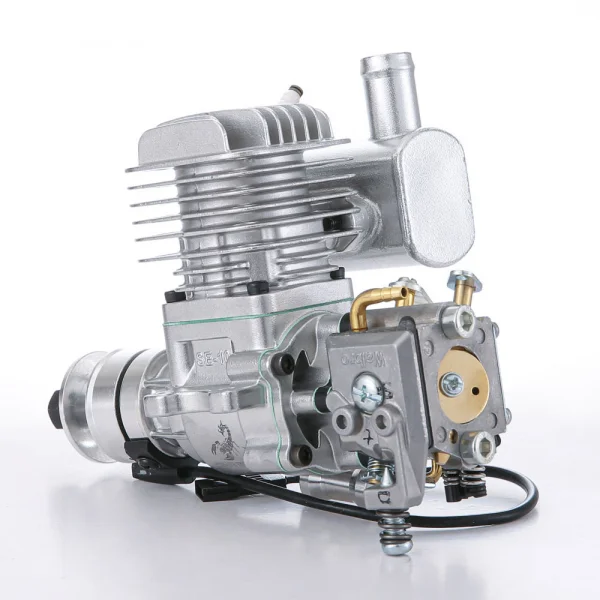

The Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine (RCGF10SE) is a 10cc single-cylinder side-exhaust two-stroke petrol engine for radio-controlled aircraft. Its compact design uses a tailored aluminium alloy case, a crank system and bearings specified for this engine format, with the petrol power system providing an alternative to traditional glow engines.
The engine runs on petrol with a 30:1 petrol-to-oil mix and has a listed displacement of 10cc. Its 27.6 mm bore and 17 mm stroke are paired with a stated static thrust of 8.38 lb. The 623 g engine weight includes the muffler and electronic CDI unit. A 1/4-32 spark plug is specified.
The RCGF10SE is supplied with the main items needed for installation, including the electronic ignition equipment, muffler, engine bearer set and throttle arm extension. An instruction manual is also included. Suggested completion items are an ignition battery and a suitable propeller.
Specifications
- Displacement: 10cc
- Bore: 27.6 mm; stroke: 17 mm
- Weight: 623 g including muffler and CDI
- Fuel: Petrol; petrol-to-oil mix: 30:1
- Static thrust: 8.38 lb
- Spark plug: 1/4-32
What's Included
- Stinger 10cc single-cylinder engine
- Electronic CDI unit
- Spark plug
- Muffler
- Gasket and bolt set
- Throttle arm extension
- Engine bearer set
- Instruction manual
Required to Complete
- 13x6, 13x8, 13x7 or 14x6 propeller
- 6–14V ignition battery
Secured by Stripe
Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class RCGF s compact Stinger 10cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 10 |
| Bore (mm): | 27.6 |
| Stroke (mm): | 17 |
| Weight (g): | 623 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 30:1 |
| Static thrust at (lb): | 8.38 |
| Spark plug: | 1/4-32 |
Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Key Features:
- One of the strongest and most powerful engines in its class RCGF s compact Stinger 10cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 10 Bore (mm): 27.6 Stroke (mm): 17 Weight (g): 623 Fuel: Petrol Petrol / Oil mix: 30:1 Static thrust at (lb): 8.38 Spark plug: 1/4-32
What's in the Box:
- 1x Stinger 10cc Single.
- 1x Electronic CDI unit.
- 1x Spark plug.
- 1x Muffler.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Engine bearer set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 13x6, 13x8, 13x7 or 14x6" propeller.
- 1x Ignition battery (6 – 14V).
Stinger Engines 10cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
- Weight: 623 (inc. muffler and CDI)g / 21.98oz
- Shipping Weight: 1.14kg / 2.52lbs
- Application: Aircraft
- Displacement: 10mm3
- Cylinder Bore: 27.5mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors / designated model flying site
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF10SE
- Barcode: 5051121256062
- Format: Petrol
