Stinger Engines 125cc Twin 2-Stroke Petrol Engine RCGF125T
Brand: Stinger Engines
Part No: RCGF125T
Usually ships next day
Customers Also Buy
Popular with customers who buy products like the Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine
Description

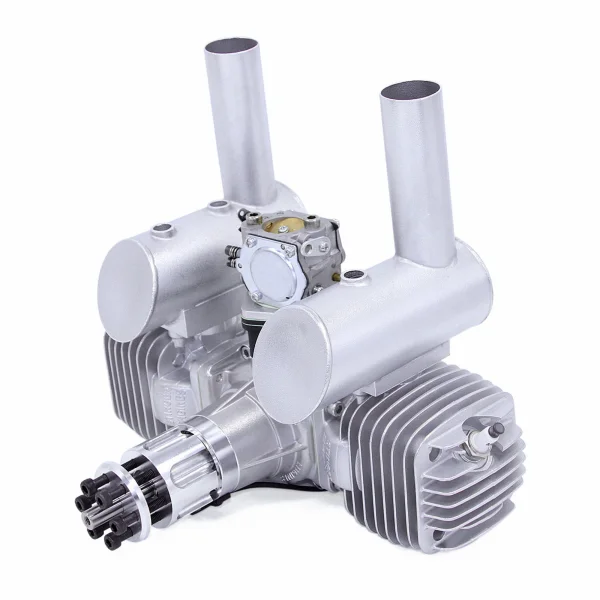

The Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine (RCGF125T) is a petrol-powered twin-cylinder engine for radio-controlled aircraft. It has a 125cc displacement, a 47mm bore and a stated maximum output of 12hp. The engine uses a tailored aluminium alloy case, a tougher crank system and high-quality bearings, with a Walbro carburettor for fuel delivery.
The Stinger twin operates across a 1,500 to 8,900rpm range and uses an auto-advance electronic ignition system. Its recommended fuel mixture is 30:1 petrol to oil, while the ignition system requires a suitable 6 to 8.4V NiMH, 6.6V LiFe or 7.4V LiPo battery. Suggested propeller options include 27x8, 27x10, 27x11, 28x8 and 28x10 inch sizes. Twin mufflers, muffler extension pipes and two CM6 spark plugs are supplied for the twin-cylinder layout.
Specifications
- Displacement: 125cc
- Cylinder bore: 47mm
- Maximum output: 12hp
- Weight: 2,665g
- Recommended petrol-to-oil mix: 30:1
- Idle speed: 1,600rpm
The engine is supplied with its electronic CDI unit, allowing the ignition components to be installed alongside the engine and spark plugs. The included gasket and bolt set, throttle arm extension and instruction manual provide the main installation items listed for the Stinger 125cc twin. This petrol engine is suggested for experienced users operating radio-controlled aircraft outdoors or at a designated model flying site.
What's Included
- Stinger 125cc twin engine
- Electronic CDI unit
- Two CM6 spark plugs
- Two mufflers
- Two muffler extension pipes
- Gasket and bolt set
- Throttle arm extension and instruction manual
Required to Complete
- One suitable 27x8, 27x10, 27x11, 28x8 or 28x10 inch propeller
- One compatible ignition battery
Secured by Stripe
Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class, RCGF s compact 125cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 125 |
| Bore (mm): | 47 |
| Maximum output (hp): | 12 |
| Weight (g): | 2665 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 30:1 |
| Idle Speed (rpm): | 1600 |
| Spark plug: | CM6 |
Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:
Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine Key Features:
- One of the strongest and most powerful engines in its class, RCGF s compact 125cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 125 Bore (mm): 47 Maximum output (hp): 12 Weight (g): 2665 Fuel: Petrol Petrol / Oil mix: 30:1 Idle Speed (rpm): 1600 Spark plug: CM6 - Walbro carburettor.
- Outstandingly powerful 125cc (7.63cu. in.) displacement.
- 1500 to 8900rpm range.
- 27x10 to 28x10" propeller range.
- Uses 30:1 (recommended) pre-mixed fuel.
- Auto advance electronic ignition system.
- Easy starting.
- Twin mufflers.
- Includes CDI unit, mufflers and spark plugs.
- 2665g
What's in the Box:
- 1x Stinger 125cc twin.
- 1x Electronic CDI unit.
- 2x Spark plugs.
- 2x Mufflers.
- 2x Muffler extension pipes.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 27x8, 27x10, 27x11, 28x8 or 28x10" propeller.
- 1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).
Stinger Engines 125cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:
- Weight: 2665g / 94.01oz
- Shipping Weight: 3.78kg / 8.33lbs
- Application: Aircraft
- Displacement: 125mm3
- Cylinder Bore: 47mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors / designated model flying site
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF125T
- Barcode: 5051121256079
- Format:
• Multi Cylinder
• Petrol
