Stinger Engines 15cc 2-Stroke Petrol Engine RCGF15SE
Brand: Stinger Engines
Part No: RCGF15SE
Expected Mon 16 Nov
Request Stock NotificationCustomers Also Buy
Popular with customers who buy products like the Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine
Description

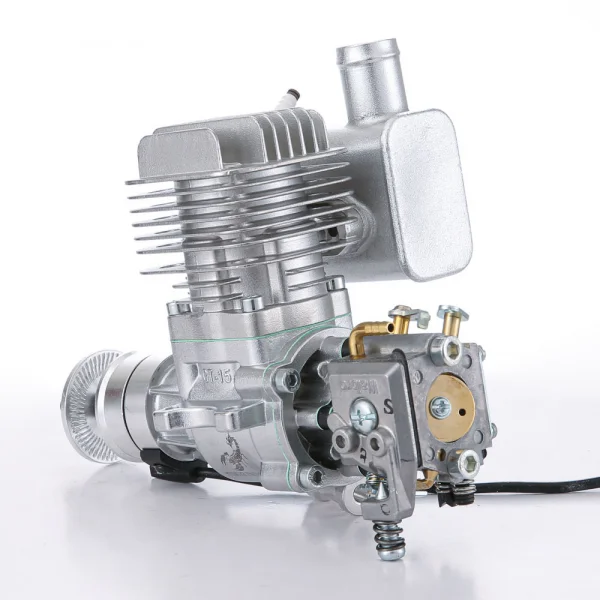

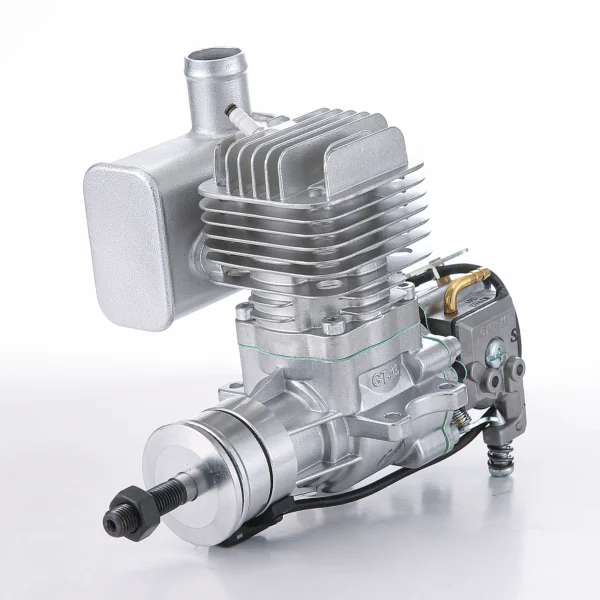

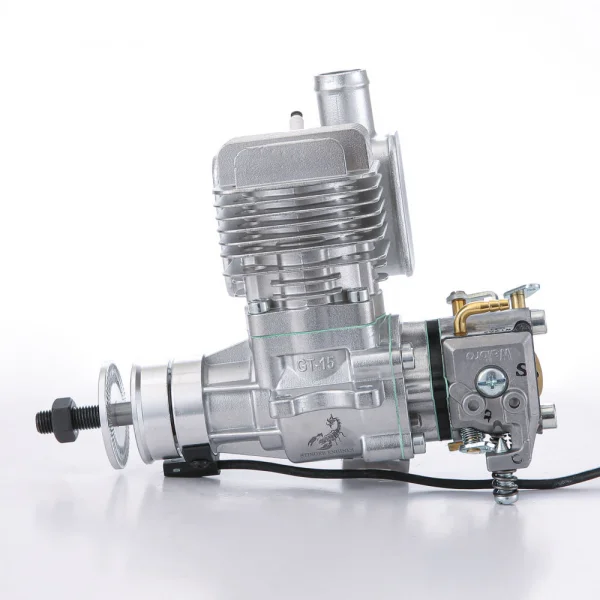

Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine, part number RCGF15SE, is a petrol engine for radio-controlled aircraft. This compact single-cylinder engine uses a two-stroke design with side exhaust and 15cc displacement. It is intended as an alternative to traditional glow-powered engines, using a petrol and oil mixture at a 30:1 ratio.
The engine has been re-engineered with revised internal parts, a strengthened crank system, bearings and an aluminium alloy case. Its suggested application is aircraft, making it suitable for experienced radio-control users working at an outdoor or designated model flying site. The supplied electronic CDI unit provides the ignition system, while the included muffler, throttle arm extension and engine bearer set support installation into a suitable model.
With a stated static thrust of 10.2lb, the engine is designed around the propeller sizes listed for completion. The engine weight, including the muffler and CDI, is 770g. An ignition battery supplying between 6 and 14V is required, together with a suitable propeller.
Specifications
- Displacement: 15cc
- Cylinder bore: 32mm
- Stroke: 19.6mm
- Weight including muffler and CDI: 770g
- Petrol and oil mix: 30:1
- Static thrust: 10.2lb
What's Included
- Stinger 15cc single-cylinder engine
- Electronic CDI unit
- Spark plug
- Muffler
- Gasket and bolt set
- Throttle arm extension
- Engine bearer set
- Instruction manual
Required to Complete
- 13x6, 13x8, 14x6, 15x6 or 15x8 inch propeller
- 6–14V ignition battery
Secured by Stripe
Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class RCGF s compact Stinger 15cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 15 |
| Bore (mm): | 32 |
| Stroke (mm): | 19.6 |
| Weight (g): | 770 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 30:1 |
| Static thrust (lb): | 10.2 |
| Spark plug: | M8 1/4-32 |
Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Key Features:
- One of the strongest and most powerful engines in its class RCGF s compact Stinger 15cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 15 Bore (mm): 32 Stroke (mm): 19.6 Weight (g): 770 Fuel: Petrol Petrol / Oil mix: 30:1 Static thrust (lb): 10.2 Spark plug: M8 1/4-32
What's in the Box:
- 1x Stinger 15cc Single.
- 1x Electronic CDI unit.
- 1x Spark plug.
- 1x Muffler.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Engine bearer set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 13x6, 13x8, 14x6, 15x6 or 15x8" propeller.
- 1x Ignition battery (6 – 14V).
Stinger Engines 15cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
- Weight: 770 (inc. muffler and CDI)g / 27.16oz
- Shipping Weight: 1.27kg / 2.80lbs
- Application: Aircraft
- Displacement: 15mm3
- Cylinder Bore: 32mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors / designated model flying site
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF15SE
- Barcode: 5051121256093
- Format: Petrol
