Stinger Engines 20cc 2-Stroke Petrol Engine RCGF20SE
Brand: Stinger Engines
Part No: RCGF20SE
Expected Mon 16 Nov
Request Stock NotificationCustomers Also Buy
Popular with customers who buy products like the Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine
Description

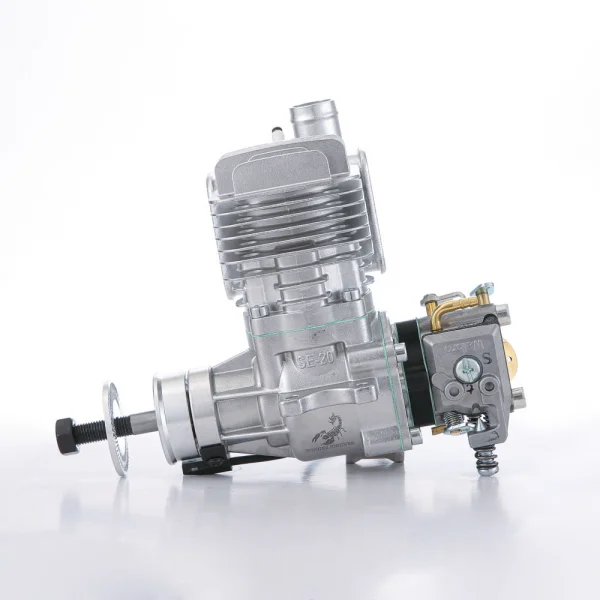

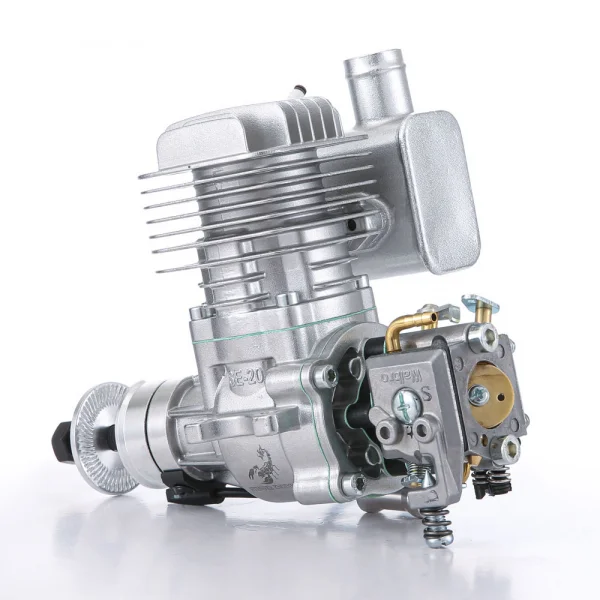

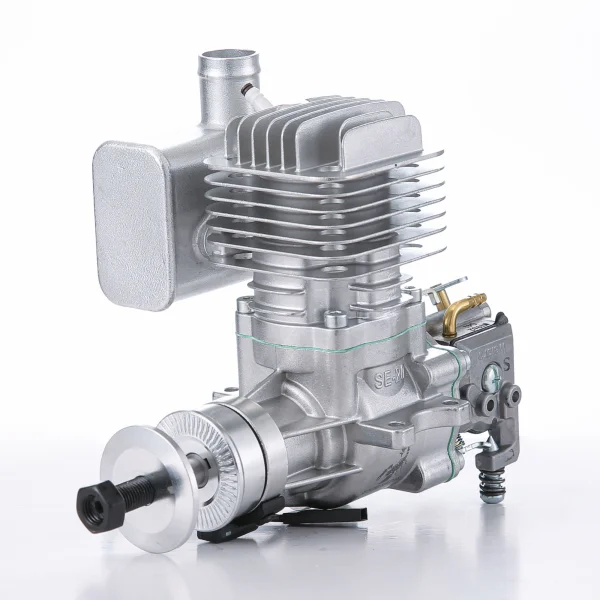

The Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine RCGF20SE is a petrol engine designed for radio-controlled aircraft. This compact 20cc single-cylinder unit uses a side-exhaust layout and a two-stroke operating cycle, offering an alternative to traditional glow-powered aircraft engines. Its design combines an aluminium alloy crankcase with a tougher crank system and bearings selected for regular use.
The engine is supplied with an electronic CDI ignition unit, spark plug, muffler, gasket and bolt set, throttle arm extension, engine bearer set and instruction manual. A 6–14V ignition battery is required for operation, along with a suitable propeller. Suggested propeller options include 14x10, 15x8, 16x6, 16x8 and 17x6 inches.
The 32mm cylinder bore and 24mm stroke produce a 20cc displacement. The engine uses petrol mixed with oil at a 30:1 ratio and develops a stated static thrust of 14.2lb. Its quoted 798g weight includes the muffler and CDI unit, making the listed figure useful when planning an aircraft installation. The supplied spark plug specification is M8 1/4-32.
Features
Stinger Engines has developed the RCGF20SE as a purpose-designed petrol two-stroke for aircraft use. The construction reflects the manufacturer’s focus on service life, with revised internal parts, a strengthened crank system and an aluminium alloy case. Petrol operation can provide an alternative power arrangement for pilots moving away from glow systems, while the included CDI unit provides the electronic ignition component required by the engine.
Specifications
- Displacement: 20cc
- Weight including muffler and CDI: 798g
- Fuel: Petrol
- Petrol-to-oil mix: 30:1
- Static thrust: 14.2lb
- Spark plug: M8 1/4-32
What's included:
- Stinger 20cc single-cylinder engine
- Electronic CDI unit
- Spark plug
- Muffler
- Gasket and bolt set
- Throttle arm extension
- Engine bearer set
- Instruction manual
Required to complete:
- Suitable 14x10, 15x8, 16x6, 16x8 or 17x6-inch propeller
- 6–14V ignition battery
Secured by Stripe
Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class RCGF s compact Stinger 20cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 20 |
| Bore (mm): | 32 |
| Stroke (mm): | 24 |
| Weight (g): | 798 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 30:1 |
| Static thrust (lb): | 14.2 |
| Spark plug: | M8 1/4-32 |
Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Key Features:
- One of the strongest and most powerful engines in its class RCGF s compact Stinger 20cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 20 Bore (mm): 32 Stroke (mm): 24 Weight (g): 798 Fuel: Petrol Petrol / Oil mix: 30:1 Static thrust (lb): 14.2 Spark plug: M8 1/4-32
What's in the Box:
- 1x Stinger 20cc Single.
- 1x Electronic CDI unit.
- 1x Spark plug.
- 1x Muffler.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Engine bearer set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 14x10, 15x8, 16x6, 16x8 or 17x6" propeller.
- 1x Ignition battery (6 – 14V).
Stinger Engines 20cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine Tech Specs:
- Weight: 798 (inc. muffler and CDI)g / 28.15oz
- Shipping Weight: 1.33kg / 2.93lbs
- Application: Aircraft
- Displacement: 20mm3
- Cylinder Bore: 32mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF20SE
- Barcode: 5051121256116
- Format: Petrol
