Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine
▶
Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine
Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine
Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine
Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine

Stinger Engines 20cc Twin Petrol Engine RCGF20T

Brand: Stinger Engines

Part No: RCGF20T

£386.99 RRP £429.99
UK Delivery
Get it by Tomorrow
Store Collection (Cannock)
Today, once stock arrives
Dates are supplied by the manufacturer. They are usually accurate, but they can move and are not guaranteed.
Pre-Order

Finance options available at checkout.

Fits These Models (1)

Show all 1 models

Popular with customers who buy products like the Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine

Description

Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine, part number RCGF20T, is a twin-cylinder petrol power unit for radio-controlled aircraft. Its 20cc two-stroke configuration provides a petrol alternative to traditional glow engines, with a compact layout intended for model aircraft installations.

Features

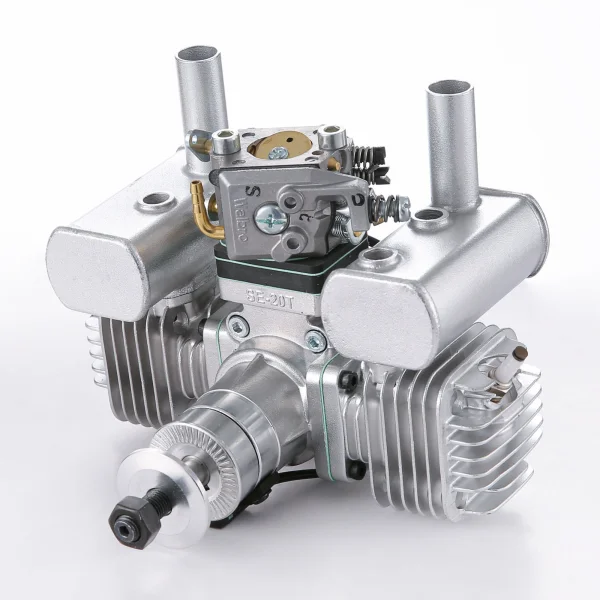

The engine uses a Walbro carburettor and an auto-advance electronic ignition system. It operates across a 1500 to 8600rpm range and is intended for propellers from 15x8 to 17x6 inches. The recommended fuel mixture is 30:1 petrol to oil. Twin mufflers are included, while the ignition system is designed for straightforward starting and operation with a suitable ignition battery.

The engine has a 20cc displacement, a 27.6mm bore and a 17mm stroke. Its listed weight is 920g including the mufflers and CDI unit, and its static thrust is 14.1lb. The crank system, bearings and aluminium alloy case are designed as part of the engine's revised construction. It uses 1/4-32 spark plugs and is supplied with the components needed to install the ignition and exhaust equipment.

What's Included

  • Stinger 20cc twin-cylinder engine
  • Electronic CDI unit
  • Two spark plugs
  • Two mufflers
  • Two muffler extension pipes
  • Gasket and bolt set
  • Throttle arm extension
  • Instruction manual

Required to Complete

  • 15x8, 16x8 or 17x6 inch propeller
  • Ignition battery suitable for 6 to 8.4V NiMH, 6.6V LiFe or 7.4V LiPo
Secure Payments

Secured by Stripe

Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine Manuals & Guides

Manuals & Guides

Specifications

One of the strongest and most powerful engines in its class RCGF s compact 20cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.

Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.

Specification:

Displacement (cc): 20
Bore (mm): 27.6
Stroke (mm): 17
Weight (g): 920
Fuel: Petrol
Petrol / Oil mix: 30:1
Static thrust (lb): 14.1
Spark plug: 1/4-32

Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:

Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine Key Features:

  • One of the strongest and most powerful engines in its class RCGF s compact 20cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.

    Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.

    Specification:

    Displacement (cc): 20
    Bore (mm): 27.6
    Stroke (mm): 17
    Weight (g): 920
    Fuel: Petrol
    Petrol / Oil mix: 30:1
    Static thrust (lb): 14.1
    Spark plug: 1/4-32
  • Walbro carburettor.
  • Powerful 20cc (1.25cu in.) displacement.
  • 1500 to 8600rpm range.
  • 15x8 to 17x6" propeller range.
  • Uses 30:1 (recommended) pre-mixed fuel.
  • Auto advance electronic ignition system.
  • Easy starting.
  • Twin mufflers.
  • Includes CDI unit, mufflers and spark plugs.
  • 920g (inc. mufflers and CDI unit)

What's in the Box:

  • 1x Stinger 20cc twin.
  • 1x Electronic CDI unit.
  • 2x Spark plugs.
  • 2x Mufflers.
  • 2x Muffler extension pipes.
  • 1x Gasket and bolt set.
  • 1x Throttle arm extension.
  • 1x Comprehensive instruction manual.

Needed to Complete:

  • 1x 15x8, 16x8 or 17x6" propeller.
  • 1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).

Stinger Engines 20cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:

  • Weight: 920g / 32.45oz
  • Shipping Weight: 1.61kg / 3.55lbs
  • Application: Aircraft
  • Displacement: 20mm3
  • Cylinder Bore: 27.6mm
  • Experience Level: Experienced
  • Recommended Usage Environment: Outdoors / designated model flying site
  • Material: Aluminium


    Key Info:
    • Brand: Stinger Engines
    • Part No: RCGF20T
    • Barcode: 5051121256123
    • Format:
      • Multi Cylinder
      • Petrol
    • Fitment: Option Part

    Delivery & Returns

    Free Shipping

    This item is over £100, so qualifies for free standard UK shipping!

    Express Shipping

    Upgrade to next day from £3

    Worldwide Shipping

    Available at checkout

    Customer Reviews

    No specific product reviews yet, why not write one?
    Write a Review
    All reviews are subject to moderation

    Questions & Answers

    Real questions from real customers. Why not ask your own?
    What are the dimensions. In millimeters please. Garth
    Garth Taylor / 26th June 2022

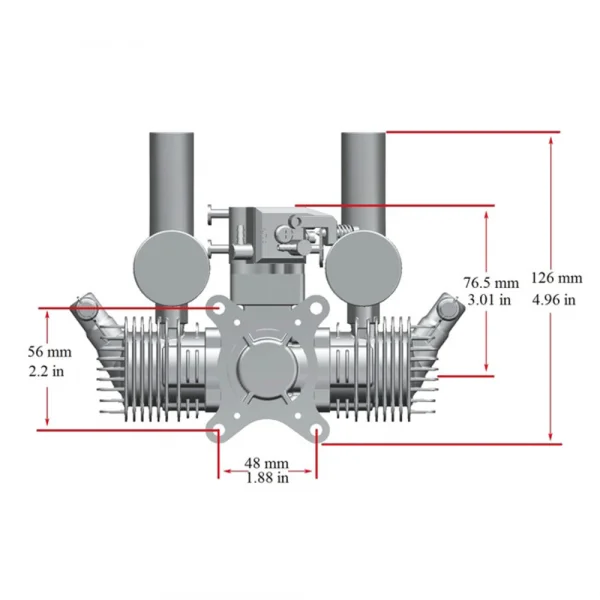

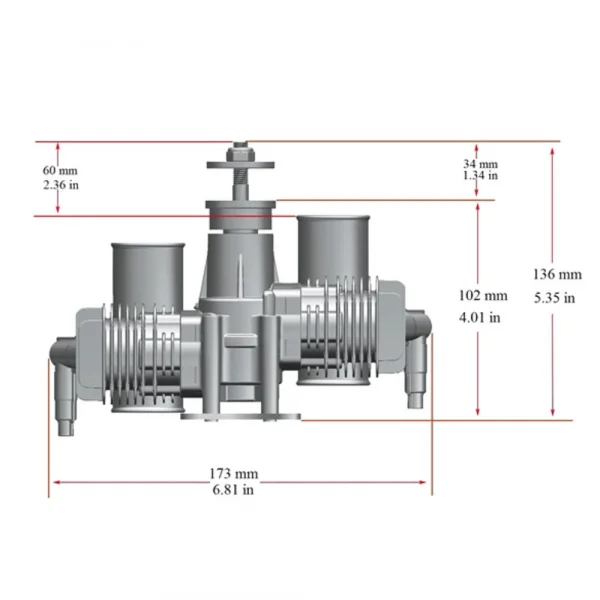

    The overall sizes are



    173mm  top of head to top of head

    136mm from back of case to tip of crank

    Si @ Wheelspin Models
