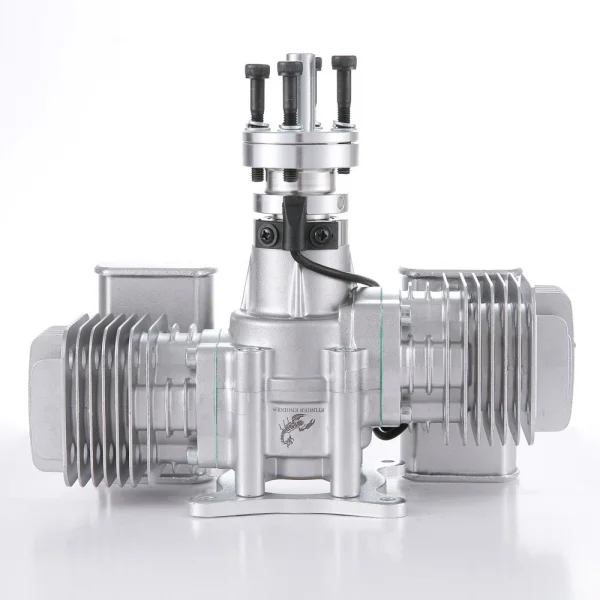

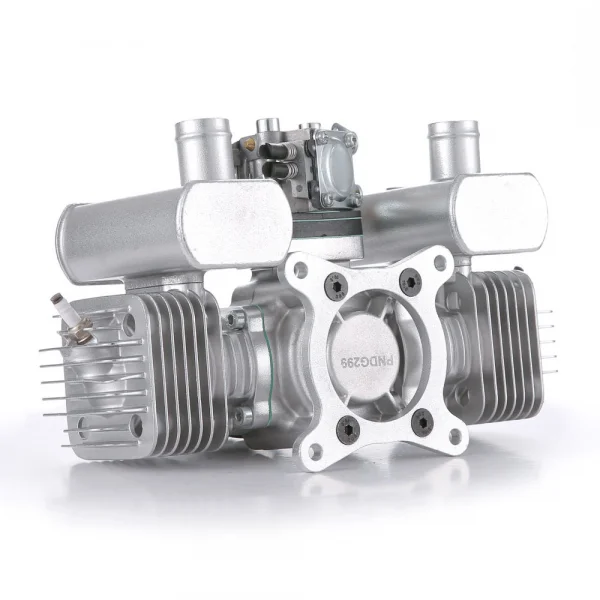

Stinger Engines 40cc Twin 2-Stroke Petrol Engine RCGF40TS
Brand: Stinger Engines
Part No: RCGF40TS
Expected Mon 16 Nov
Request Stock NotificationCustomers Also Buy
Popular with customers who buy products like the Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine
Description
The Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine, part number RCGF40TS, is a 40cc twin-cylinder petrol engine for radio-controlled aircraft. It uses a two-stroke design, petrol fuel and a 30:1 recommended petrol-to-oil mix. For suggested compatibility, the manufacturer identifies this engine for aircraft and designated model flying sites.
The engine uses a Walbro carburettor and an auto-advance electronic ignition system. Its stated operating range is 1,500 to 8,600 rpm, while the suggested propeller range covers 19x8, 19x10, 20x8 and 20x10 inch propellers. Static thrust is listed as 23.4 lb. The aluminium alloy case, twin mufflers and two spark plugs form part of the engine installation, with a separate ignition battery required for operation.
The supplied electronic CDI unit provides the ignition system, and the included gasket and bolt set, throttle arm extension and muffler extension pipes support installation. The engine has a listed weight of 1,323g, with a 32mm cylinder bore and 26mm stroke. Check the airframe, propeller and radio equipment requirements before installation.
What's Included
- Stinger 40cc twin engine
- Electronic CDI unit
- Two spark plugs
- Two mufflers
- Two muffler extension pipes
- Gasket and bolt set
- Throttle arm extension
- Instruction manual
Required to Complete
- One 19x8, 19x10, 20x8 or 20x10 inch propeller
- One ignition battery: 6-8.4V NiMH, 6.6V LiFe or 7.4V LiPo
Specifications
- Displacement: 40cc
- Cylinder bore: 32mm
- Stroke: 26mm
- Weight: 1,323g
- Petrol-to-oil mix: 30:1
- Static thrust: 23.4 lb
Secured by Stripe
Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class, RCGF s compact 40cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 40 |
| Bore (mm): | 32 |
| Stroke (mm): | 26 |
| Weight (g): | 1323 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 30:1 |
| Static thrust (lb): | 23.4 |
| Spark plug: | 1/4-32 |
Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:
Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine Key Features:
- One of the strongest and most powerful engines in its class, RCGF s compact 40cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 40 Bore (mm): 32 Stroke (mm): 26 Weight (g): 1323 Fuel: Petrol Petrol / Oil mix: 30:1 Static thrust (lb): 23.4 Spark plug: 1/4-32 - Walbro carburettor.
- Powerful 40cc (2.44cu in.) displacement.
- 1500 to 8600rpm range
- 19x8 to 20x10" propeller range.
- Uses 30:1 (recommended) pre-mixed fuel.
- Auto advance electronic ignition system.
- Easy starting.
- Twin mufflers.
- Includes CDI unit, mufflers and spark plugs.
- 1323g
What's in the Box:
- 1x Stinger 40cc twin.
- 1x Electronic CDI unit.
- 2x Spark plugs.
- 2x Mufflers.
- 2x Muffler extension pipes.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 19x8, 19x10, 20x8 or 20x10" propeller.
- 1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).
Stinger Engines 40cc Twin Cylinder 2-Stroke Petrol Engine Tech Specs:
- Weight: 1323g / 46.67oz
- Shipping Weight: 1.99kg / 4.39lbs
- Application: Aircraft
- Displacement: 40mm3
- Cylinder Bore: 32mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors / designated model flying site
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF40TS
- Barcode: 5051121256185
- Format:
• Multi Cylinder
• Petrol
