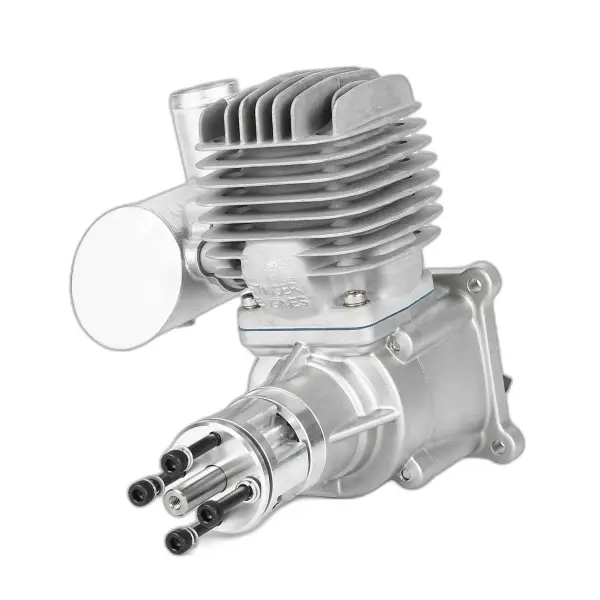

Stinger Engines 63cc Petrol 2-Stroke Engine RCGF63SE
Brand: Stinger Engines
Part No: RCGF63SE
Usually ships next day
Fits These Models (1)
Show all 1 modelsCustomers Also Buy
Popular with customers who buy products like the Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine
Description

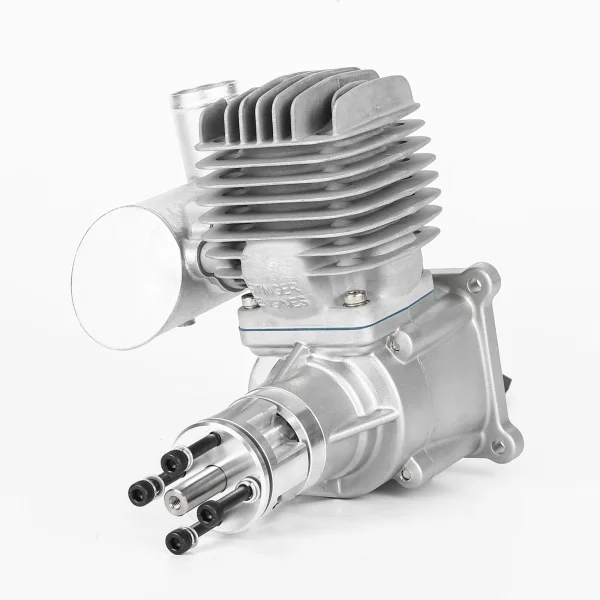

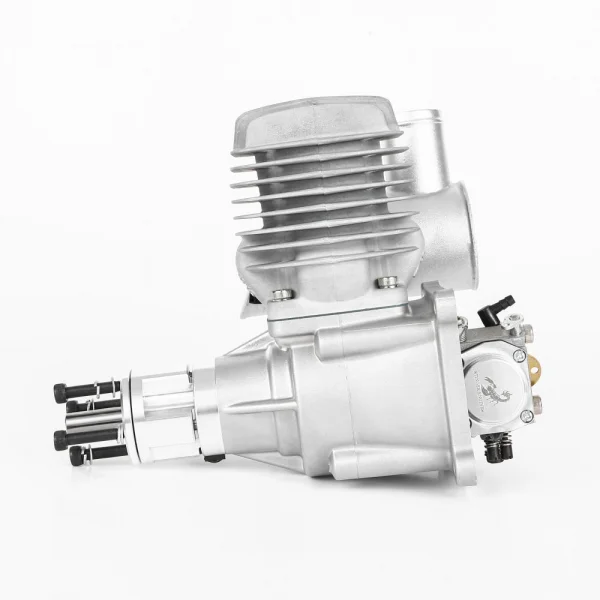

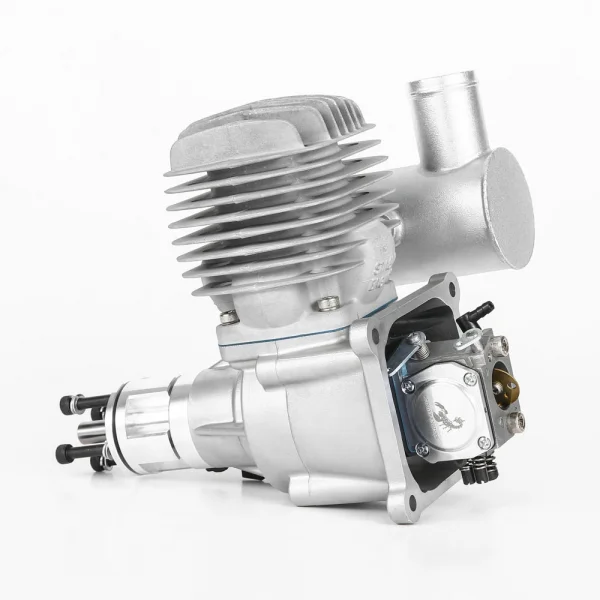

The Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine, part number RCGF63SE, is a petrol engine designed for model aircraft. Its single-cylinder two-stroke configuration uses a 63cc displacement and side exhaust layout, with a Walbro carburettor and auto-advance electronic ignition system. The engine is built around a tougher crank system, bearings and an aluminium alloy case for model aircraft operation.
The RCGF63SE develops a maximum output of 6.5 hp and operates across a stated 1,600 to 8,900 rpm range. It uses a 40:1 petrol-to-synthetic-oil mixture and is intended for propellers in the 24x8 to 25x8 inch range. The supplied NGK CM6 spark plug works with the included CDI ignition unit, while the muffler is included for the side-exhaust installation.
Specifications
- Displacement: 63cc
- Bore: 47mm
- Stroke: 30mm
- Weight: 1,701g including muffler and CDI
- Maximum output: 6.5 hp

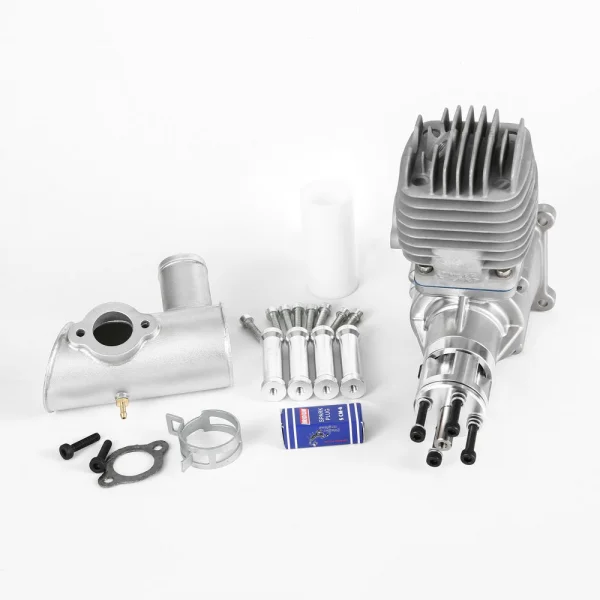

What's Included
- Stinger 63cc single-cylinder engine
- Electronic CDI unit
- NGK CM6 spark plug
- Muffler
- Gasket and bolt set
- Throttle arm extension
- Engine stand-off set
- Instruction manual
Required to Complete
Suggested operating equipment includes a suitable 24x8, 24x9, 24x10 or 25x8 inch propeller and an ignition battery. The stated compatible battery options are a 6–8.4V NiMH, 6.6V LiFe or 7.4V LiPo pack.
Secured by Stripe
Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine Manuals & Guides
Manuals & Guides
Specifications
One of the strongest and most powerful engines in its class RCGF s compact Stinger 63cc SE has been built to offer years of trouble-free service. Engineered specifically for model aircraft use, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system, allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
| Displacement (cc): | 63 |
| Bore (mm): | 47 |
| Stroke (mm): | 30 |
| Weight (g): | 1701 |
| Fuel: | Petrol |
| Petrol / Oil mix: | 40:1 |
| Max output (hp): | 6.5 |
| Spark plug: | NGK CM6 |
Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine Tech Specs:
Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine Key Features:
- One of the strongest and most powerful engines in its class RCGF s compact Stinger 63cc SE has been built to offer years of trouble-free service. Engineered specifically for model aircraft use, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system, allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.
Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.
Specification:
Displacement (cc): 63 Bore (mm): 47 Stroke (mm): 30 Weight (g): 1701 Fuel: Petrol Petrol / Oil mix: 40:1 Max output (hp): 6.5 Spark plug: NGK CM6 - Walbro carburettor.
- Powerful 63cc (3.85cu in.) displacement.
- 1600 to 8900rpm range.
- 24x8 to 25x8" propeller range.
- Uses 40:1 synthetic oil mix.
- Auto advance electronic ignition system.
- Easy starting.
- Includes CDI unit, muffler and spark plug.
- 1701g (inc. muffler and CDI).
What's in the Box:
- 1x Stinger 63cc Single.
- 1x Electronic CDI unit.
- 1x Spark plug.
- 1x Muffler.
- 1x Gasket and bolt set.
- 1x Throttle arm extension.
- 1x Engine stand-off set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 24x8, 24x9 24x10 or 25x8" prop.
- 1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).
Stinger Engines 63cc Petrol 2-Stroke Single Cylinder Side Exhaust Engine Tech Specs:
- Shipping Weight: 3.00kg / 6.62lbs
- Application: Aircraft
- Displacement: 63mm3
- Cylinder Bore: 47mm
- Experience Level: Experienced
- Recommended Usage Environment: Outdoors / designated model flying site
- Material: Aluminium
Key Info:
- Brand: Stinger Engines
- Part No: RCGF63SE
- Barcode: 5051121265934
- Fitment: Option Part
- Format: Petrol
