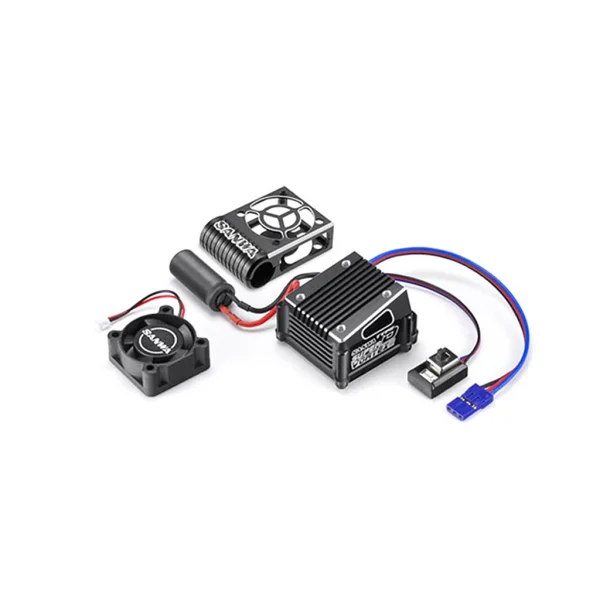

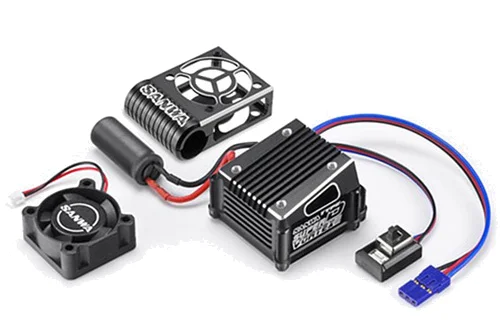

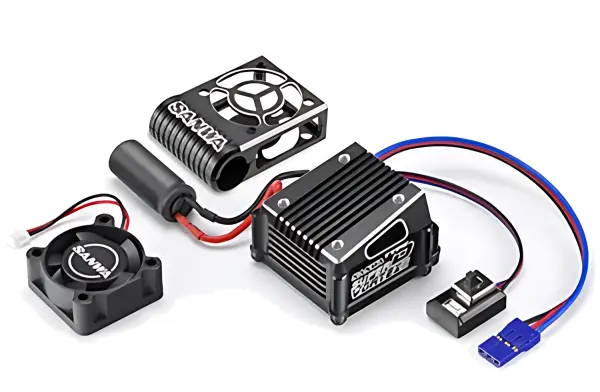

Super Vortex Type-D ESC

The Sanwa Super Vortex Type-D ESC (SCH-SA107A54253A) is engineered for drift control, delivering precise throttle modulation and realistic behaviour. A dedicated revolution limiter activates at a set RPM, creating a distinctive limiter sound and helping maintain consistent slides. Sanwa’s Active Throttle function refines wheel spin management, while transmitter-based adjustment offers 100-step throttle response for smooth, predictable control even at low speed.

Key Features

• Revolution limiter function for realistic limiter sound and set-RPM control
• Active Throttle to finely manage wheel spin and enhance drift slide control
• Throttle response adjustable in 100 steps from the transmitter (TX)
• 8 program modes for comprehensive setup options
• Back cancel function
• Boost Zero displaying function
• SSR/SHR/NOR automated recognition & displaying
• Adjustable Neutral Brake rate, Drive feel, Neutral Brake feel and Brake feel
• Boost timing (advanced timing)
• SSL function

Specifications

• Nominal input voltage: 3.7–7.4V
• Rated current: 740A
• Dimensions: 32.0 × 35.5 × 24.1 mm
• Total weight: 38.4 g

Designed for drivers seeking high stability and refined slide control, the Super Vortex Type-D pairs responsive feel with rich tuning options to help extract consistent drift performance.
