Tamiya Saint Dragon 4WD (2021)

Enter...

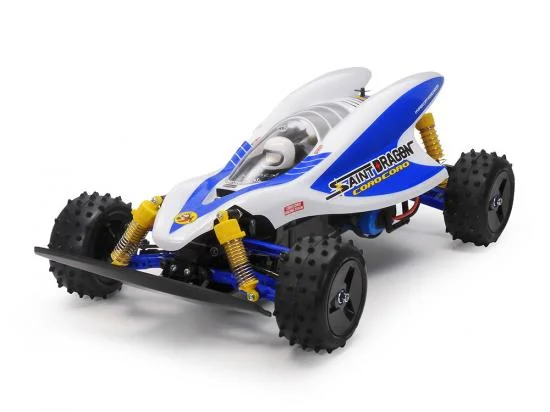

This R/C assembly kit recreates the 4WD buggy Saint Dragon which was the main model of a popular 1980s Japanese comic. The chassis consists of a tough bathtub frame plus front and rear gearboxes with suspension attached. 4-wheel double wishbone suspension uses CVA oil dampers for a superior ride, and a front stabilizer for a firm setup. The stylish body is molded in polycarbonate and pre-painted white, just requiring application of stickers to finish it.

Efficient Shaft-Driven 4WD
The chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging drive. CVA oil dampers and a front stabilizer contribute further to an excellent drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation.

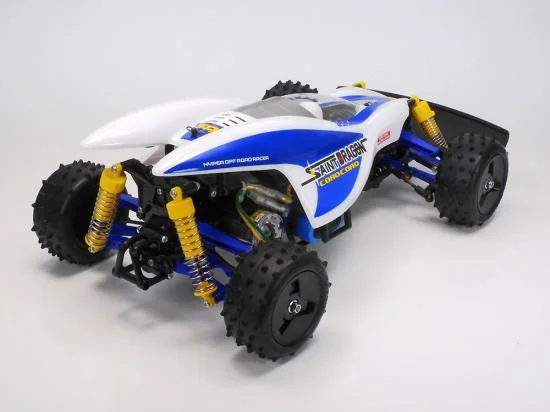

- The flowing, dynamic body lines are a real treat; it is pre-painted in white, and pre-cut, just requiring application of stickers.

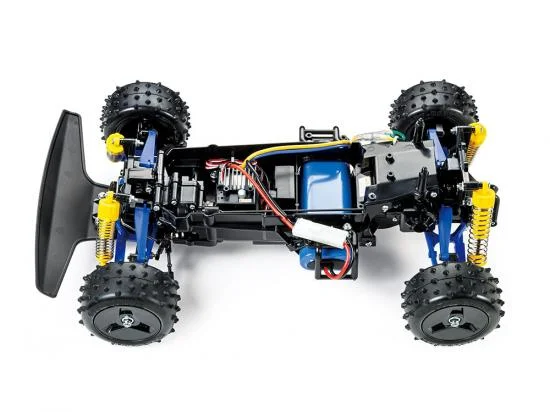

- A durable, easy-maintenance layout employs a bathtub frame with front and rear gearboxes screw-attached to it.

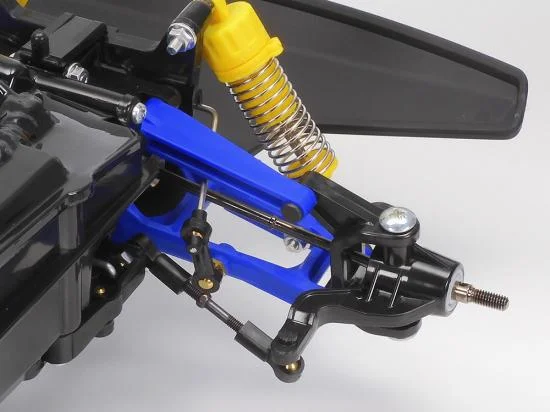

- Double-wishbone suspension features upper "I" and lower "H" arms, and employs a front stabilizer to minimize roll when cornering.

- CVA oil dampers give exemplary shock absorption that translates into a highly controllable drive.

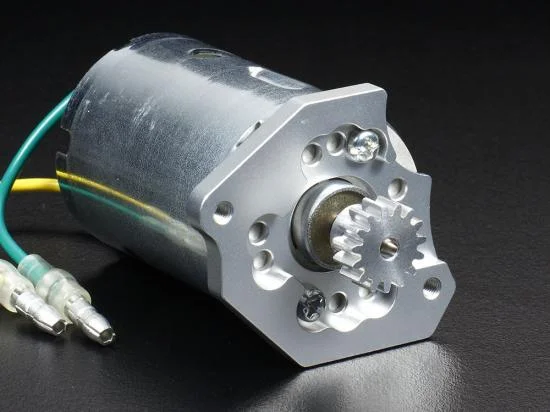

- An aluminum motor mount not only boosts the model's rigidity, it also helps with motor heat dissipation.

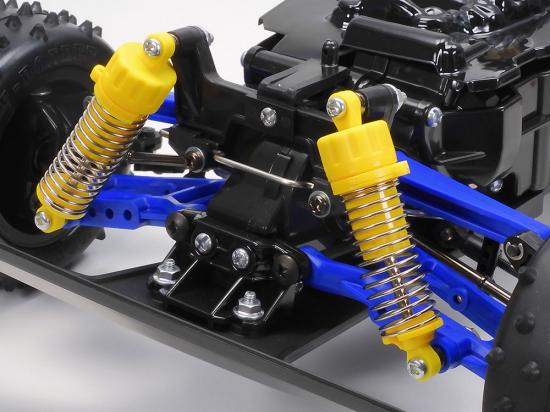

- This image is a close up on the CVA oil damper-fitted rear double wishbone suspension.


- Left: Dish wheels attract less mud when driving; they are paired with grippy spike tires.

- Right: The polycarbonate chassis cover includes a depiction of driver arms. The helmet is a separate part.

Specifications

- Length: 390mm, Width: 240mm, Height: 135mm
- Wheelbase: 260mm
- Minimum ground clearance: 23mm
- Tread: 203mm (front), 194mm (rear)
- Bathtub frame
- Tire width/diameter: 38/83mm (front and rear)
- Shaft-driven 4WD
- 3-bevel differential gears (front and rear)
- 3-piece steering tie-rod
- 4-wheel independent double wishbone suspension
- Gear ratio = 7.68:1
- Type 540 Motor
- Electronic Speed Controller (ESC) is sold separately.

Separately Required Items

- 2-channel R/C system w/ESC
- R6/AA/UM3 batteries for transmitter
- Battery pack & charger
