Team Associated FT 12mm V2 Shock Pistons 2mm 2x1.6mm AS91896
Brand: Associated
Part No: AS91896
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (8)
Associated A550 Rally Apex 2 RTR
Associated Datsun 240Z Apex 2 RTR
Associated Reflex 14R Hoonicorn Street Car - RTR
Team Associated B6 Builders Support Kit 2
Team Associated Reflex 14R Hoonitruck RTR
Team Associated ST550 Super Touring Apex 2 RTR
Associated B74.1D Team Kit
Team Associated RC10B6.3 Team Kit
Description

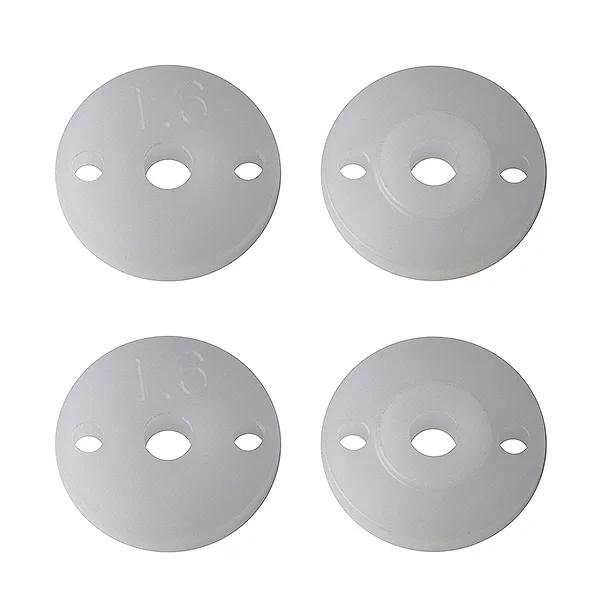

Team Associated Factory Team 12mm V2 Shock Pistons (2mm thickness, 2x1.6mm) offer a refined tuning option for off-road 12mm shocks. The thinner 2mm profile, with the same 2-hole valving as common kit parts, decreases damping and pack for faster fluid flow. The result is improved bump absorption, a more forgiving feel, and a small shift toward increased traction versus standard 2.5mm pistons.
Key Details
- 2mm thickness V2 pistons with 2x1.6mm, 2-hole valving
- Decreases pack for smoother handling over jumps and bumps
- Aids traction and can make the car feel less reactive
- Designed for 12mm off-road shocks
- Part number: AS91896
Suggested Compatibility
- RC10B74.1
- RC10B74.1D
- RC10B6.2
- RC10B6.2D
- RC10T6.2
- RC10SC6.2 (and older RC10B6 series models)
When To Use 2mm Pistons
- To increase grip on low-traction dirt tracks
- On high-traction tracks with bumps for a more forgiving feel
- With lightweight LCG batteries to calm responsiveness
Current Team Associated kits typically include 2.5mm thickness 2-hole pistons; use these as a baseline for comparison.
Pro Tip
Run shock oil +2.5wt to +5wt thicker (e.g. 30wt to 32.5wt or 35wt) with the 2mm pistons for confident bump handling while maintaining control.
Secured by Stripe
Team Associated FT 12mm V2 Shock Pistons 2mm 2X1.6mm Manuals & Guides
Specifications
Factory Team introduces a new tuning option for off-road 12mm shocks. The new 2mm thickness V2 shock pistons decrease damping and pack compared to their standard 2.5mm thickness kit counterparts. Keeping the same 2-hole valving, the shorter thickness piston allows for faster fluid flow, and less pack (pack = increased rate of resistance) while the shock takes fast impacts from jumps and bumps. This results in a small shift, giving the car more traction and less pack, which racers can tune for an advantage in a wide range of conditions.
Pro Tip: Adjust Team Associated shock oil +2.5wt up to +5wt thicker (ex: 30wt increase to 32.5wt OR 35wt). You can run the 2mm thickness pistons with a thicker oil, and it will still handle good in bumps.
Fits- RC10B74.1
- RC10B74.1D
- RC10B6.2
- RC10B6.2D
- RC10T6.2
- RC10SC6.2 (and older RC10B6 series models)
Some rule-of-thumb cases for using the 2mm thickness vs. 2.5mm thickness pistons:
Use optional 2mm thickness in cases where you want less pack, better bump handling, or slower responsiveness. Conditions to try:
- To increase grip on low-traction dirt tracks
- High-traction tracks with bumps or when you need a more forgiving overall feel
- Running lightweight LCG batteries (lower overall car weight) to make the car less responsive and easier to drive
Use standard 2.5mm thickness pistons for more pack, higher responsiveness, and a more responsive feel.
- Current Team Associated kits come with 2.5mm thickness 2-hole pistons -- use these as a baseline for comparison
Key Info:
- Brand: Associated
- Part No: AS91896
- Barcode: 784695918962
