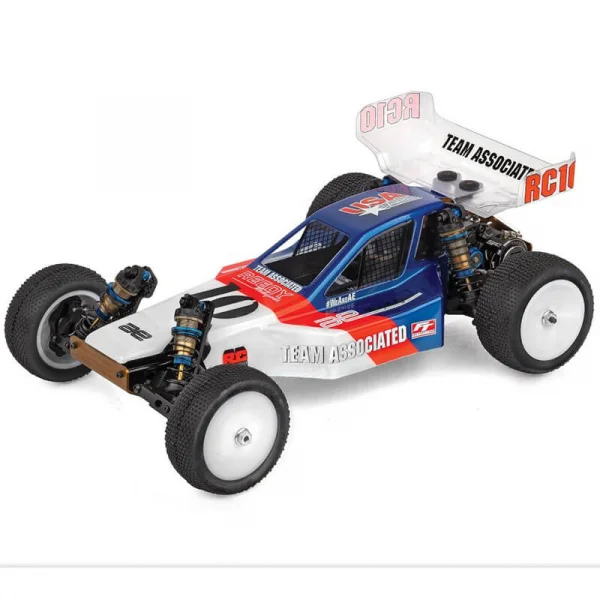

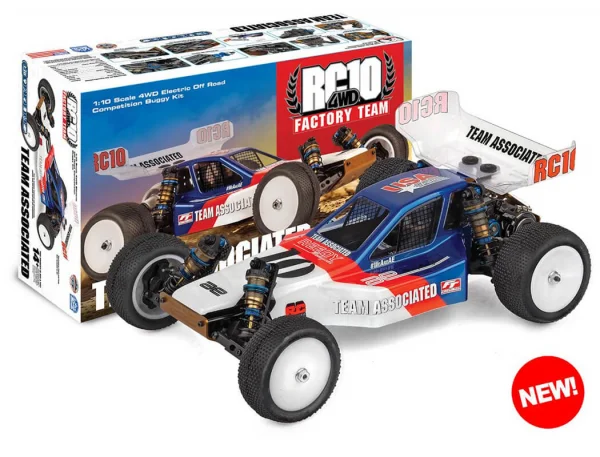

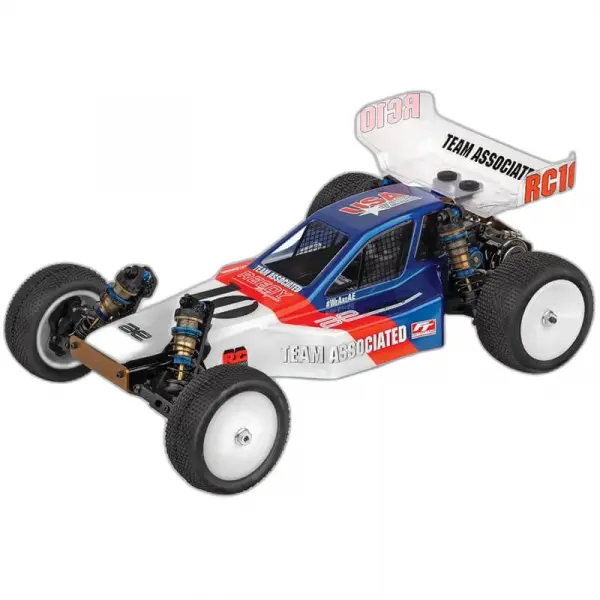

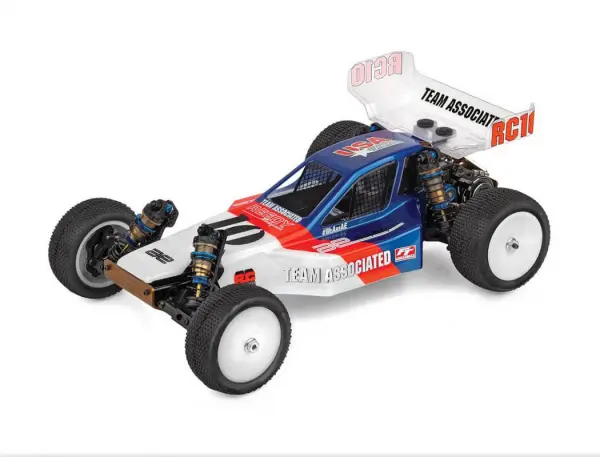

Team Associated RC10 4WD Factory Team Race Kit

The Team Associated RC10 4WD Factory Team Race Kit (AS6055) brings over four decades of RC10 racing heritage into the modern era. Developed by the AREA 51 Factory Team and engineered for victory, this 1:10 scale electric off-road buggy combines an iconic bronze anodised 6061-T6 aluminium monocoque tub chassis with Kashima-coated 13mm Big Bore shocks and low-CG carbon fibre towers for composed, high-grip handling on today’s tracks.

Race-proven front and rear Stealth transmissions, adjustable ball differentials, and the V2 slipper clutch deliver durable, tuneable power transfer. Precision bearings, HD metric hardware, and fully adjustable independent suspension support consistent performance, while the Mirage Pro clear body and B7 rear wing complete the factory-level package. All-black plastics, carbon fibre bracing, and B84 12mm hex white wheels underline the premium Factory Team finish.

This is a kit that requires full assembly by the user. Designed as a competition-focused 4WD buggy, it offers exceptional ground clearance, a low centre of gravity, and a modern geometry package ready for serious setup work.

Features

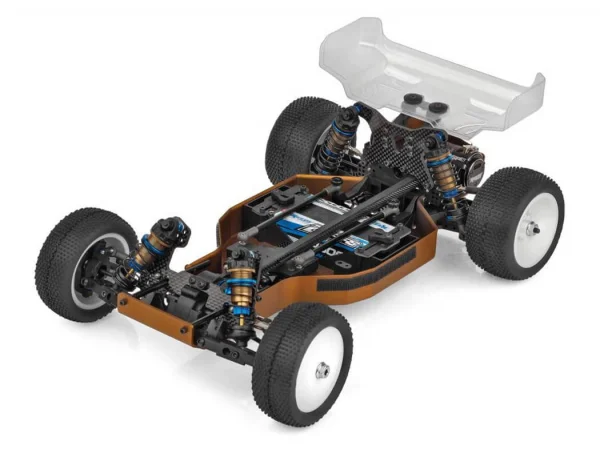

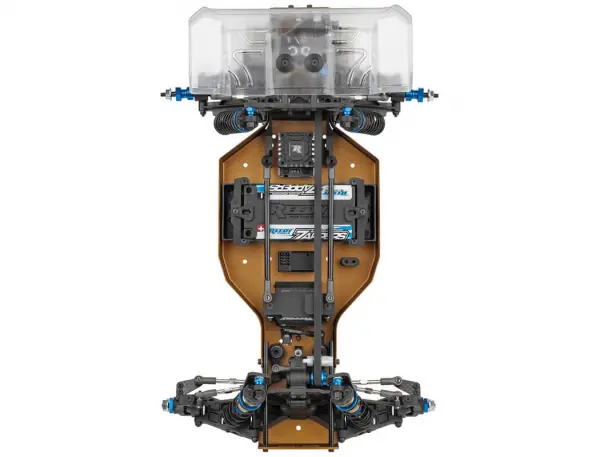

• Bronze anodised 6061-T6 aluminium monocoque 4WD tub chassis
• Bronze anodised nose plate and cut motor plate
• Exclusive black anodised nose tubes
• Black anodised aluminium chassis stiffeners
• Black anodised thumb nuts
• All-black plastics

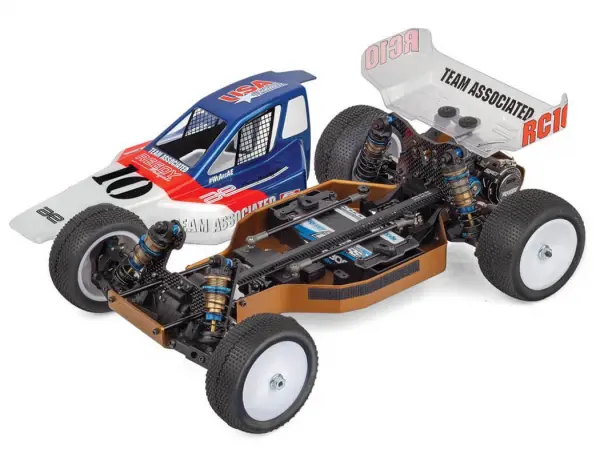

• New Mirage Pro clear Lexan body
• B7 rear wing included
• Factory Team captured hinge pins all around
• New carbon fibre steering plates

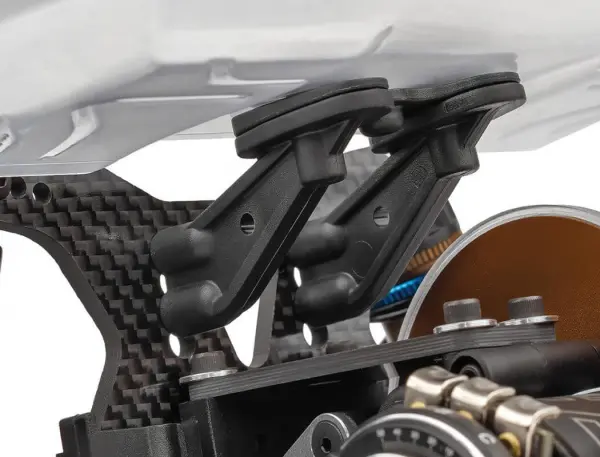

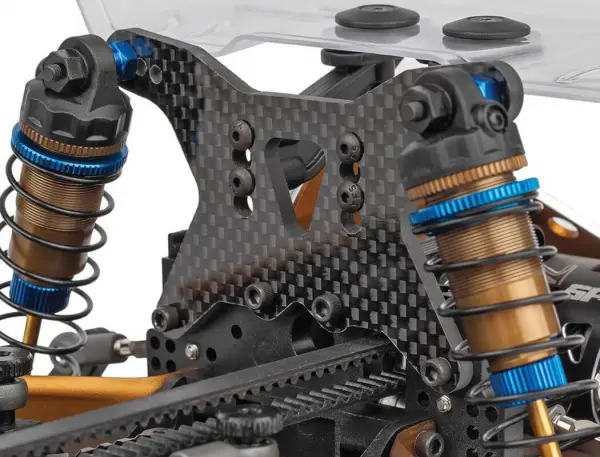

• New rear carbon fibre shock tower integrates B6 wing mount

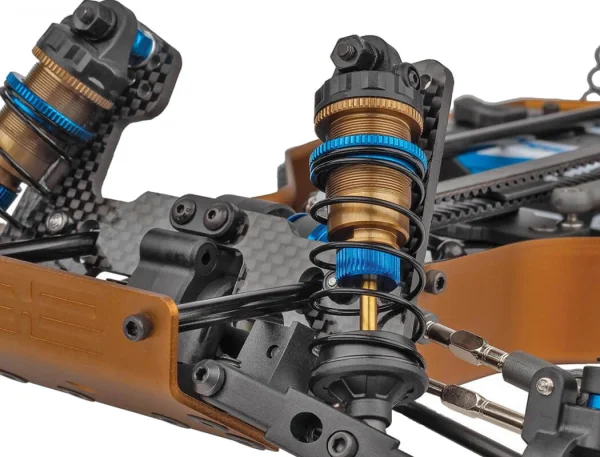

• Kashima-coated 13mm Big Bore Factory Team shocks included
• New lower-CG carbon fibre front and rear shock towers (Big Bore compliant)

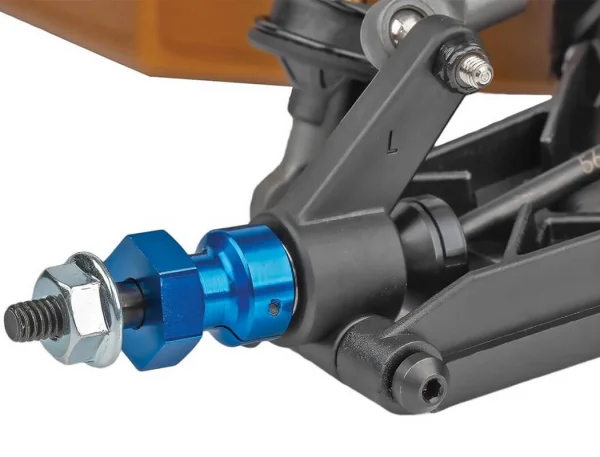

• Factory Team 12mm hex front axle and rear CVAs
• B84 12mm hex white wheels included

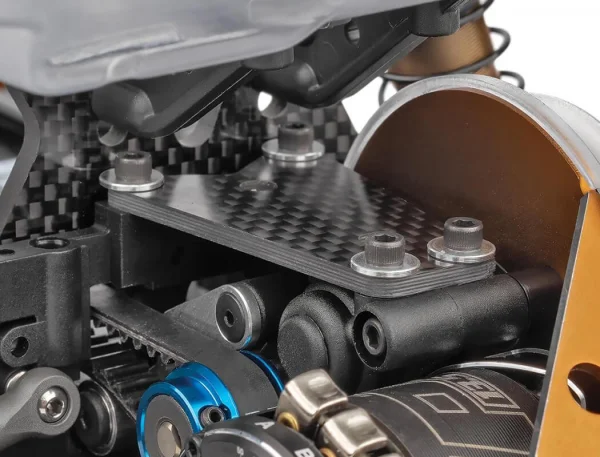

• Carbon fibre transmission brace

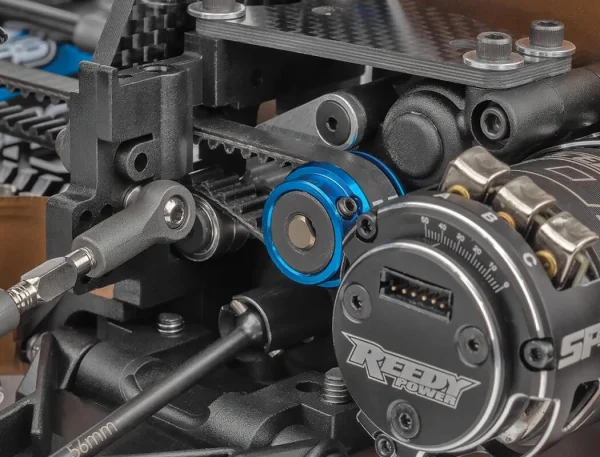

• CNC blue anodised pulley flanges
• New servo mount and belt guide system
• Fully adjustable four-wheel independent suspension

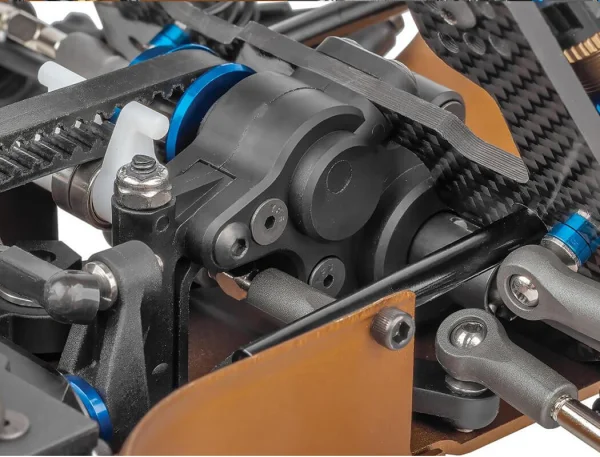

• Race-proven front and rear Stealth transmissions
• Adjustable ball differentials front and rear
• Exceptional ground clearance with low centre of gravity
• Precision bearings throughout

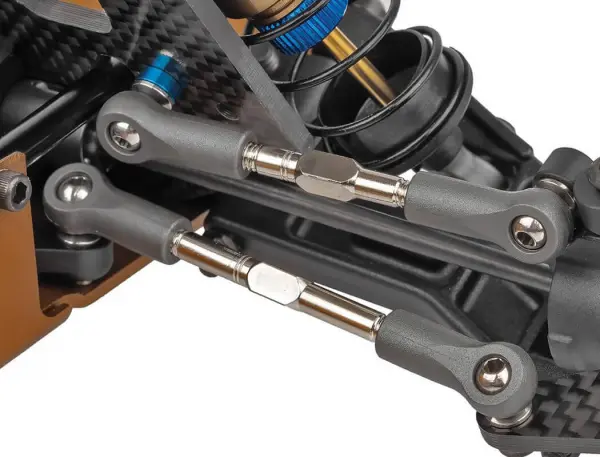

• Adjustable heavy-duty 3.5mm turnbuckles and ball cups all around

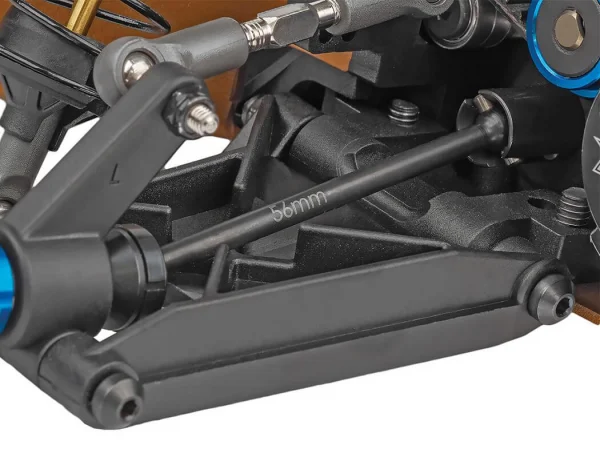

• Front and rear CVA driveshafts with 12mm hex front and rear

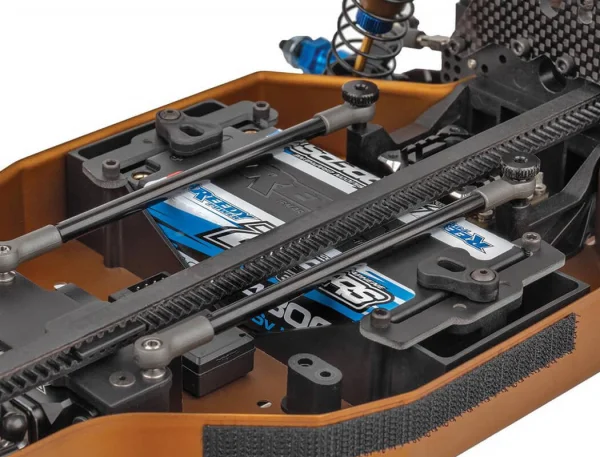

• Durable low-friction centre belt and tension system
• Long front arm geometry

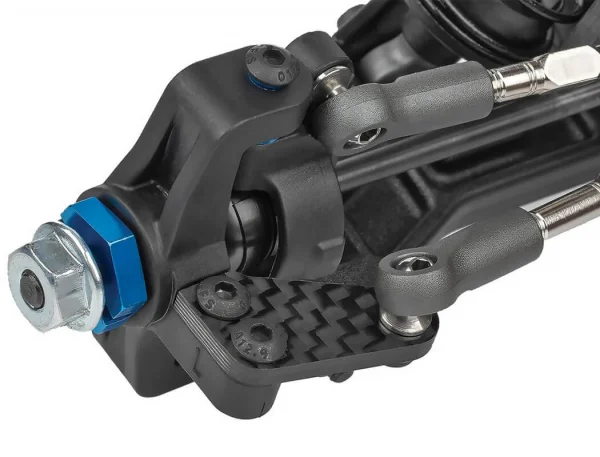

• New front caster and spindle assembly designed for the RC10 4WD
• Updated rear bulkhead and chassis stiffener
• HD metric ball studs throughout
• Race-proven V2 slipper clutch system
• All-new 4WD Worlds-style specific bell-crank system

Specifications

• Power Source: Electric
• Terrain: Off-road
• Body Style: Buggy
• Scale Size: 1:10
• Assembly Level: Kit

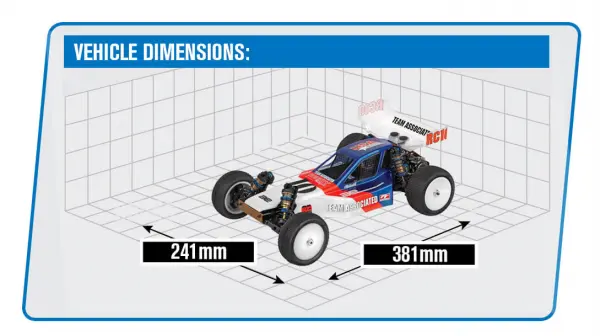

• Length: 381mm (15in)
• Width: 241mm (9.49in)
• Wheelbase: 273mm (10.75in)
• Weight: Varies
• Internal Gear Ratio: 2.6:1
• Drive: 4WD

This vehicle comes as a kit and must be fully assembled by the user.

Needed To Complete

• 1:10 scale 540-size electric RC car motor
• 1:10 scale radio control electronic speed control
• 7.4V–7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
• Battery charger
• 2-channel RC surface transmitter and its batteries
• Lexan specific spray paint for body
• Steering servo
