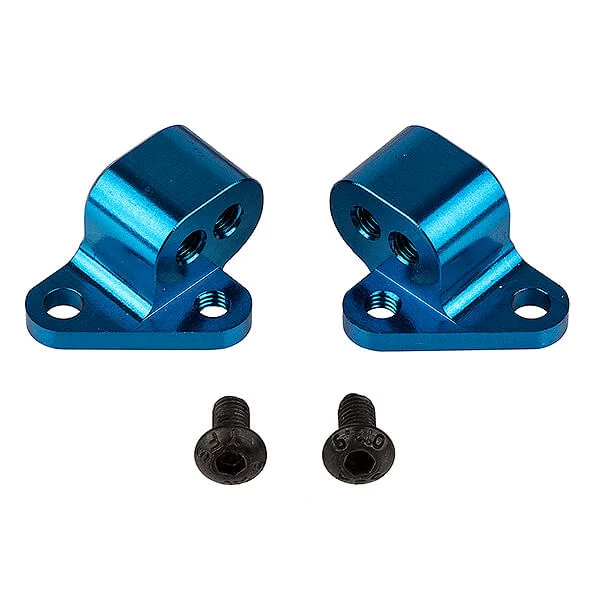

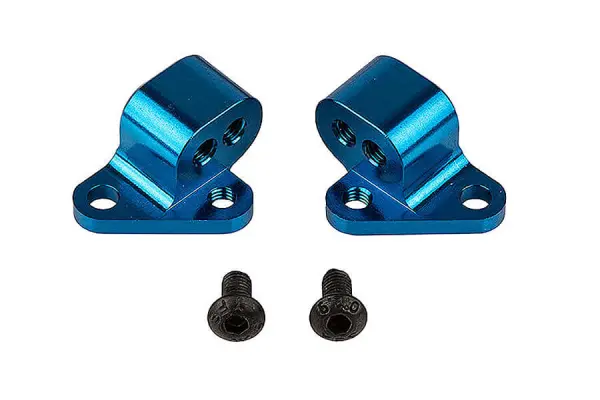

Team Associated RC10B74.2 FT Vertical Rear Ballstud Mount Set

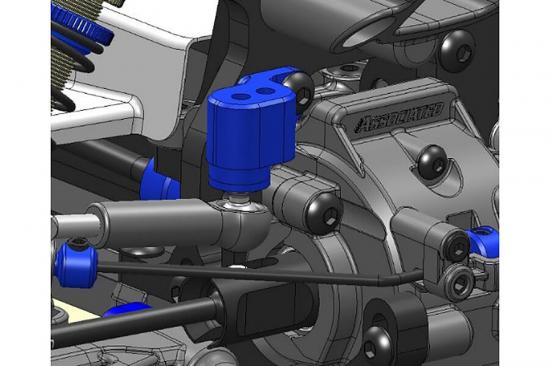

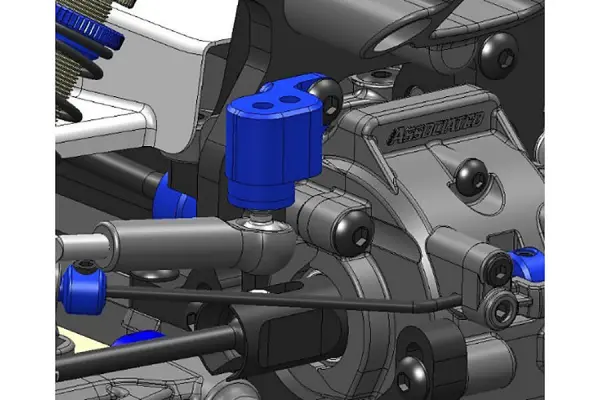

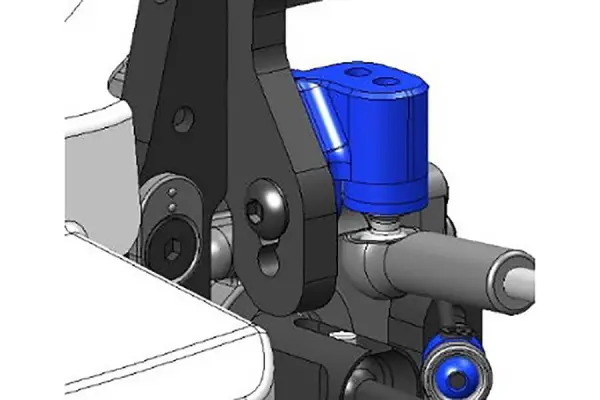

The Associated Factory Team Vertical Rear Ballstud Mount Set (AS92323) expands rear camber link adjustment on RC10B74-series buggies. It enables lower ballstud heights and a further outboard ballstud position to fine-tune roll centre and camber gain. Per the manufacturer, these mounts fit directly to the shock tower supplied in the RC10B74.1 kit. Suggested compatibility: RC10B74 series, including RC10B74.2.

Key Features

• Vertical ballstud mounts increase rear camber link tunability.
• Allows lower ballstud positions and a further outward ballstud location.
• Direct mounting to the RC10B74.1 kit tower (per manufacturer).
• Adjusts roll centre and camber gain for refined handling.

Setup Guidance

• Upper position on the current tower: not achievable with these mounts.
• Middle position: inner hole not achievable (ball cup interference); outer hole uses 0 mm washers above the ballstud.
• Lower position: inner and outer holes use 2.5 mm washers above the ballstud.
• Always check that camber links and ball cups clear the outdrives, dog bones and anti-roll bar when using lower-than-standard positions.
• Available adjustment range depends on factors such as differential height, hub height and link length.

Recommended Accessories

• AS31387 – Washers, 7.8x3.5x0.5 mm, blue aluminium
• AS31388 – Washers, 7.8x3.5x1.0 mm, blue aluminium
• AS31389 – Washers, 7.8x3.5x2.0 mm, blue aluminium
• AS91050 – Heavy-duty Ballstuds, 12 mm, long neck
