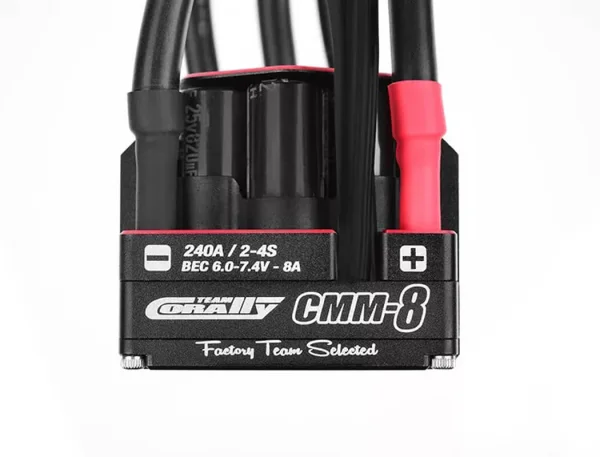

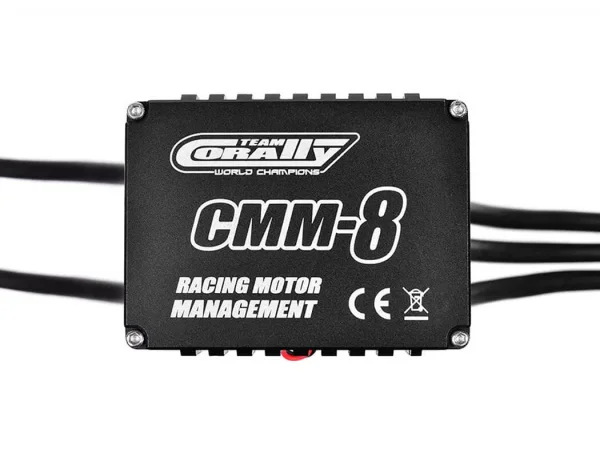

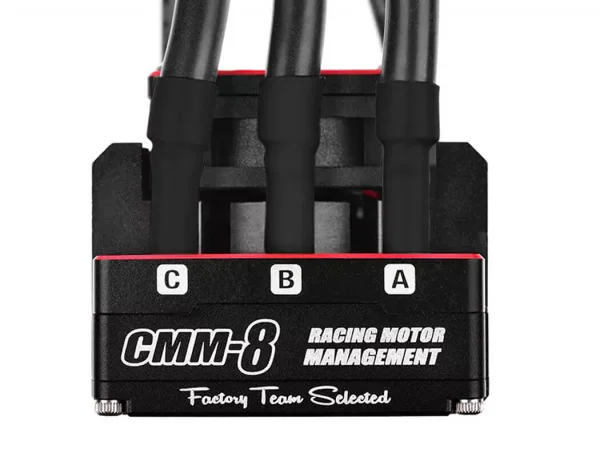

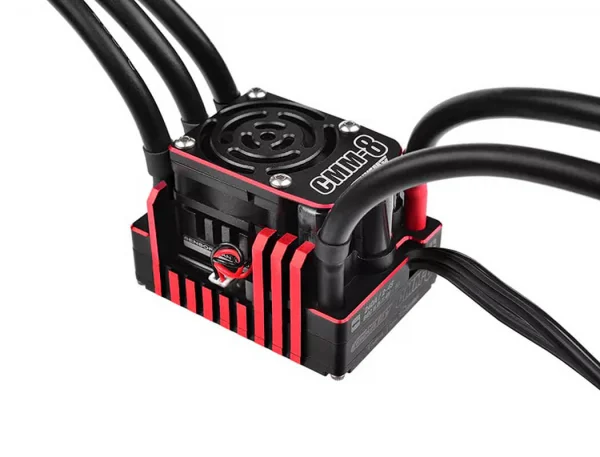

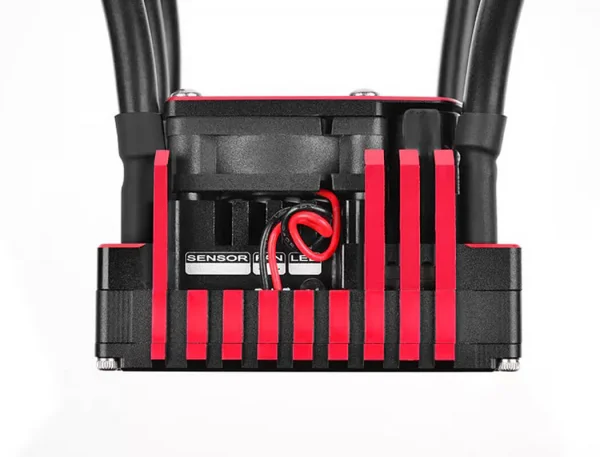

Team Corally CMM-8 Racing ESC Sensored 2-4S 240A Black/Red

Introducing the CMM-8 Racing Controller - 2-4S: Unleash the Power.

For top-level 1/8 racing, where speed and precision are everything, the CMM-8 Racing Controller - 2-4S is the key to unlocking your true potential on the track. Crafted with relentless attention to detail, this controller is designed to deliver unmatched performance when you need it most.

Pure Power, Uncompromising Performance.
With up to 240A continuous current and a staggering 1100A burst current, the CMM-8 Racing Controller - 2-4S is built to provide the power and reliability required for elite-level racing. It's your path to victory, and it doesn't compromise.

32-Bit MCU for Precision Control.
At its core, the CMM-8 features a high-performance 32-Bit Microcontroller Unit (MCU). This powerhouse provides superior processing capabilities, ensuring that your controller delivers accurate power output and lightning-fast response times.

Optimized Software for Dominant Racing.
Our software design is honed to perfection, offering enhanced throttle response, exceptional acceleration, linearity, and driveability. With the CMM-8, every twist of the throttle translates into pure precision.

Sensored and Sensorless Versatility.
The CMM-8 Racing Controller - 2-4S seamlessly accommodates both sensored and sensorless motors, allowing you to choose the power source that suits your style and strategy.

Revolutionary Remote Programming.

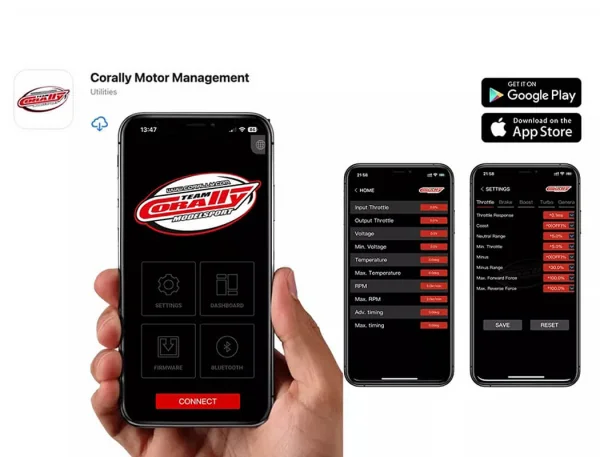

Enjoy unparalleled convenience with direct remote programming through the custom Corally iOS and Android App. All the communication devices are seamlessly integrated, allowing you to fine-tune your controller settings effortlessly.

Customise Your Racing Experience.
Multiple programmable parameters put you in control, letting you adjust your racing settings to perfection. Adapt to track conditions, driving styles, and competition with ease.

Real-Time Data at Your Fingertips.
Stay ahead of the competition with real-time data logging. Monitor crucial parameters such as temperature, voltage, timing, motor RPM, and more. This invaluable data empowers you to make informed decisions and optimise your racing strategy.

Reliability Built to Last.
Crafted with A-Grade components, the CMM-8 Racing Controller - 2-4S achieves super low Internal Resistance (IR) and delivers maximum performance consistently, propelling you to the front of the pack.

Built-In BEC for Ultimate Convenience.
Experience convenience like never before with the super built-in BEC, offering up to 15A boost current and switchable voltage between 6.0V and 7.4V. Your power needs are met with ease.

Safety is Paramount.
Multiple safety protections are integrated, including high voltage protection, low voltage cut-off protection, throttle signal loss protection, over-heat protection, and locked rotor protection. Your controller is designed to keep you safe and your equipment in top shape.

Compact and Efficient Design.

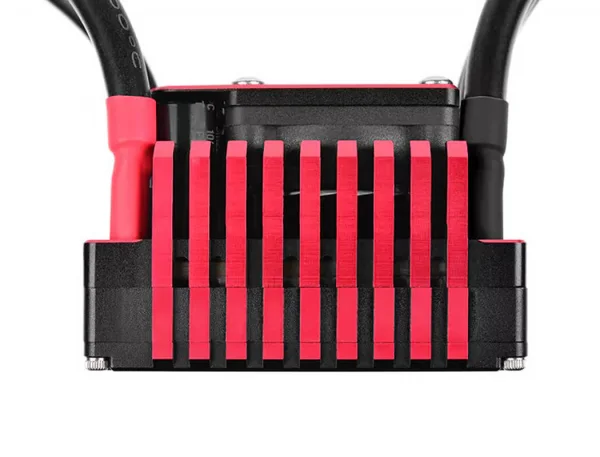

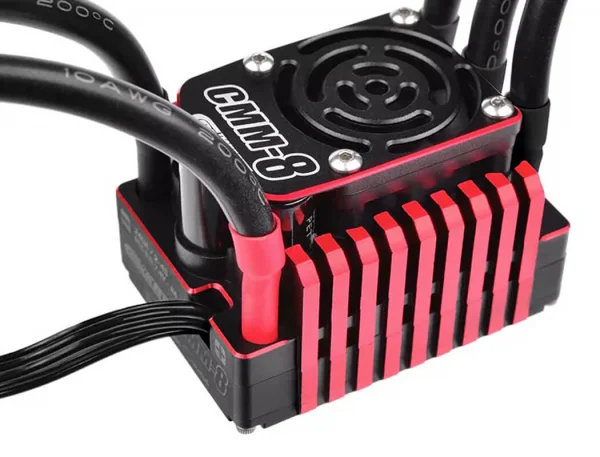

The ultra-compact design of the CMM-8 ensures it won't hinder your racing experience. Its full aluminum case is not just for aesthetics—it's engineered for maximum heat dissipation, ensuring optimal performance.

Ready for Any Challenge.

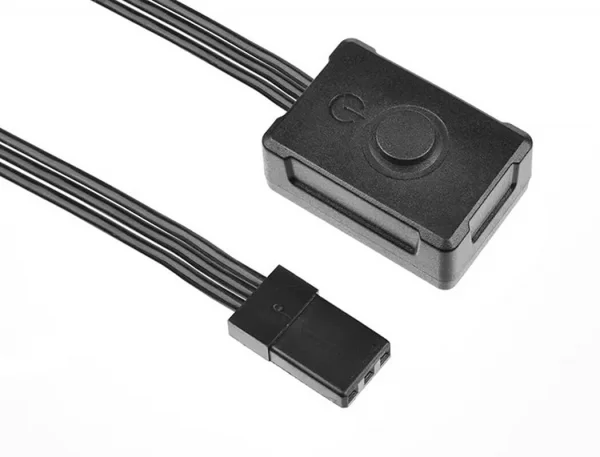

Racing doesn't always happen under ideal conditions. That's why the CMM-8 features a waterproof polymer-potted PCB and switch. Rain or shine, this controller is built to endure and excel.

The CMM-8 Racing Controller - 2-4S is your ultimate tool for domination on the track. Elevate your racing experience, gain the competitive edge, and make every race a victory with this exceptional racing controller. Step into the future of racing with Corally.

ESC- Input Voltage Range (V): 2S - 4S Li-Po
ESC - Current - Cont. (A): 240
ESC - Current - Burst (A): 1100
ESC - BEC - Voltage (V): Select. 6.0V - 7.4V
ESC - BEC - Cont. (A): 8
ESC - BEC - Peak (A): 12
ESC - Protection: Waterproof

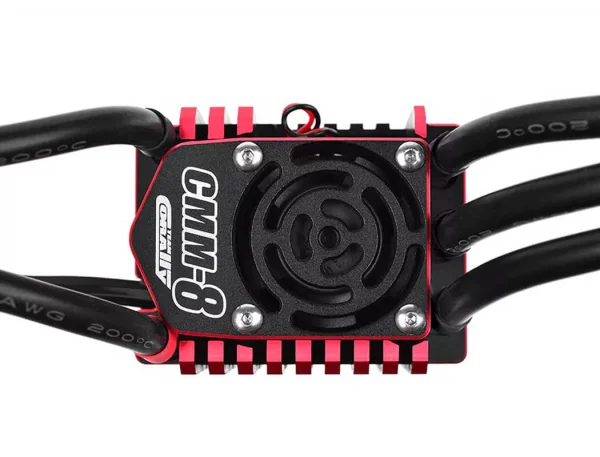

ESC - Cooling Fan: Yes, 30mm
ESC - Case Material: Full Aluminium
ESC - Programming
ESC - Firmware Update: Supported
ESC - Telemetrie Aux.: No
ESC - Data Logging: Yes, Real Time Data - Max Values
ESC - Real-Time Data:
- Voltage (V) (Current / Min.)
- Timing (deg) (Current / Max.)
- Temperature (°C) (Current / Max.)
- Throttle Status (%) (Input / Output)
- RPM (T/min)
- Current (A)
ESC - Dimensions
ESC - Length (mm): 55
ESC - Width (mm): 42
ESC - Thickness (mm): 36

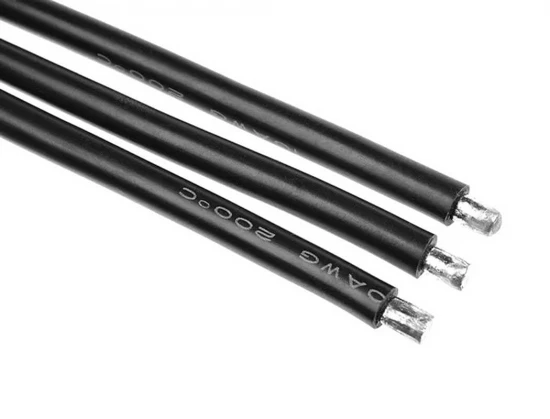

ESC - Wires (AWG) - Battery: 10 AWG
ESC - Wires (AWG) - Motor: 10 AWG
ESC - Connector - Battery: None
ESC - Weight (g): 155
ESC - Application: 1/8 Racing
ESC - Motor Type: Sensored & Sensorless Brushless Motors
ESC - Motor Control: Forward - Brake - Reverse (30%)
ESC - Level: Competition - High-End

Visit our ESC Compare Centre and find the ideal speed controller for your needs.

• Brand: Corally
• Part No: C-53020
• Barcode: 8718057221621
• Motor Type: Brushless
• LiPo Compatible: Yes
