Team Corally Ct2S 2-Channel 2.4Ghz Digital Radio Tx/Rx

The Team Corally CT2S 2-Channel 2.4GHz Digital Radio Tx/Rx (part number C-59066) combines the CT2S transmitter with the RS-424 receiver for reliable control of RC cars and boats. Delivering 2.4GHz GFSK modulation with an integrated antenna and essential adjustments, it offers straightforward setup and everyday usability.

Features

• 2-channel transmitter with 3-channel receiver
• Integrated 2.4GHz antenna
• Steering dual rate (D/R)
• Steering trim
• Steering and throttle reverse
• 50% or 100% throttle power function

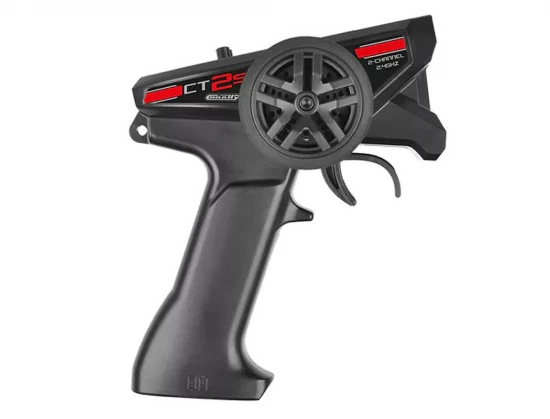

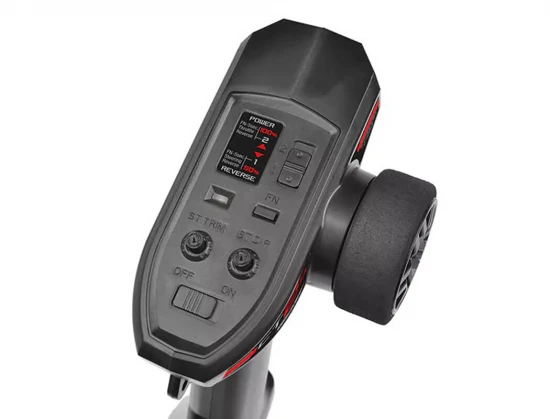

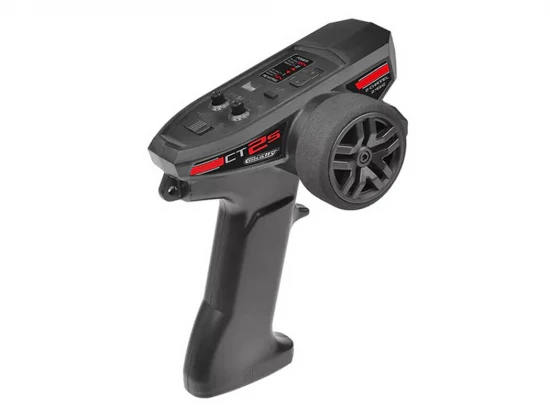

Transmitter CT2S Specifications

• Model type: Car/Boat
• RF power: <20 dBm
• Modulation: GFSK
• Sensitivity: 1024
• Low voltage warning: <4.5 V
• Power: 6 VDC (1.5V AA x4)
• Range: >200 m
• Weight: 250 g
• Dimensions: 160 x 150 x 90 mm
• Certificate: CE, FCC

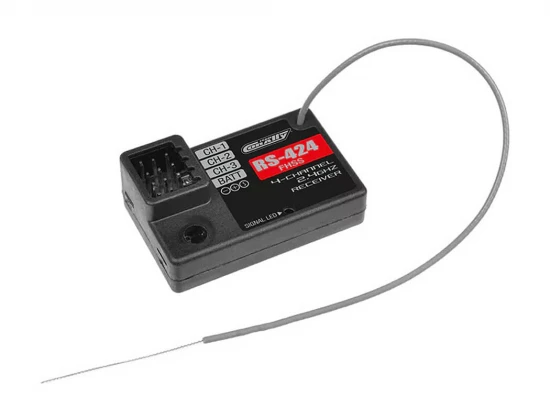

Receiver RS-424 Specifications

• Channels: 3
• Model type: Car/Boat
• Frequency band: 2.4 GHz
• Modulation: GFSK
• Sensitivity: 1024
• RF receiver sensitivity: -100 dBm
• Power: 4.5–7.2 VDC
• Weight: 7 g
• Antenna length: 106 mm
• Dimensions: 38 x 24 x 14 mm
• Certificate: CE, FCC
